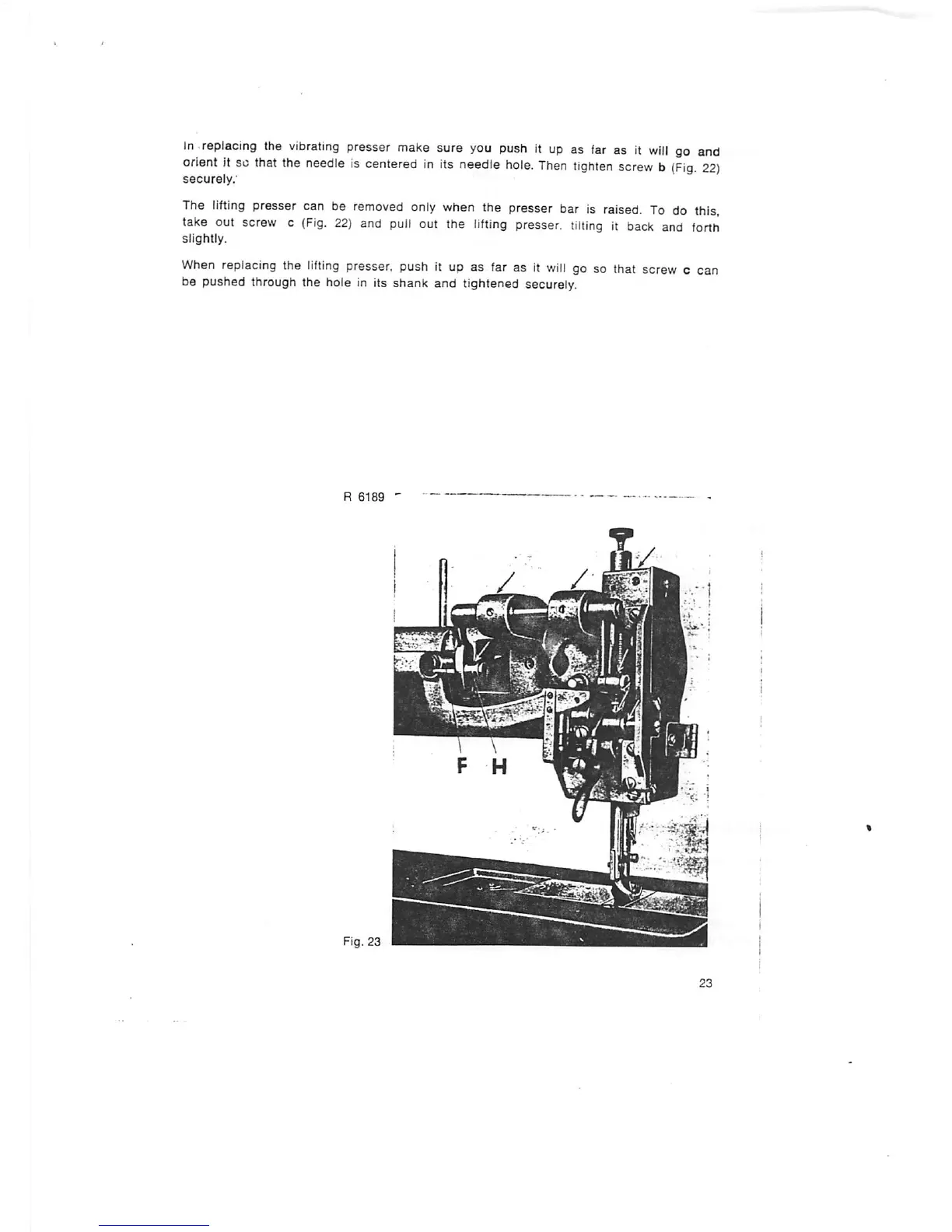

In replacing the vibrating presser make sure you push it up as far as It will go and
orient it so that the needle is centered in its needle hole. Then tighten screw b (Fig. 22)
securely.
The lifting presser can be removed only when the presser bar is raised. To do this,
take out screw c (Fig. 22) and pull out the lifting presser. tilting it back and forth
slightly.
When replacing the lifting presser. push it up as far as it will go so that screw c can
be pushed through the hole in its shank and tightened securely.
R 6189 '
/ ^
mmi
F H
Fig. 23
