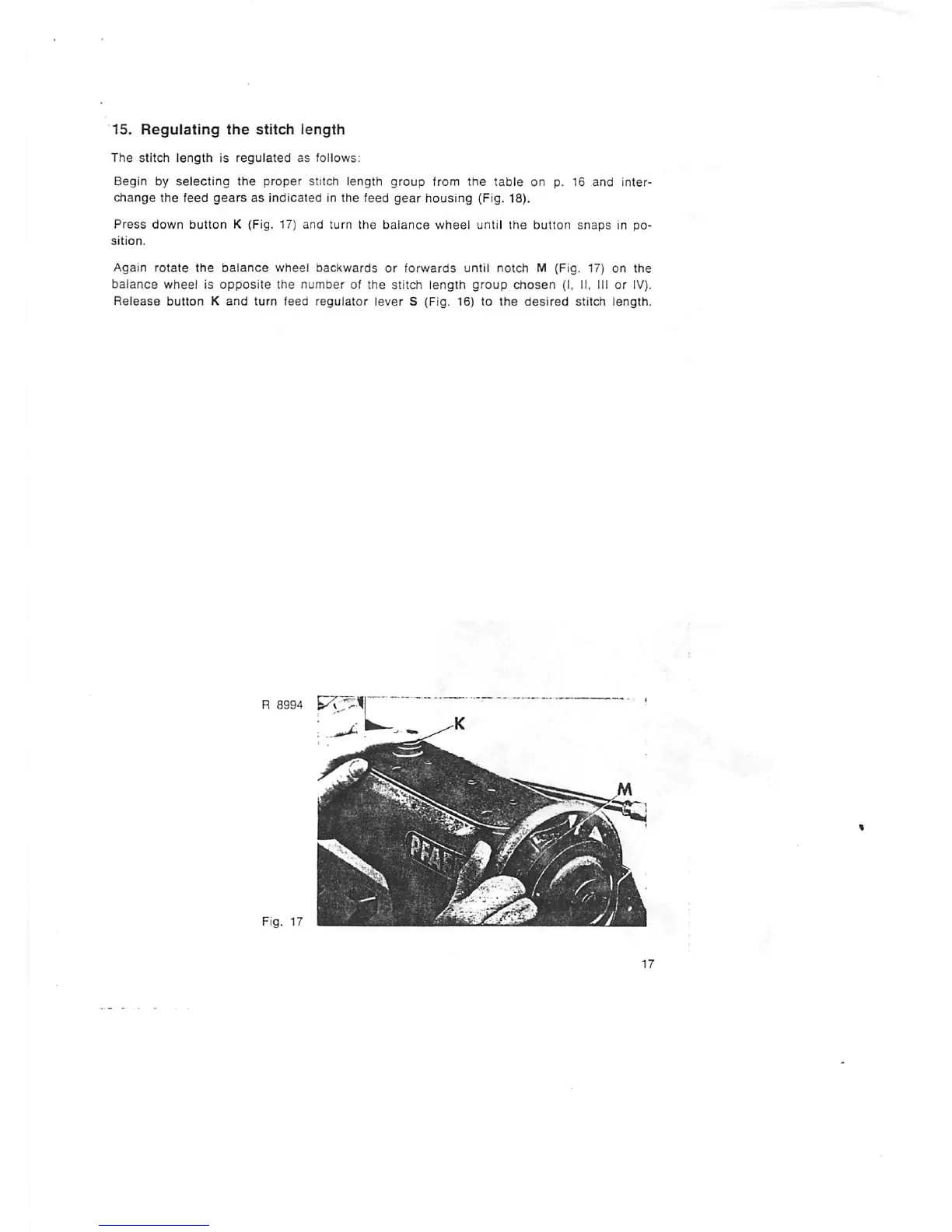

15. Regulating the stitch length
The stitch length is regulated as follows:
Begin by selecting the proper stitch length group from the table on p. 16 and inter
change the feed gears as indicated in the feed gear housing (Fig. 18).
Press down button K (Fig, 17) and turn the baiance wheei untii the button snaps in po
sition.
Again rotate the balance wheel backwards or forwards until notch M (Fig. 17) on the
baiance wheei is opposite the number of the stitch length group chosen (I, II. Ill or IV).
Release button K and turn feed regulator lever S (Fig. 16) to the desired stitch length.
R 8994
Fig. 17
