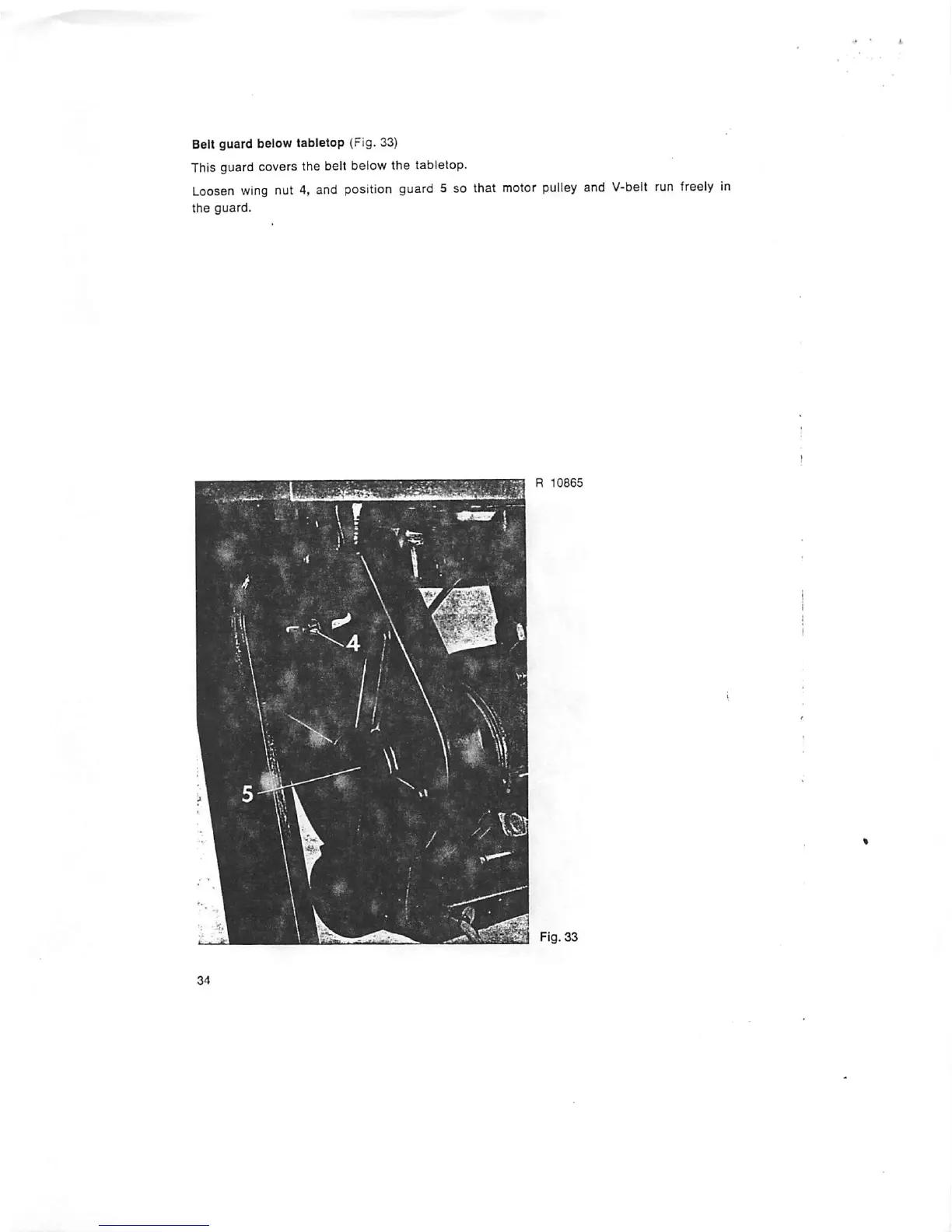

Belt guard below tabletop (Fig. 33)
This guard covers the belt below the tabletop.
Loosen
wing
nut 4, and
position
guard 5 so that
motor
puliey
and
V-belt
run
freely
in
the
guard.
"
f'-vj
\
R
10865
