.04.19 Roller presser
Raise the roller presser.
Always observe requirement 1 for subsequent adjustments.
Adjust roller presser 1 (screw 2) according to requirement 2.
Lower roller presser 1 to rest on feed wheel 5.
Adjust roller presser bracket 3 (screw 4) according to requirement 3.
When sewing very tight curves, the roller presser 1 must be moved a little to-
wards the operator.
Requirement
When the roller presser 1 is touching the feed wheel 5 it must
be parallel to feed wheel 5, as seen in the direction of sewing,
be in the centre of the needle (on model 574 the left needle), as seen in the direction
of sewing,
be as near as possible to the needle (on model 574 the left needle), as seen crosswise
to the direction of sewing.
1.
2.
3.
4
2
3
1
5

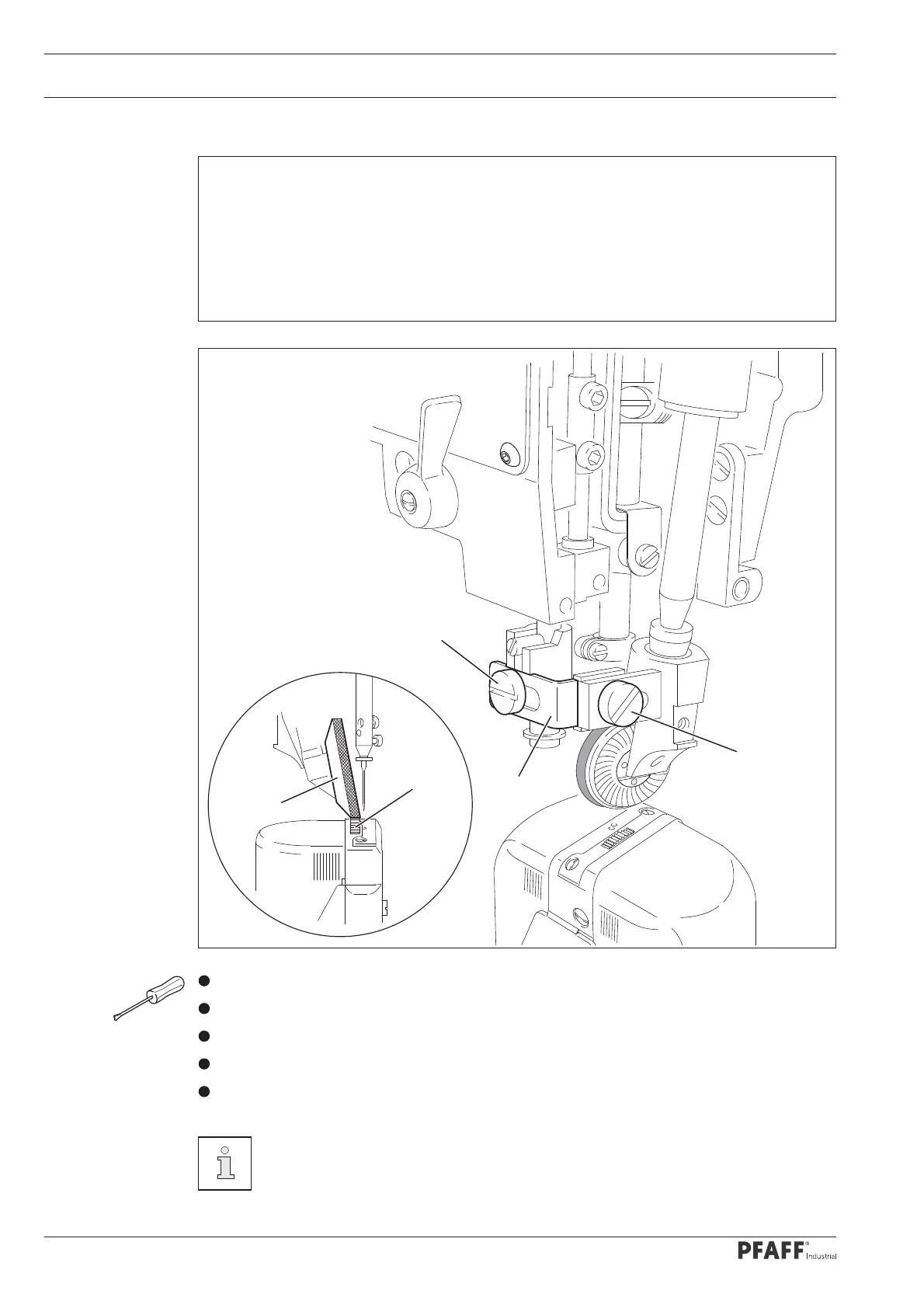

Fig. 1 - 19
Adjustment
