Pfaff 571 Adjustment Manual

32
1
.04.23 Knee lever
Requirement
Before the roller presser rises, the knee lever must still have a slight play.
When the knee lever is raised as far as possible, the lever for the roller presser must
drop automatically.
Knee lever bar 5 must be at an angle of approx. 75° to the bedplate.
1.
2.
3.
Adjust screw 1 (nut 2) according to requirement 3.
Adjust screw 3 (nut 4) according to requirement 2.
Set bar 5 (Screws 6) according to requirement 3.
61
-
079

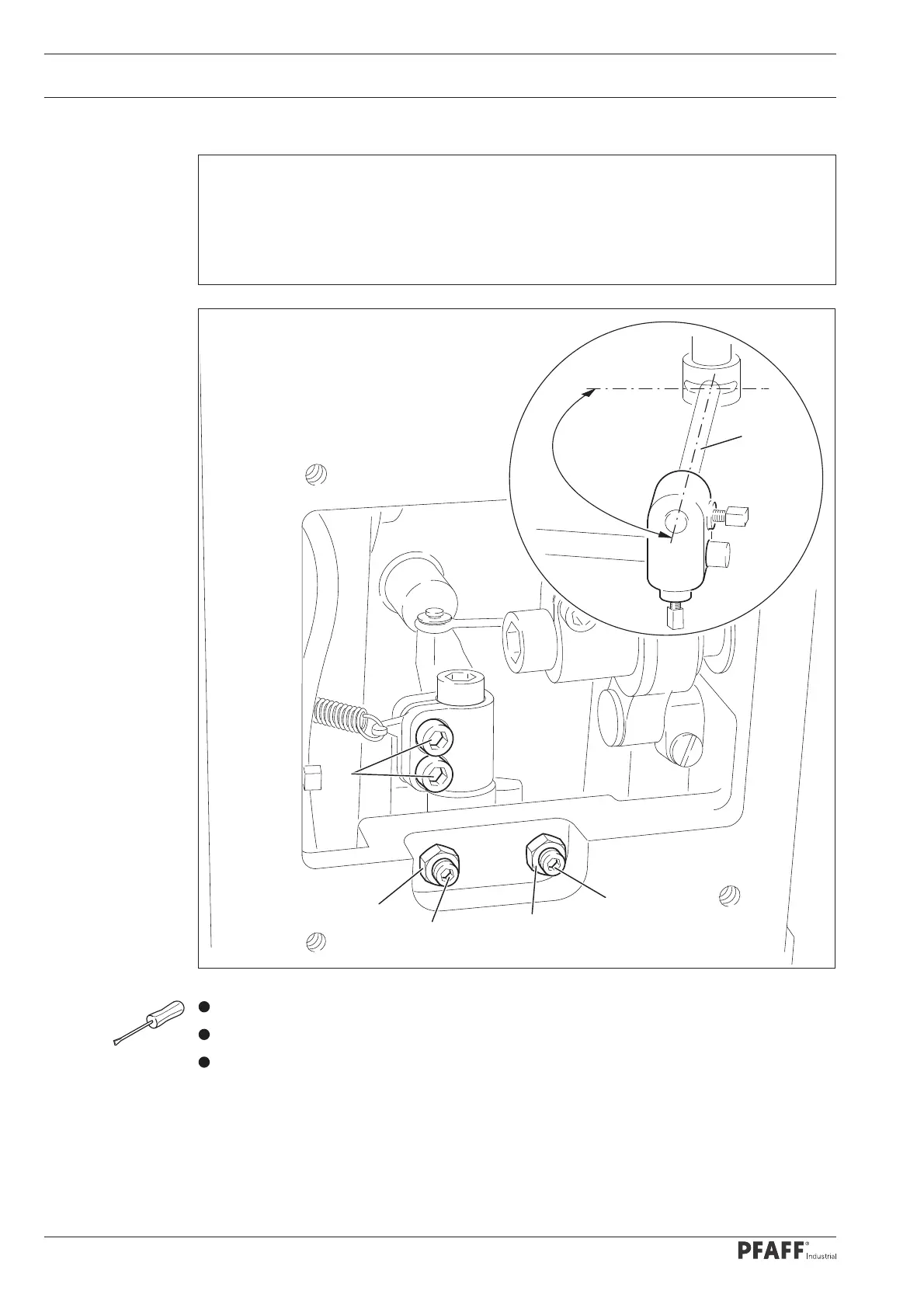

Fig. 1 - 23
1
2
3
4
5
6
75°
Adjustment
