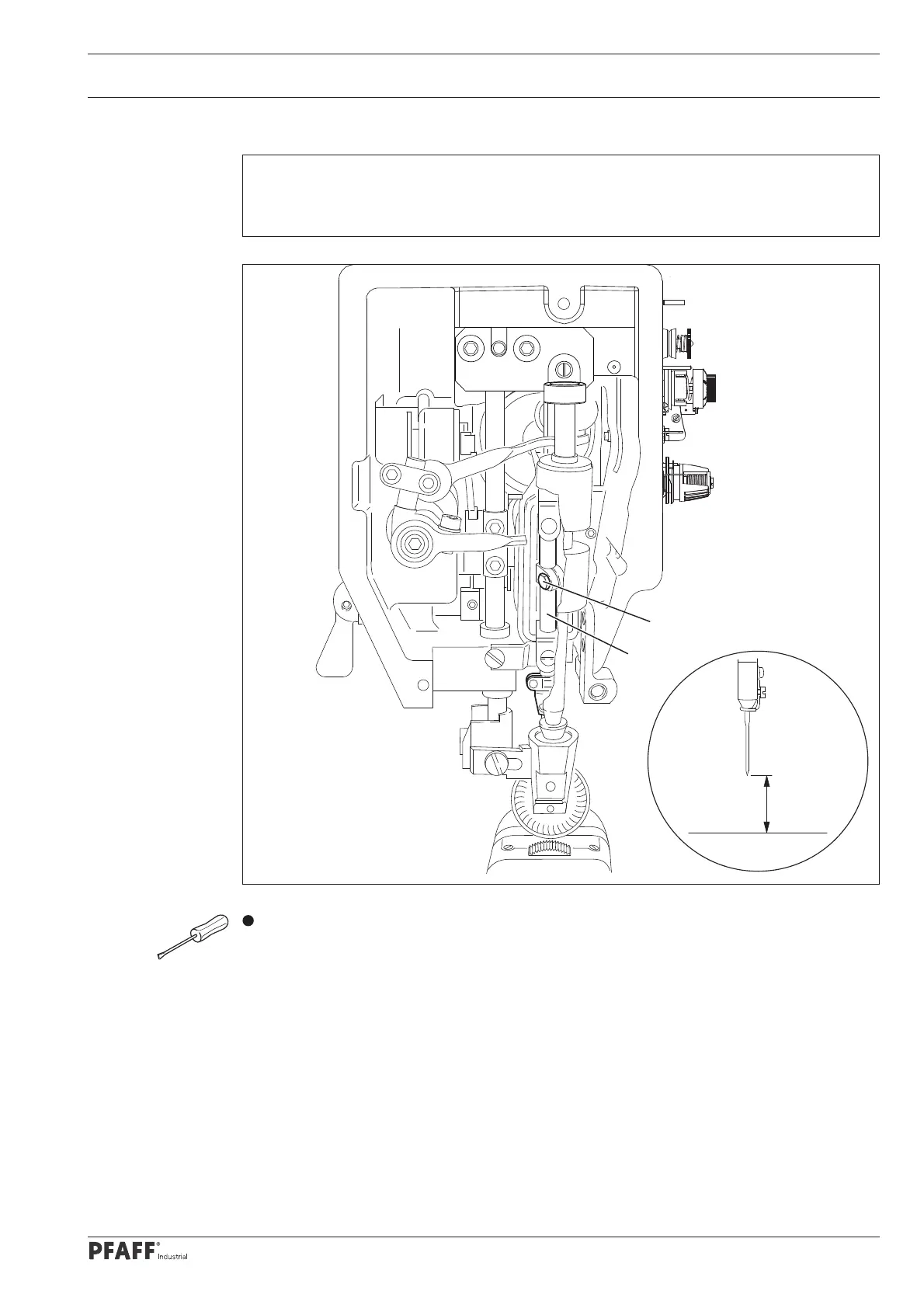

.04.03 Preliminary adjustment of the needle height
Requirement
When the needle bar is at TDC, there must be a clearance of approx. 21 mm between the
needle point and the needle plate.
Adjust needle bar 1 (screw 2), without turning it, according to the requirement.
90-036
Fig. 1 - 03
2
1
21 mm
Adjustment
