Adjustment

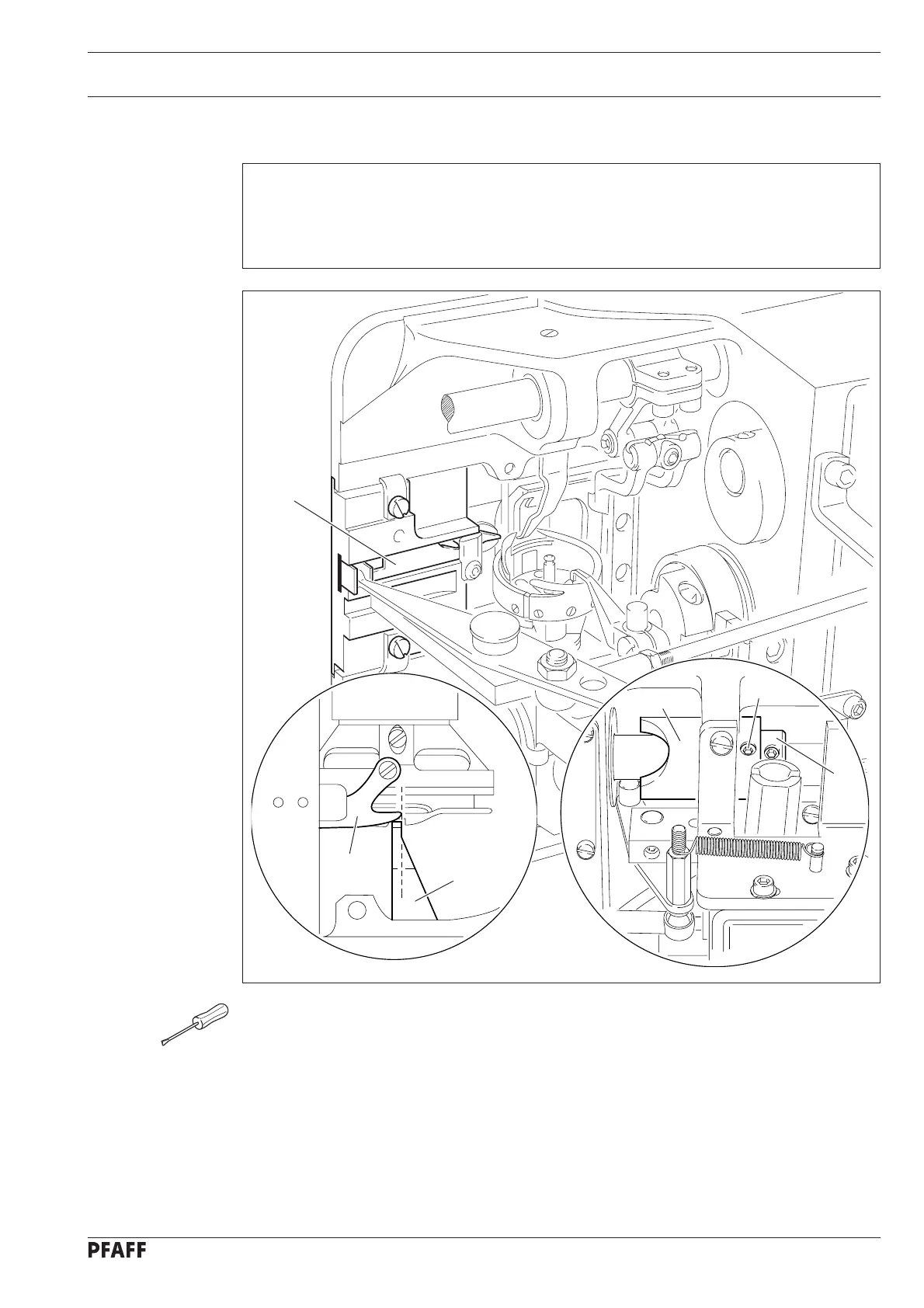

Fig. 12 - 50
5
81-044
4
3
81-098
1
2
6
12
.06.04
Readjustment of the control cam
Requirement
1.
When the end of the hook guard
3
is level with of the right edge of the bobbin case
position finger
4
, the thread catcher
5
should begin moving forwards.
2.
The control cam
1
should be touching adjustment ring
6
.
●
Bring the needle bar to b.d.c.
●
Turn control cam
1
(screws
2
) in accordance with
requirement 1
and shift it in
accordance with
requirement 2.
