21

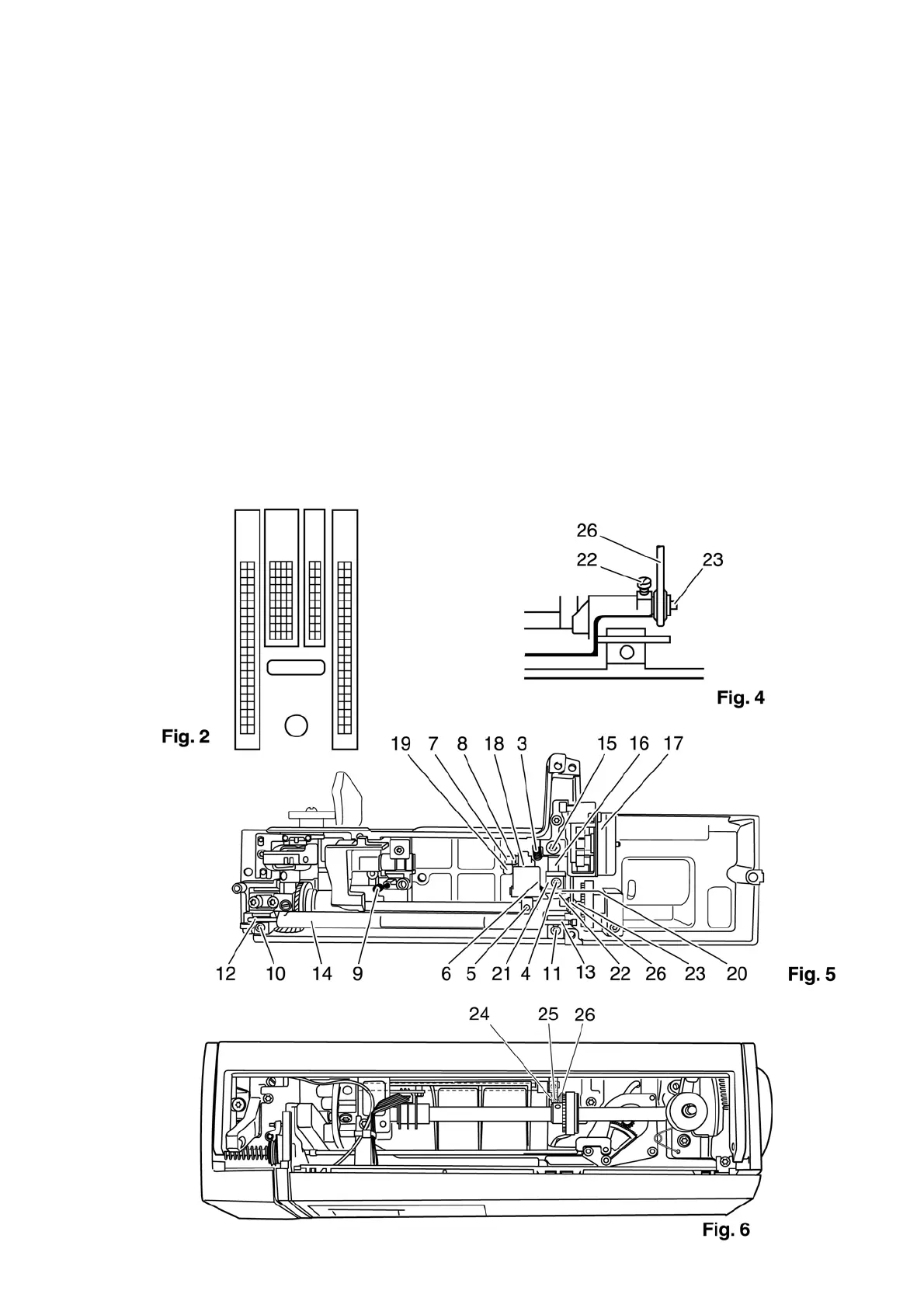

● Check whether the slide block can be moved easily, but without play or binding.
● Push slide lever shaft 16 complete with stepping motor 17 carefully to the left until there is a clearance
of 0.05 mm between slide block 8 and connecting bar 19.
● Tighten screw 15 and check whether the slide block moves easily and without play.
● Push link 7 complete with feed regulator 6 to the right onto the connecting bar pin.
● Push feed regulator 6 to the rear, and then upward over feed eccentric 5.
● Position screw 4 in clamping plate 21 and tighten it a little.
● Move stud 20 sideways a little until link 7 and connecting rod 19 have a slight play and move easily.
● Tighten screw 4.
● Attach the two springs 3 and 9.
Cross-check:
● The feed dog must be in the exact center of the feed slot.
