Pfaff hobby 1122 - Adjustment of the feed dog height

0.75 - 0.9 mm
(D)
(E)
(X)
(Y)
(C)
(B)
(A)
16 104 72 62-26

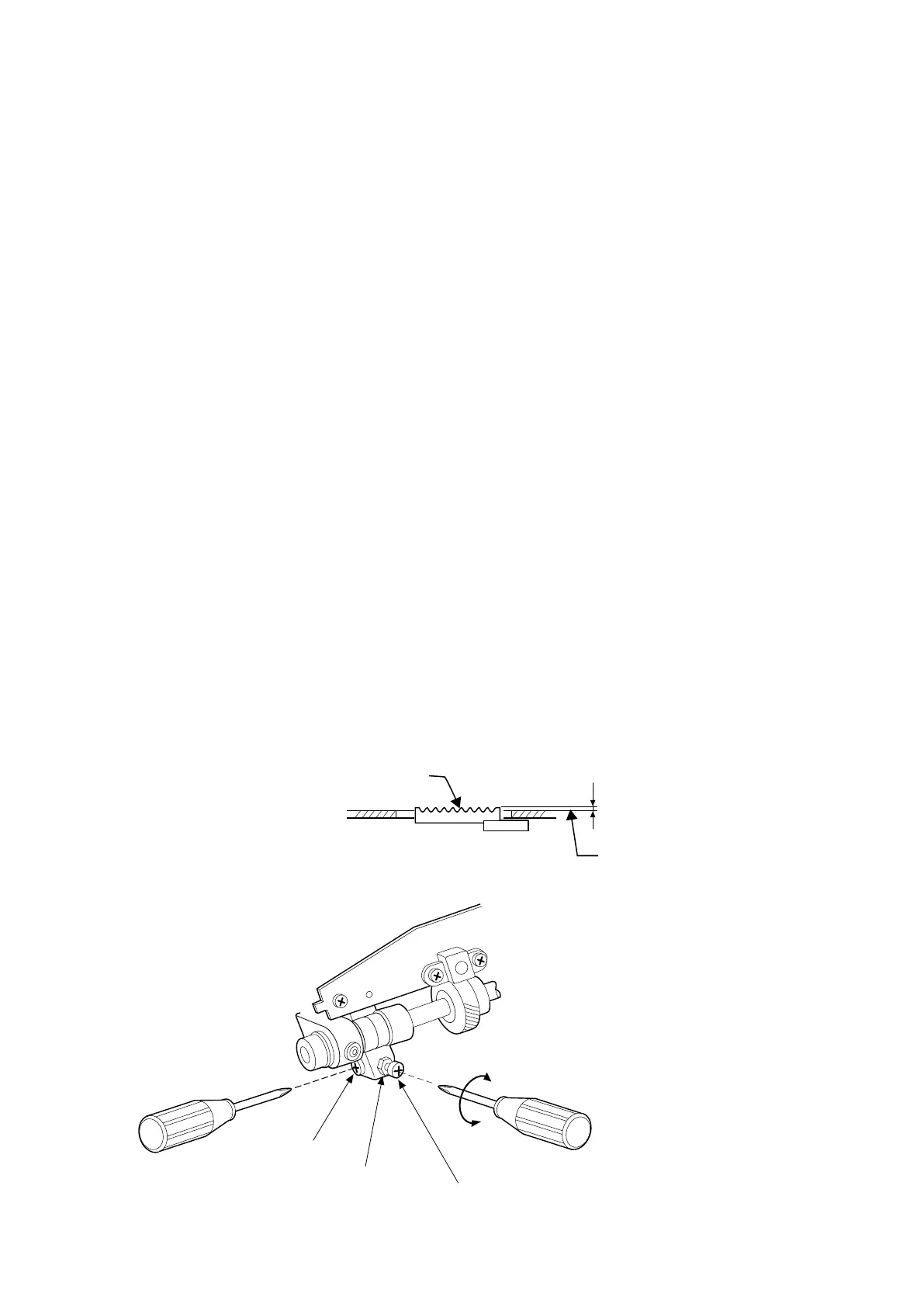

Adjustment of the feed dog height
Check
When the feed dog is in it’s highest position. The Feed dog teath top (E) should be 0.75 to 0,9 mm from the
surface of the needle plate (D).
Adjustment
• Select the machines longest stitch lenghts setting
• Turn the hand wheel until the feed dog (D) comes to its highest position.
• Remove the base cover.
• Loosen the screw (A) and nut (B).
• Turn the adjusting screw (C) so that the feed dog height is between 0,75 mm to 0.9
mm from the surface of the needle plate (D).
- (X) To raise
- (Y) To lower
• Tighten the nut (B).
• Tighten the screw (A).
• Attach the base cover.
