Pfaff hobby 1122 - Removing the housing covers; Face plate; Base cover

A
A
A
A
A
A
C
B
B
A
C
104 72 62-26 5
Face plate

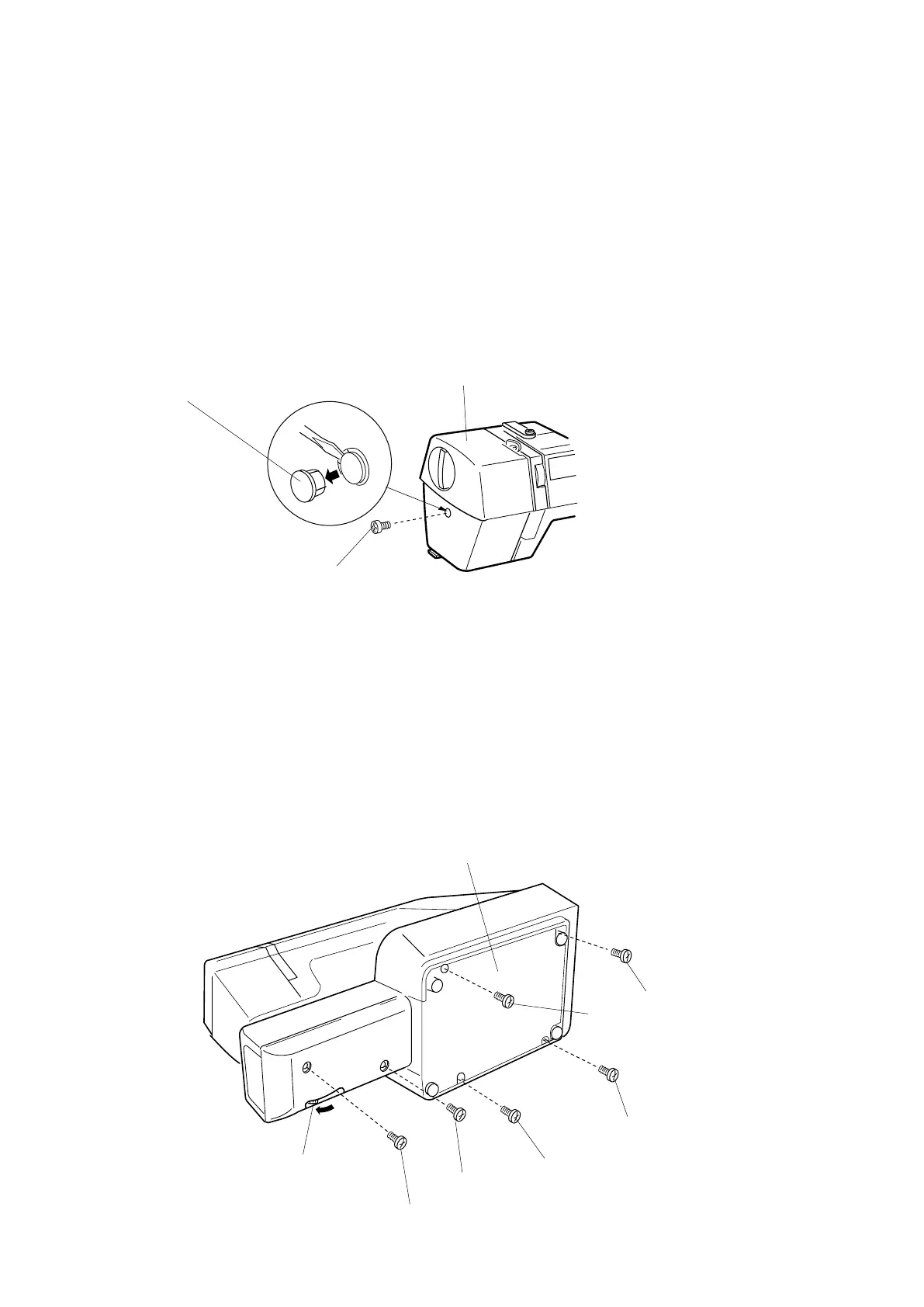

Face cover:
1. Remove cap (A).
2. Unscrew screw (B) of the face cover.
3. Remove face cover (C) .
Removing the housing covers
1. Remove the six set screws (A)
2. Remove the base cover (B).
To attach
Shift the drop feed lever (C) in the direction of the arrow.
Attach the base cover with setscrews.
Base cover
