55. Changing the mains connections in foot control AE 010
Note:
When changing connections it is compulsory to use original PFAFF connection cables, as only these are
approved.
Removal:
z Turn the foot control so that it is resting on pedal 175.

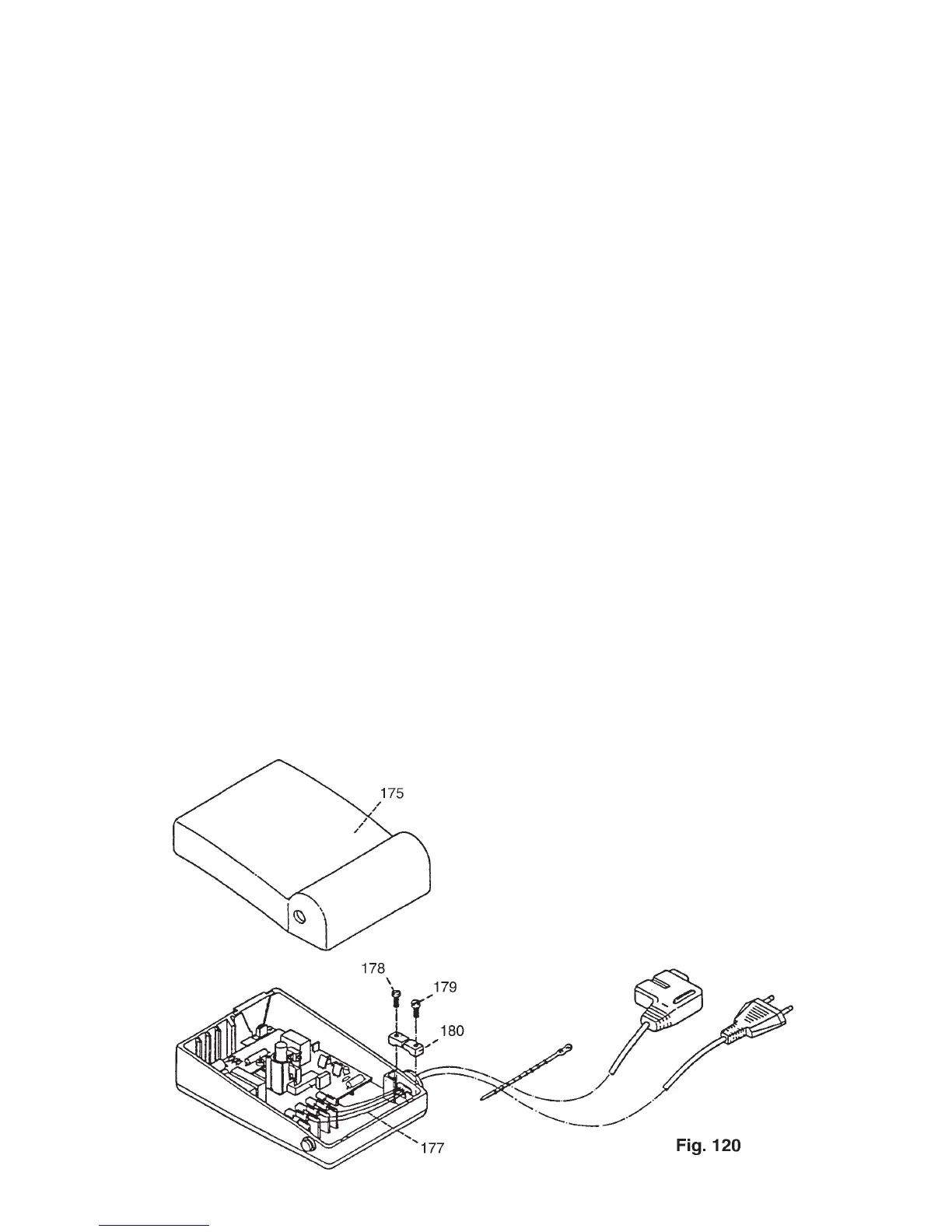

z Insert a screwdriver with a wide blade on the side opposite to the cables (fig. 120).
z Turn the screwdriver while removing pedal 175 upwards.
z Carefully remove mains connection cables or machine cables 177 from the circuit board (fig. 120).
z Loosen screw 178 or 179.
z Remove mains lead cleat 180.
z Remove mains connection cable or machine cable.
Refitting:
z Insert new cable 177 through the bore.
z Insert mains lead cleat 180 and secure with screw 173 or 174.
z Connect mains connection cables or machine cables 177.
z Refit pedal 175.
z Use a screwdriver with a wide blade to press the pedal a little aside and insert it downwards.
z Carry out a functional test.
z Carry out an electrical safety test in accordance with VDE 0701 using testing appliance ABB Metrawatt
M 5013.
