Pfeiffer DCU 600 - Data List; Dimensions

15

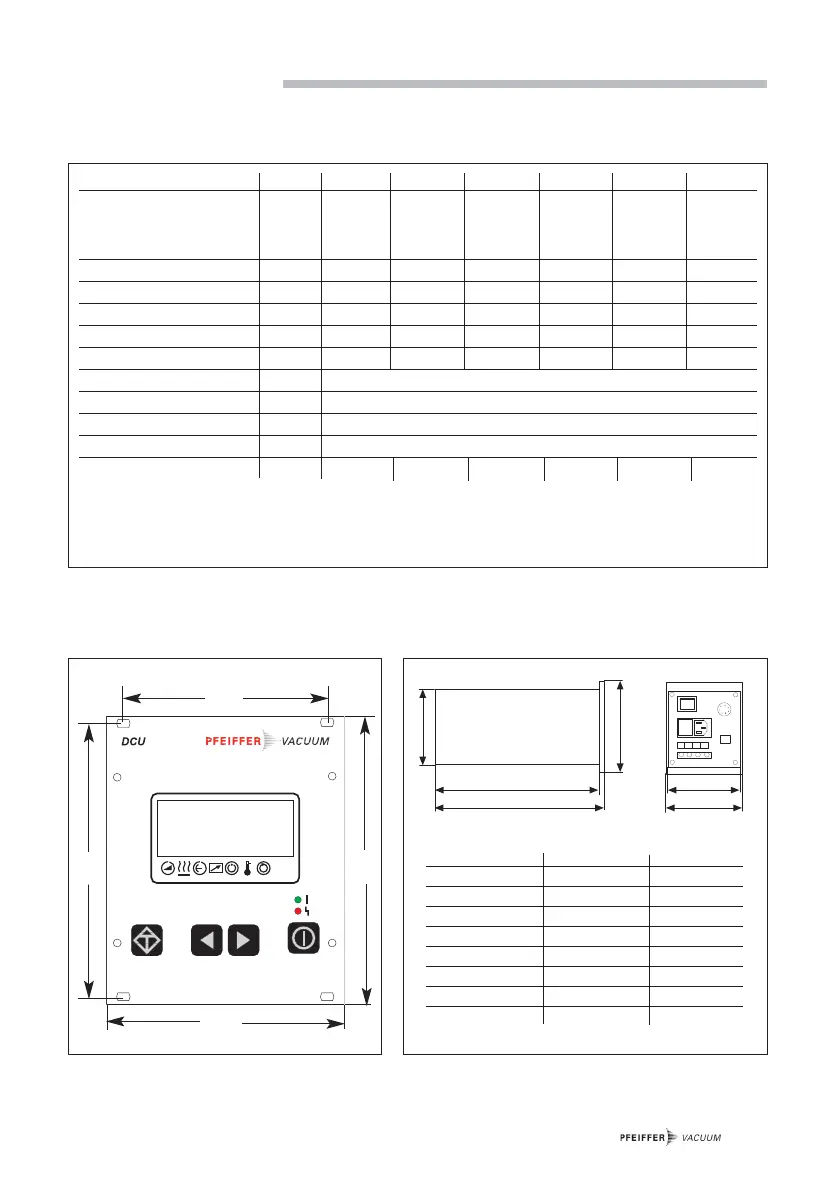

8. Technical Data
8.1. Data List
8.2. Dimesions
A
B
D
C
E
F
DCU 001/100-600
F
G
C
H
DDeeffiinniittiioonn UUnniitt DDCCUU 000011 DDCCUU 110000 DDCCUU 115500 DDCCUU 220000 DDCCUU 330000 DDCCUU 660000
Connection voltage: V DC 12-30
1)
–––––
V AC – 90-132 90-132 90-132 90-132 90-132
V AC – 185-265 185-265 185-265 185-265 185-265
Frequency: Hz – 50-60 50-60 50-60 50-60 50-60
Max. power consumption.: VA ≤ 5 ≤ 125 ≤ 170 ≤ 230 ≤ 350 590/900
2)
Output voltage X2: VDC – 24 24 48 72 140
Max output current X2: A – 4,1/4,6
2)
5/6,2
2)
4,1/4,6
2)
3,2/4,2
2)
3,8/5,8
2)
Max output power X2.: W – 100/110
2)
120/150
2)
200/220
2)
230/300
2)
530/812
2)
permiss. amb. temperature.: °C 5 - 40
Max. relative humidity.
3)
% 5 - 85
Air pressure: 86kPa - 106 kPa
Protection type: IP 20
Weight: kg 0,4 1,6 1,9 1,9 2,2 2,6
1) only supplied by PFEIFFER Electronic Drive Unit
2)
at 90-132 V AC / 185-265 V AC
3)
non condensing
DDCCUU 000011 DDCCUU 110000......330000 DDCCUU 660000
A 50,0 231,5 229,5
B 52,5 234,0 232,0
C 128,5 128,5 128,5
D 106,0 106,0 111,0
E 105,0 105,0 140,4
F 106,3 106,3 141,9
G 91,4 91,4 127,0
H 122,5 122,5 122,5
