Pfeiffer DCU 600 - Rear Panel

6

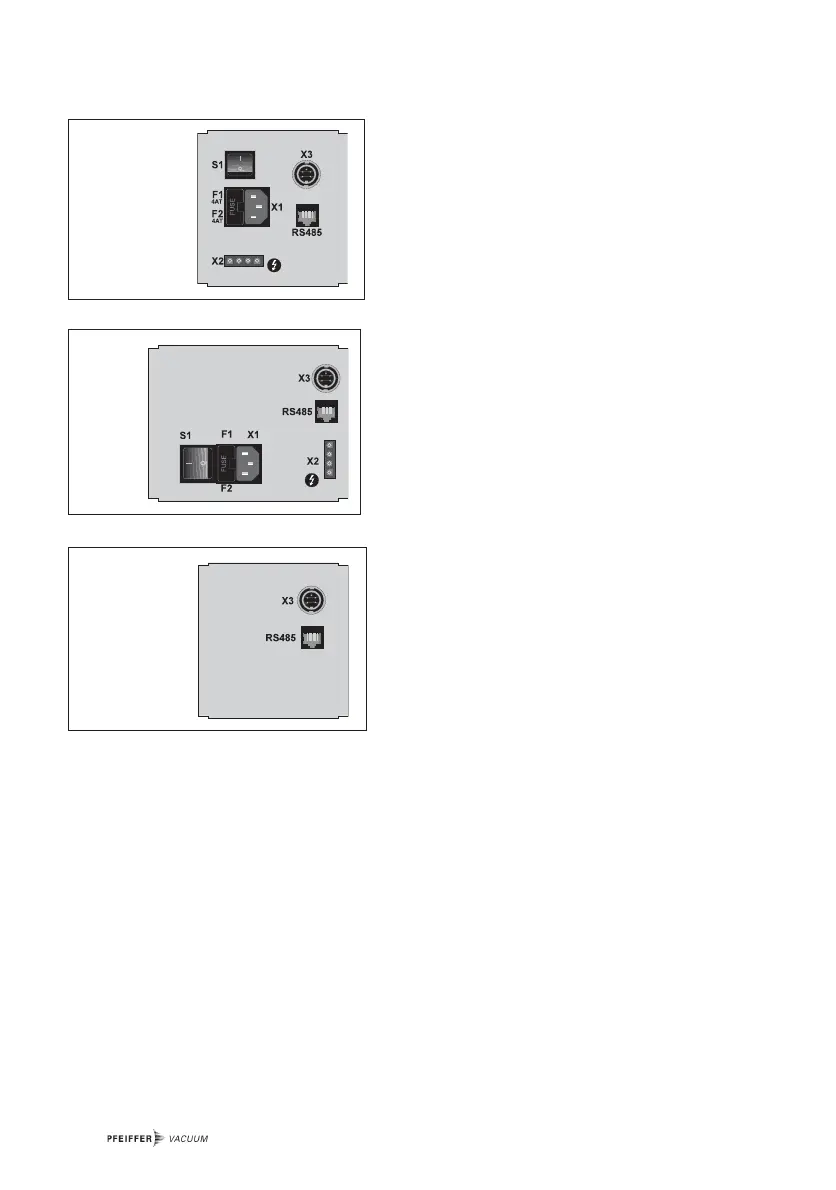

2.4 Rear Panel
10AF
10AF
DCU with
100/150/200/300W
-mains power
unit
DCU with
530/812W
-mains
power
unit
DCU 001 without
mains power
unit
S1 Mains switch
F1 Mains fuse
F2 Mains fuse
X1 Mains connection 90-265 V~
X2 Output for voltage supply, electronic drive unit
X3 Pressure gauge connection
RS 485 Communication with electronic drive unit
S1 Mains switch
F1 Mains fuse
F2 Mains fuse
X1 Mains connection 90-265 V~
X2 Output for voltage supply, electronic drive unit
X3 Pressure gauge connection
RS 485 Communication with electronic drive unit
X3 Pressure gauge connection
RS 485 Communication with electronic drive unit
