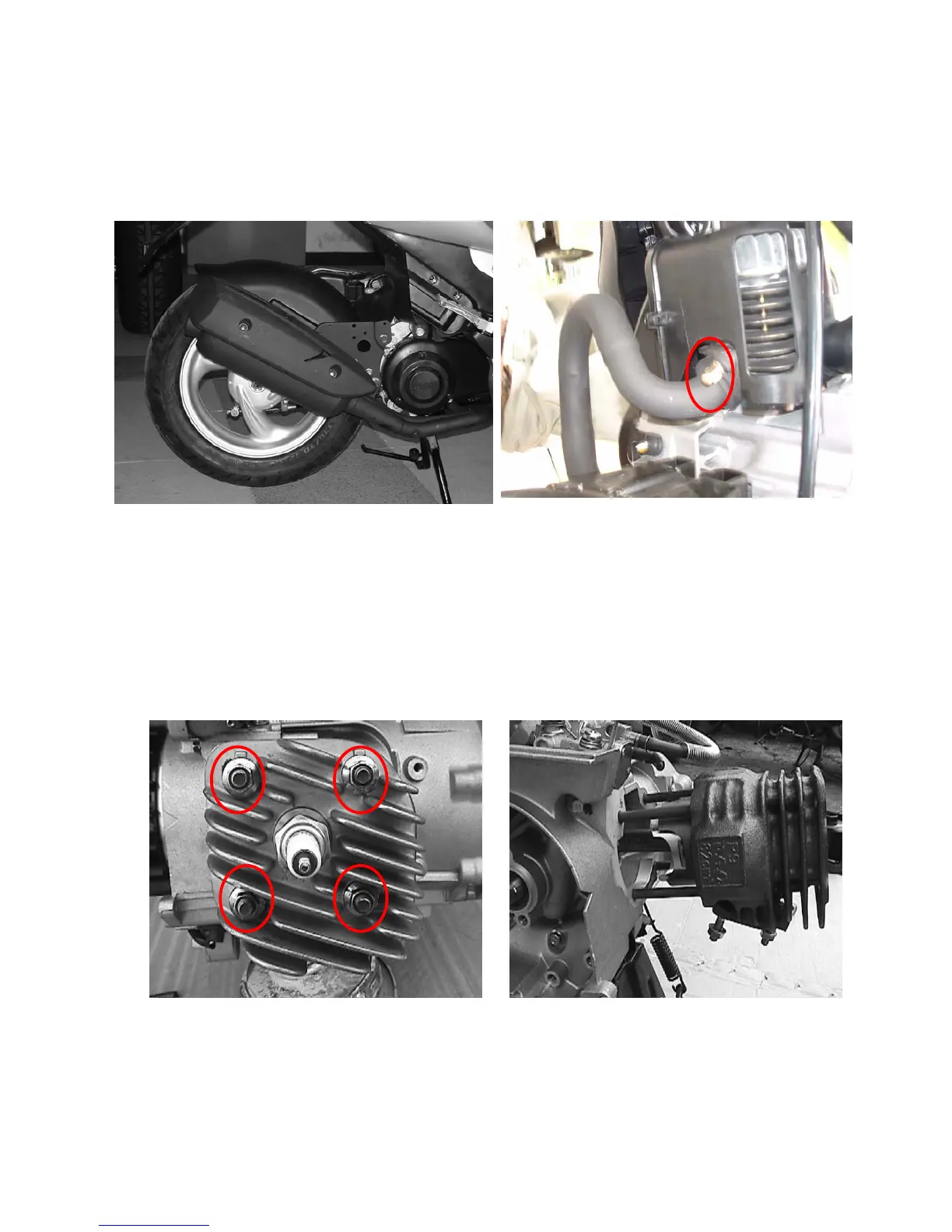

5.Remove the spark plug.
6.Remove the two M6 nuts on the muffler and cylinder.
Also remove the two M8-bolt of crankcase.
7.Remove muffler.
8.Remove the four M7-nut on the cylinder head, then remove the cylinder head
and cylinder head gasket.
