Phanteks GLACIER ONE 240 MP User Manual

3. Installing the pump block
4. Mount the radiator and fans
2. Motherboard preparation (follow instructions for the corresponding socket)
AMD Socket AM4
INTEL Socket 115X / 1200 / 1366
INTEL Socket 2011 & 2066
A) Remove the stock mounting brackets
A) This step is for AMD AM4 socket only
(for Intel socket installation, go to step 3B)
We recommend to install the fans to the radiator before
mounting it into the chassis.
3 Types of screws are included to mount the radiator and
the fans in dierent options:
Remove the Intel bracket
from the pump
1. Push the Intel bracket in
2. Rotate to loosen
3. pull the bracket o
Secure the AMD AM4
Bracket to the pump
4. push the AMD bracket in
5. rotate to fasten the bracket

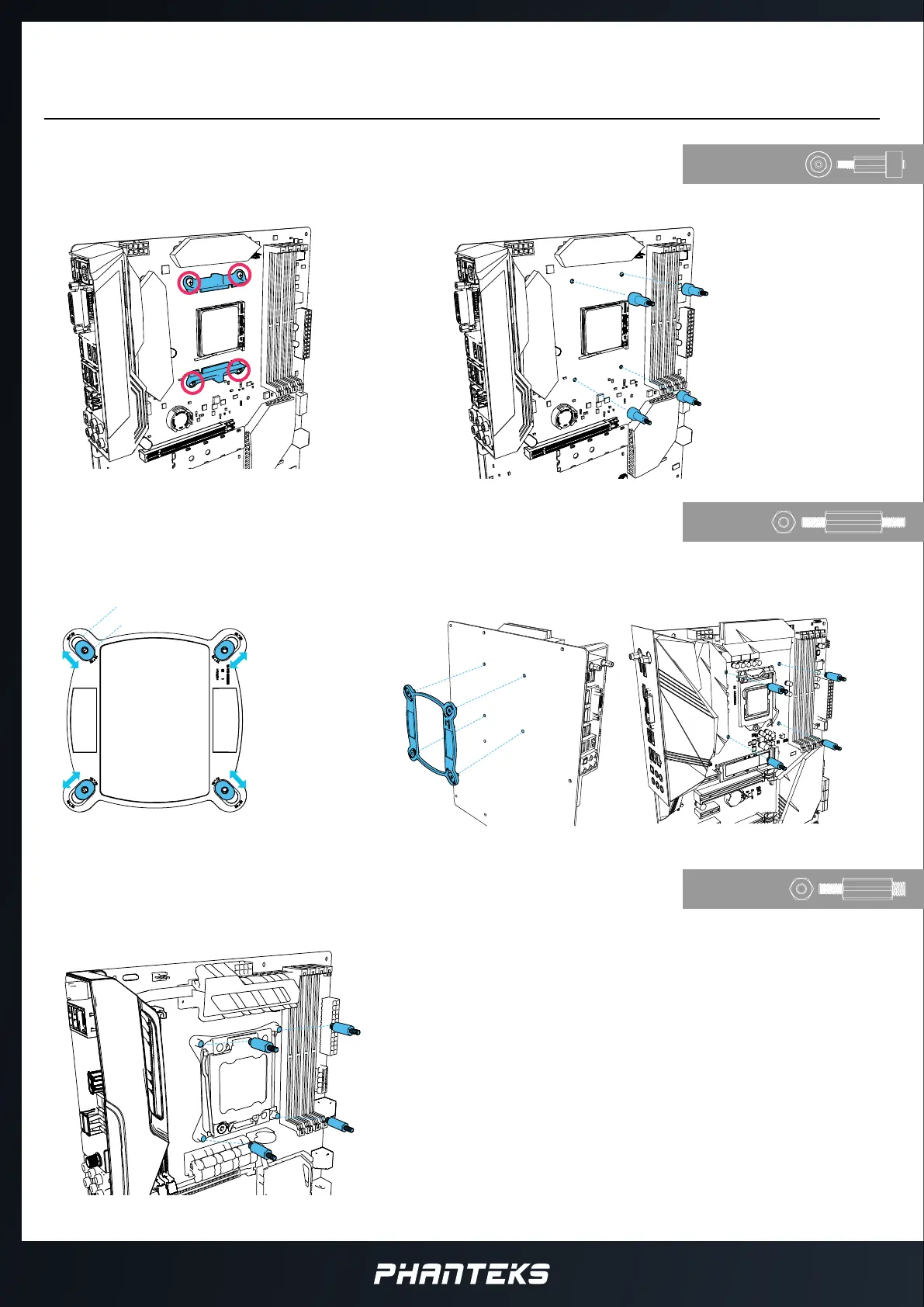

A) Prepare the Intel Backplate for the correct socket
A) Secure the 4x Intel 2011/2066 Stand-os to the motherboard
B) Secure the 4x AM4 Stand-os to the motherboard
B) Secure the pump unit to the
stand-os on the motherboard
with the 4x Thumb Nuts
B) Secure the 4x 115x/1200/1366 Stand-os
to the motherboard and Intel Backplate
The thermal compound is pre-applied.
More thermal compound is included for
future installations
Use the optional washers if necessary on the
chassis for a secure t
Use the 31mm fan screw to mount the fan to the
radiator (and chassis)
Use the 5mm radiator screw to mount the radiator
directly to the chassis
Use the 34mm Halos screw to mount the Halos and
fans to the radiator (and chassis)
MPH model only
5mm radiator screw
31mm fan screw
31mm fan screw
5mm radiator screw
34mm Halos screw
2.
3.
5.
4.
115x/1200
1366
4 x
4 x
4 x
4 x
Option B:
Option A:
Option C (MPH model only):
1.
