phase II+ UTG-2800 - Operating Conditions; Structure Feature; Measurement Screen; Keypad Definitions

1.5 Operating Conditions
Operating Temperature: 0°- 140°F
(－20～＋60℃)
Storage Temperature：22° - 150°F (-30℃～＋70℃)
Relative Humidity ≤90％
The surrounding environment should be void of vibration, strong magnetic field, corrosive medium and heavy
dust.

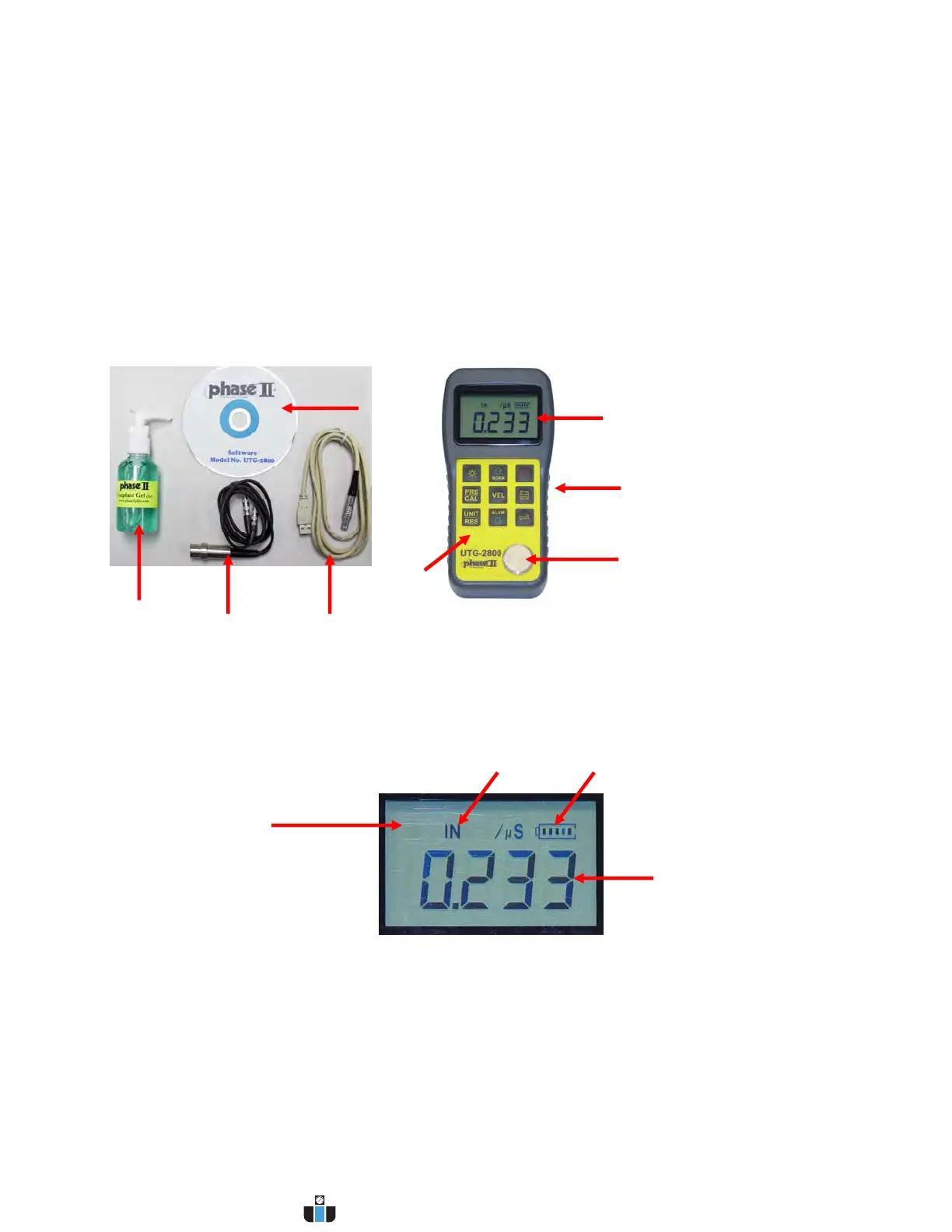

2 Structure Feature
1) Base Instrument 2) Keypad 3) LCD display 4) Calibration Block 5) Dual Sensor Probe 6) Software 7) USB Output
Cable 8) Couplant Gel
2.1 Main Screen
1, Coupling Indicator: Indicates the coupling status. While the gauge is taking a measurement, the coupling
indicator will be displayed. If it is not, the gauge is having difficulty achieving a stable measurement, and the
thickness value displayed will most likely be erroneous.
2, Measuring Unit: Current unit system. MM or IN for thickness value. M/S or IN/μS for sound velocity.
3, Battery Icon: Displays the remaining capacity of the battery.
4, Information Display: Displays the measured thickness value and the sound velocity.
2.2 Keypad Definitions
1
2 3
2
1
2
2
4
5
6
3
5
6
7
4
8
