B. Capillary GC Installation with the Cool-Lock
™
Nut
Avoid burning your fingers again – cools with the oven•
No Wite-Out•
®
needed
Achieve the proper installation depth each and every time•
No need for wrench with hand-tightened connections•
~ e x c l u s i v e ~
patent pending

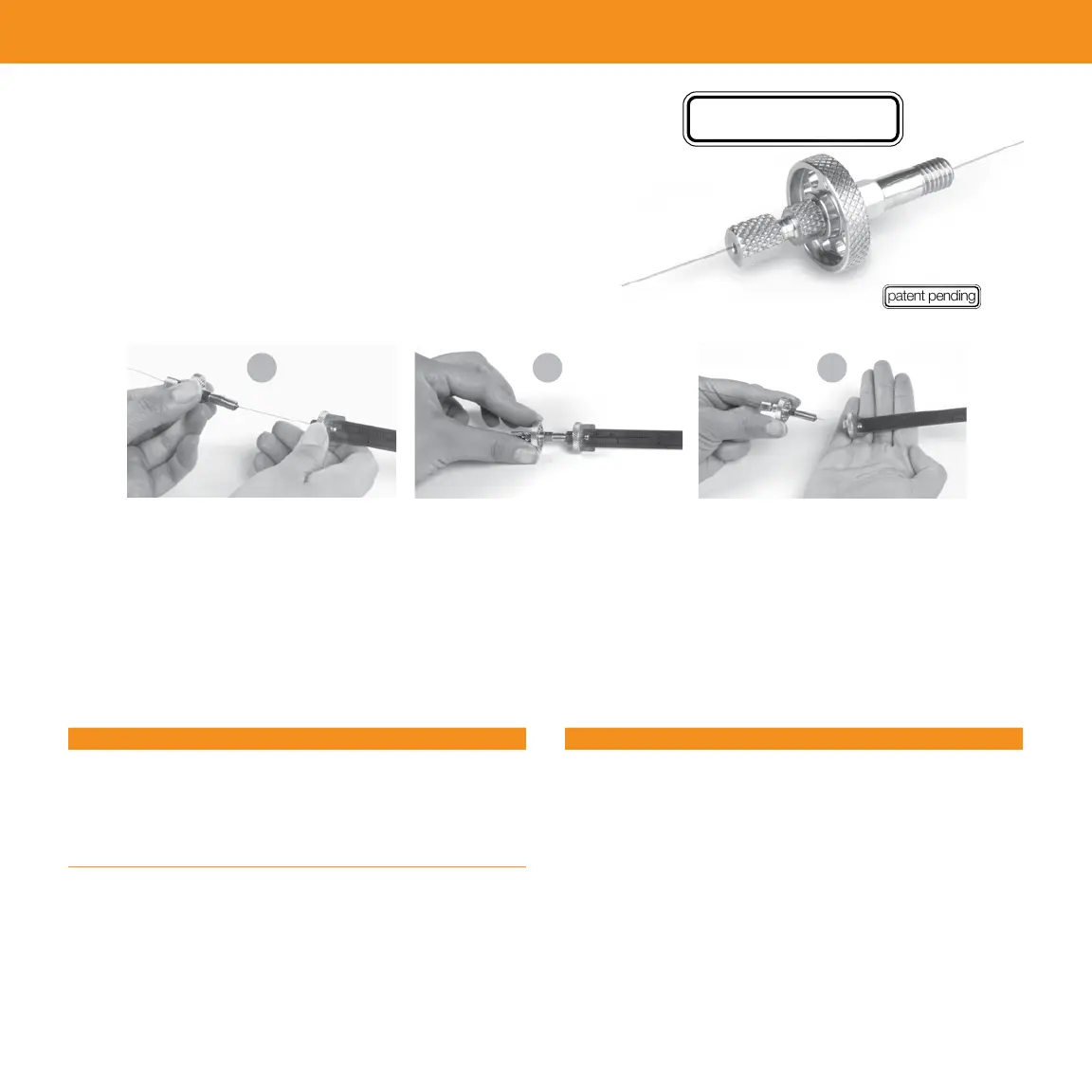

1. Insert column through column nut and
ferrule. Cleanly cut ≥ 1 cm of the column
that is protruding from the nut and ferrule.
Insert the end of the column and column
nut into the bottom of the Cool-Lock Nut
Installation Gauge.
1
2. Hand-tighten the column nut into the gauge
until the ferrule starts to compress. Adjust the
length of the column to the desired length.
Further tighten the nut into the gauge until the
column cannot slide. If using the Cool-Lock
Nut, tighten its bottom ferrule. Make sure lower
body/ferrule is in the full extension position.
Otherwise, mark the column at the base of the
column nut to ensure the correct installation
depth after installation.
2
3. Unscrew the installation gauge and install
the nut and column into the instrument.
4. Make sure Cool-Lock Nut is in the full
extension position to achieve the correct
premeasured position, and allow for proper
leak checking.
3
Cool-Lock GC Capillary Nut
*
Part No. Description Unit
AG0-8319 Cool-Lock GC Capillary Nut For Use with
Short-Style Ferrules
ea
AG0-8320 Cool-Lock GC Capillary Nut For Use with
Long-Style Ferrules
ea
AG0-8349 Cool-Lock Nut Installation Gauge ea
Replacement Ferrules
AG0-4701 GC Capillary Ferrules Graphite
1
⁄16 in. to 0.5 mm ID 10/pk
AG0-4704 GC Capillary Ferrules Graphite
1
⁄16 in. to 0.8 mm ID 10/pk
*Guaranteed t for Agilent 5850, 5890, 6890, 6850 GC systems
Agilent GC Systems Shimadzu GC Systems
Cool-Lock GC Capillary Nut
**
Part No. Description Unit
AG0-8419 Cool-Lock GC Capillary Nut For Use with
Short-Style Ferrules
ea
AG0-8420 Cool-Lock Nut Installation Gauge ea
**Guaranteed t for Shimadzu QP-2010 and QP 2014 GC systems
