Engineering Specification
PHILIPS Confidential – Do Not Copy 105S5
II-3
4.2 CRT Specification
ITEM SPEC
Size 15”
Diagonal 13.82”
Deflection 90
Persistence P22 medium short persistence phosphor
Phosphor pitch 0.28mm
Mask type Shadow mask
Screen finish Glare
Face plate Filter glass
CRT Samsung: M36QAW351X113 (G/PS/SKD)
LG Philips: M36EDR311X304/6F01
4.3 Power saving management system.
Signal Mode
H-Sync V-Sync Video
OSD indicator LED Power Recovery
time
On Active Active Active Normal Green < 75W 10 sec
Off Inactive Active Blank Power Saving Yellow < 8W 10 sec
Off Active Inactive Blank Power Saving Yellow < 8W 10 sec
Off Inactive Inactive Blank Power Saving Yellow < 8W 10 sec
Off <29KHz or
>57KHz
<49Hz
or>121.5Hz
Blank H.V. frequency
over range
Yellow < 8W 10 sec
B Screen characteristics
4.4 Picture display size
Horizontal size 270+3 mm
Vertical size 202+3 mm

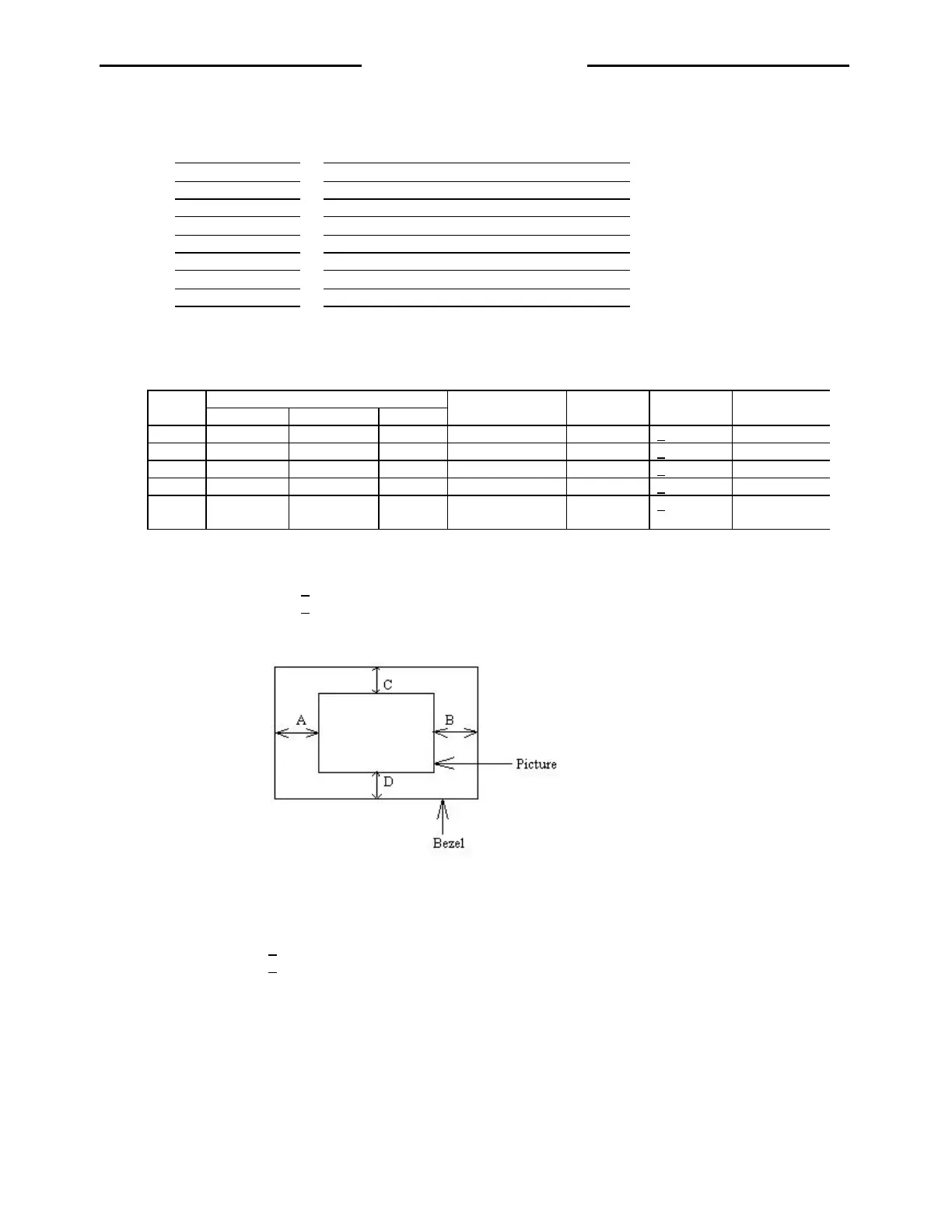

4.5 Picture center
|A- B| ≤ 4 mm |C- D| ≤ 4 mm for 800x600, 85Hz
|A- B| ≤ 5 mm |C- D| ≤ 5 mm for others mode
4.6 Picture shift control range (for preset mode only)
H-Shift range : + 10mm Min.
V-Shift range : + 8mm Min.
