2

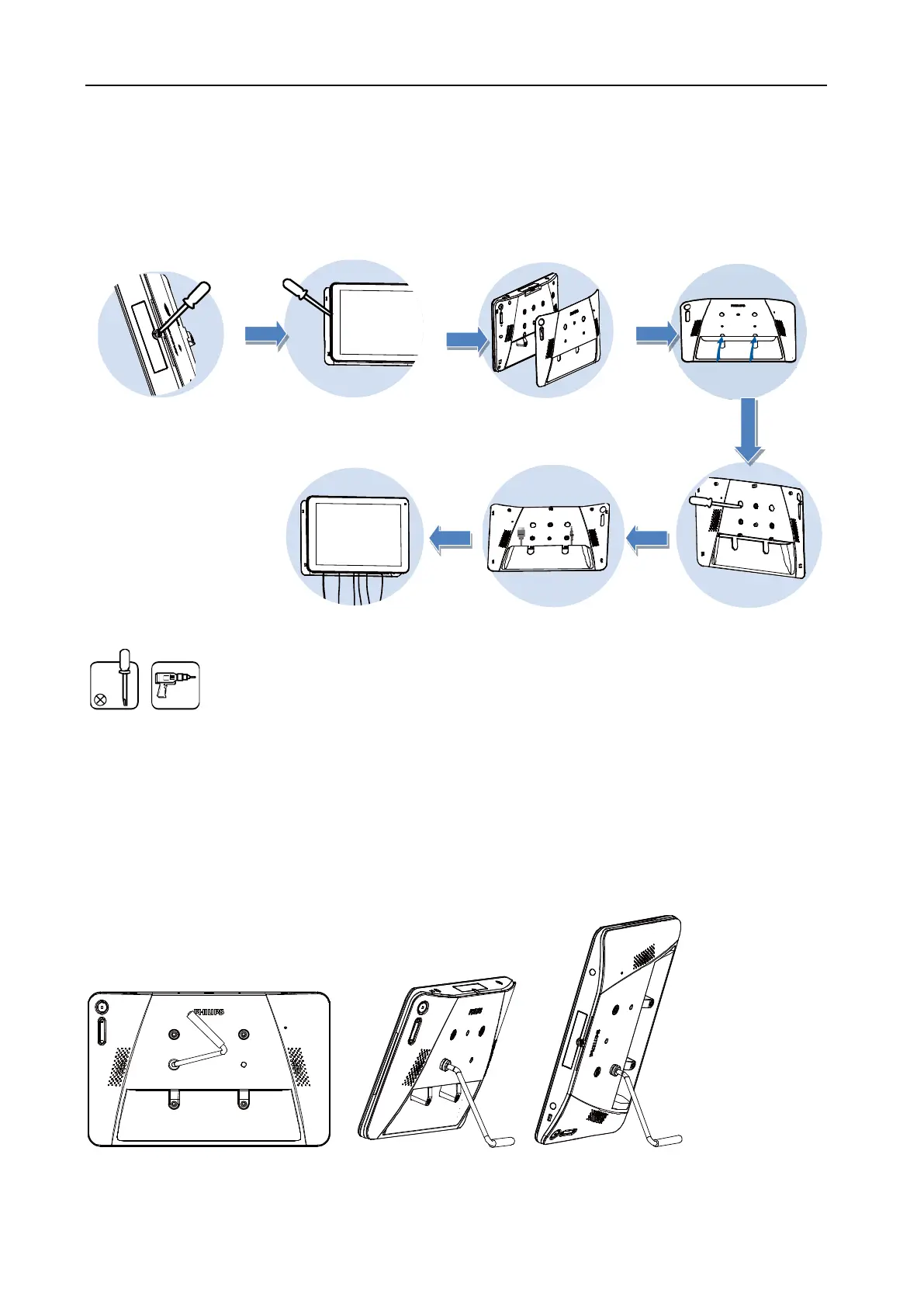

Step1 Release the back cover screw to release back cover.
Step2 Open the back cover with disassemble tool.
Step3 Separate the back cover from main device.
Step4 Stick the silicon gaskets on back cover.
Step5 Install back cover thread head height not exceed 3mm.
Step6 Route power and network cable from bottom, insert signboard before mount signboard on back cover.
Mounting and installation
Mounting Option 1: [VESA mount] f
Supporting VESA standard: VESA MIS-D75 (75*75mm)
Supporting screw: M4*4mm (exclude the mounting plate thickness)
The equipment and its associated mounting facilities still remain secure during the test. Use only the UL listed VESA
mount with a minimum weight/load of the weight of the unit without base.
Mounting Option 2: [Using back cover]
Supporting screw: Self-tapping screw*3pcs(exclude the mounting plate thickness)
Simply screw the supplied table stand onto the stand screw hole.
Landscape Portrait
