Philips 14PV225 - Main 1;5 Schematic Diagram

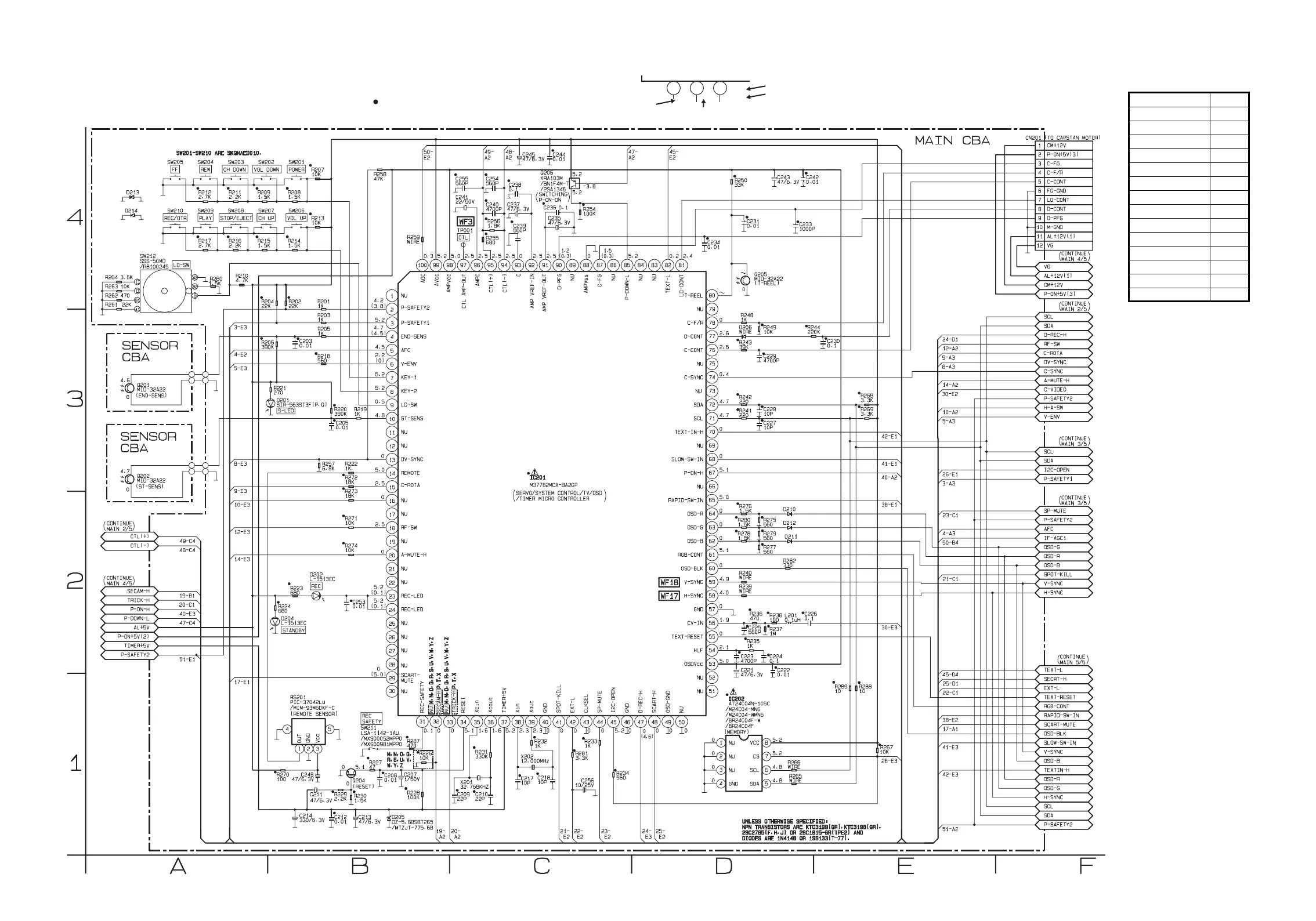

Main 1/5 Schematic Diagram
1-8-44 1-8-45
T6410SCM1
Voltage indications for PLAY and REC modes on
the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
~
5.0
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
14PV225/07 M
14PV225/01 N
14PV225/58 O
14PV225/39 P
14PV422/07 Q
14PV422/01 R
14PV422/58 S
14PV422/39 T
14PV125/07 U
14PV125/01 V
14PV125/58 W
14PV125/39 X
14PV120/07 Y
14PV425/07 Z
