Philips 14PV225 - Page 12

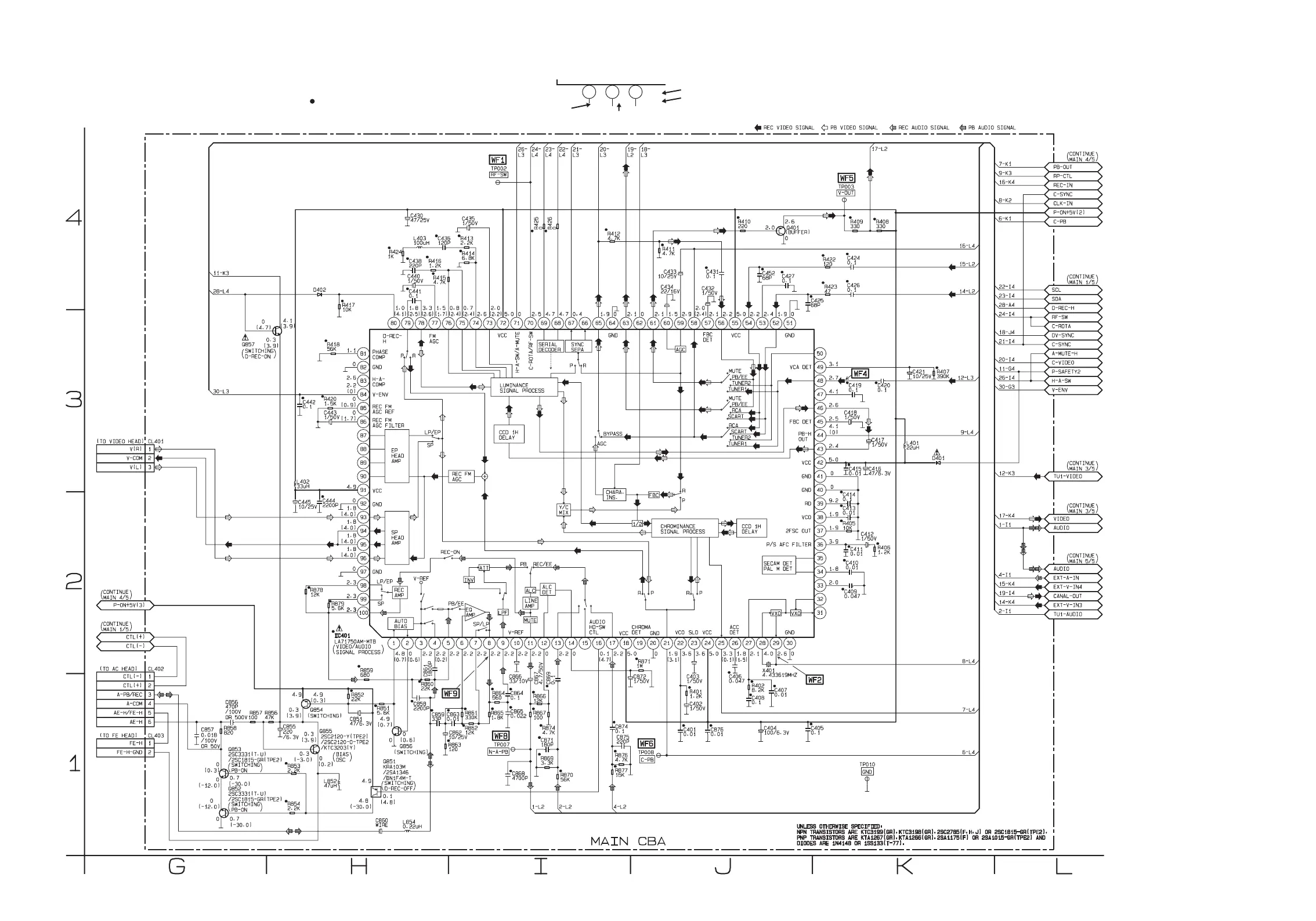

Main 2/5 Schematic Diagram
1-8-46
1-8-47
T6410SCM2
Voltage indications for PLAY and REC modes on
the Schematic Diagrams are as shown below:
1 2 3
5.0
(2.5)
~
5.0
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
PLAY MODE
REC MODE
“ “ = SMD
