Philips 14PV360 - Page 29

1-8-3 1-8-4 1-8-5
T6300SCM1

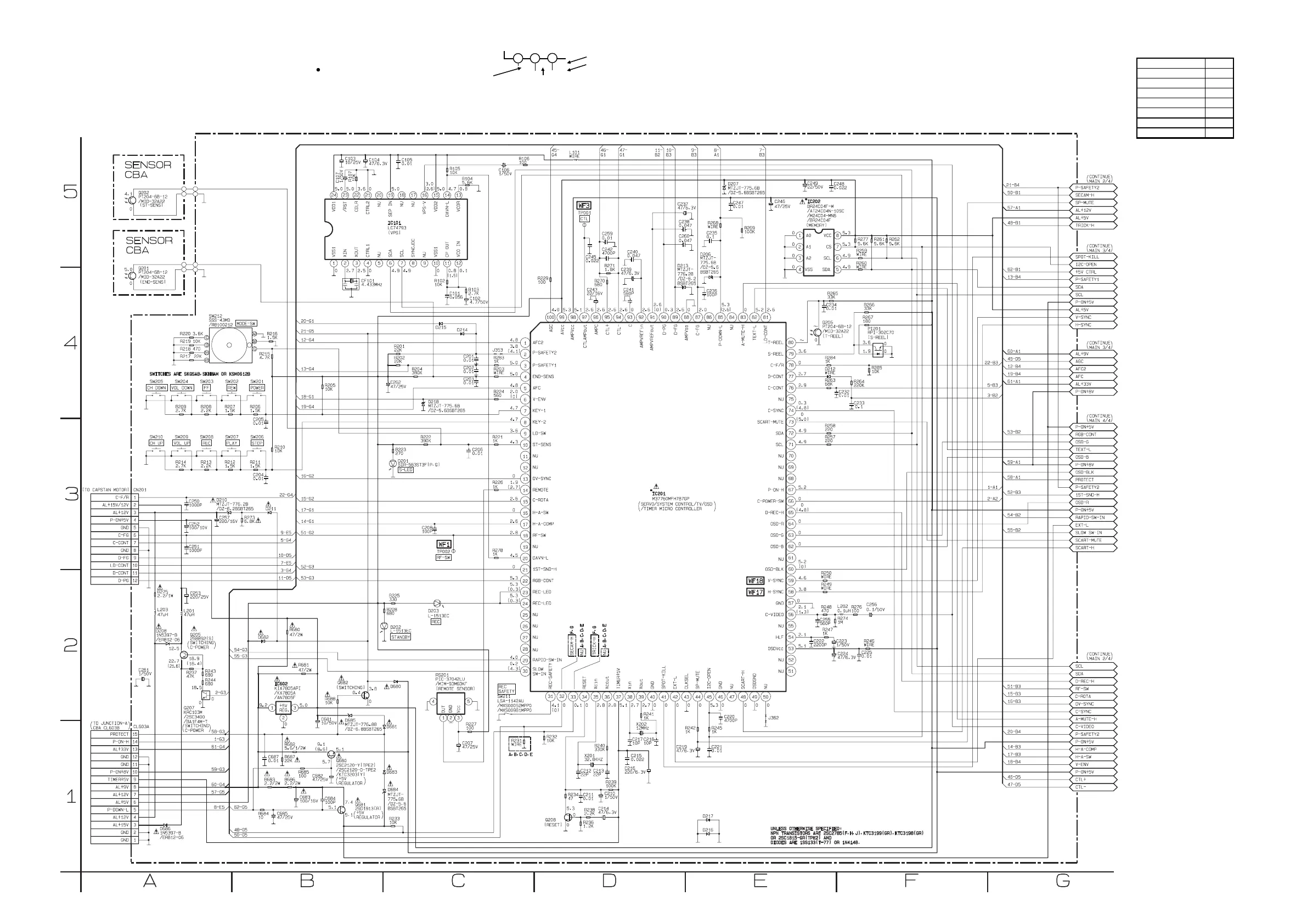

Main 1/4 Schematic Diagram
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
Comparison Chart of
Models and Marks
MODEL MARK
14PV360/07 A
14PV365/07 B
14PV360/01 C
14PV365/01 D
14PV365/58 E
14PV360/39 F
14PV365/39 G
