Philips 14PV360 - Page 36

TEXT SCHEMATIC DIAGRAM PARTS LOCATION GUIDE
Ref No. Position Ref No. Position
C901
A-2
D911
D-3
C902
A-2
D912
C-3
C904
A-1
C905
A-2
IC901
A-3
C906
A-2
IC902
C-3
C908
A-1
C909
A-1
Q901
C-1
C910
A-1
Q903
C-3
C911
B-1
Q904
C-1
C912
C-1
C914
B-2
R901
A-2
C915
C-2
R902
A-2
C916
C-2
R903
B-1
C917
B-3
R904
C-1
C918
B-3
R905
C-1
C919
B-3
R906
C-1
C920
B-3
R907
C-2
C921
D-2
R908
C-2
C922
C-2
R913
C-2
C923
C-2
R914
C-2
C924
C-3
R915
B-3
C925
C-2
R916
C-3
C926
C-2
R917
C-3
C927
B-1
R919
C-2
C928
C-3
R920
C-1
C929
A-2
R921
B-1
C930
B-1
R922
D-3
R923
C-3
CN901
D-2
R930
C-1
CN902
D-1
R931
B-1
R932
C-1
D901
C-1
R933
C-1
D902
C-2
R934
C-1
D903
C-2
R936
C-3
D904
C-2
R937
A-3
D908
C-2
R940
B-3
D909
C-3
D910 C-2 X901 B-3
CRYSTAL OSCILLATOR
DIODES
TRANSISTORS
CONNECTORS
ICS
CAPACITORS
RESISTORS
DIODES
1-8-21
1-8-22

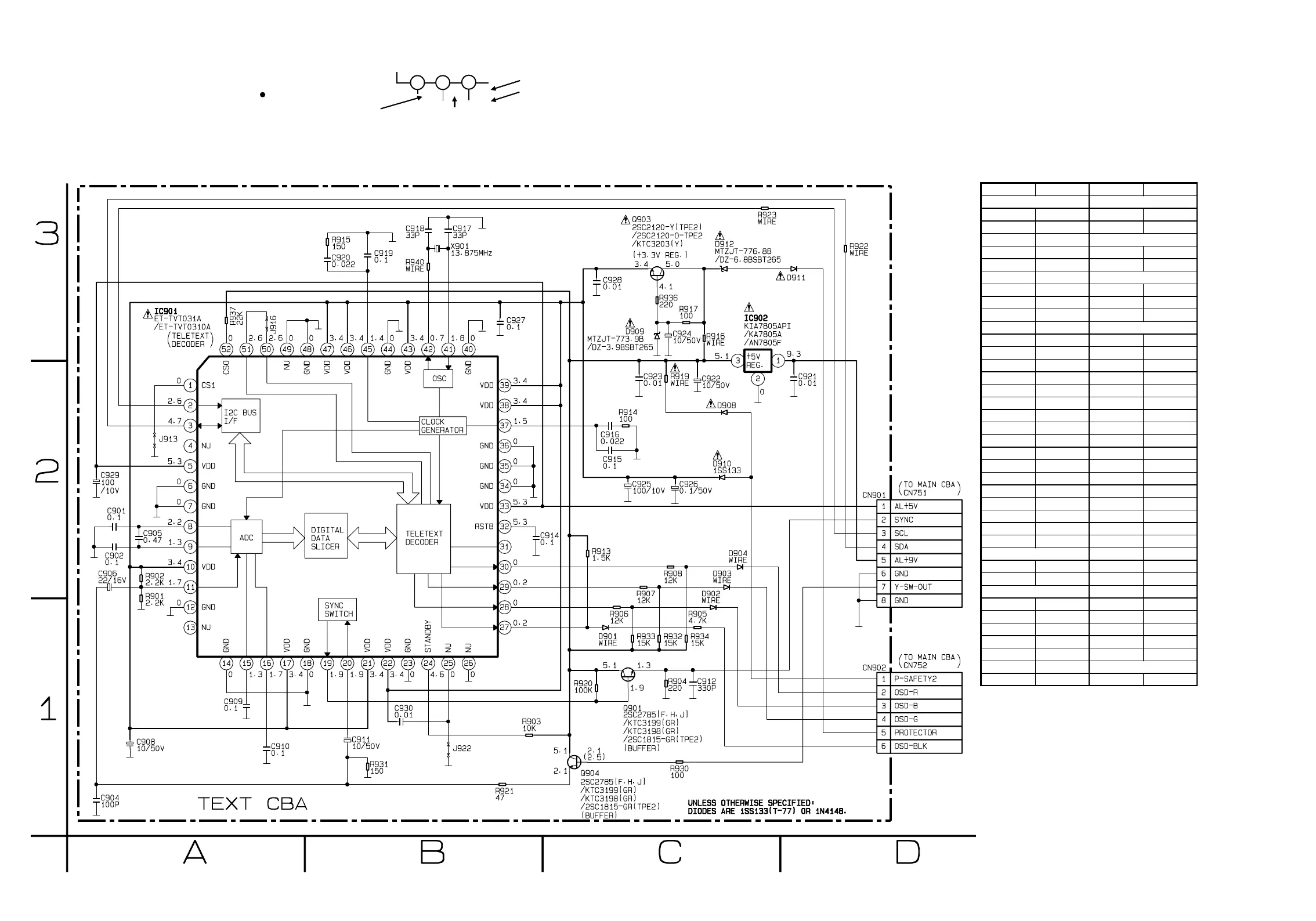

Text Schematic Diagram
T6300SCT
THE SAME VOLTAGE FOR
BOTH PLAY & REC MODES.
INDICATES THAT THE VOLTAGE
IS NOT CONSISTENT HERE.
MODE: SP/REC
PLAY MODE
REC MODE
1
2
3
5.0
5.0
(2.5)
~
“ “ = SMD
