Philips 160E1SB/93 - Page 22

!
22
Meridian 1
1 1
2 2
3 3
4 4
5 5
A A B B C C D D

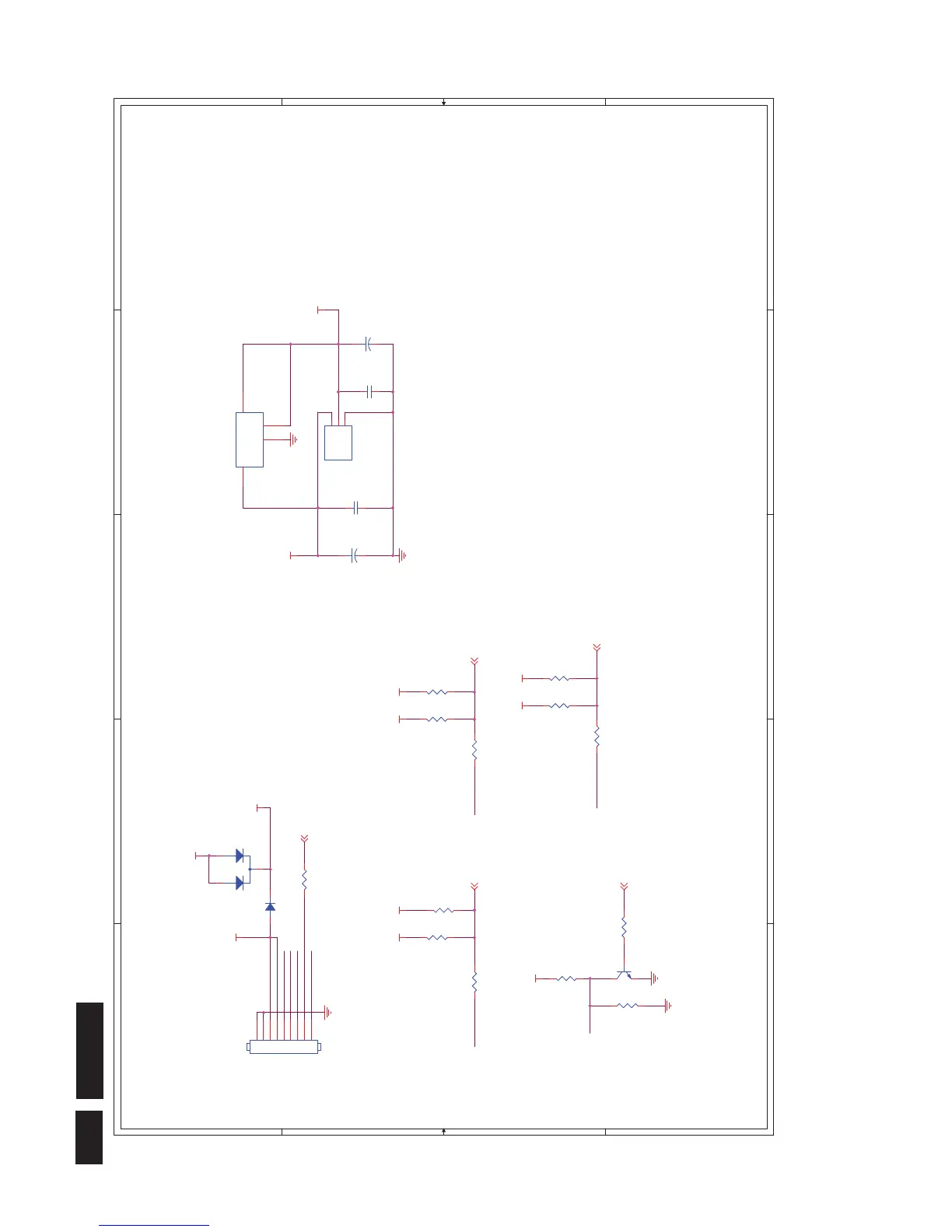

POWER
CN404 A1 C422 B4 C425 D1 C426 B3 C427 B4 C428 B3 D401 A2 D403 A2 Q406 D1 R424 C2 R425 C3 R426 B2 R437 C1 R438 C3 R440 D1 R441 B2 R442 C1 R443 C2 R444 B3 R448 B2 R457 B1 U404 B4 U406 A4
Volume BKLT-EN BKLT-VBRI C_PANEL_INDEX
BKLT-VBRI
Mute
Mute
C_PANEL_INDEX
BKLT-EN
BL_ADJ 2 Mute# 2
Volume# 2
Panel_ID# 2
BL_ON 2
VCC3.3
DSUB_5V
+5V
5VCC
VCC3.3 VCC3.3+5V
VCC3.3+5V
+5V
+5V
5VCC
C425 10K 1/16W 5%
R437 10K 1/16W 5%
R440
4K7 1/16W 5%
R424 NC/100R 1/16W 5%
R442
100R 1/16W 5%
+
C427 100UF25V
R425 NC
CN404 CONN
1 2 3 4 5 6 7 8 9
R426 NC
R441 10K 1/16W 5%
Q406 2N3904S-RTK/PS
R448 NC/100R 1/16W 5%
R457 NC
D403 SM240A
U404 AP1117D33LA
1 2 3
ADJ(GND)
VOUT
VIN
R438 NC
+
C426 100UF25V
C428 0.1uF/16V
R443 NC
U406 NC/AP1117E33LA
1
23
4
VSS
VOUTVIN
4
D401 BAT54C
C422 0.1uF/16V
R444 NC/10K 1/16W 5%
