Philips 160E1SB/93 - Main Frame Disassembly; Power and Main Board Removal

!
34
34
Meridian 1

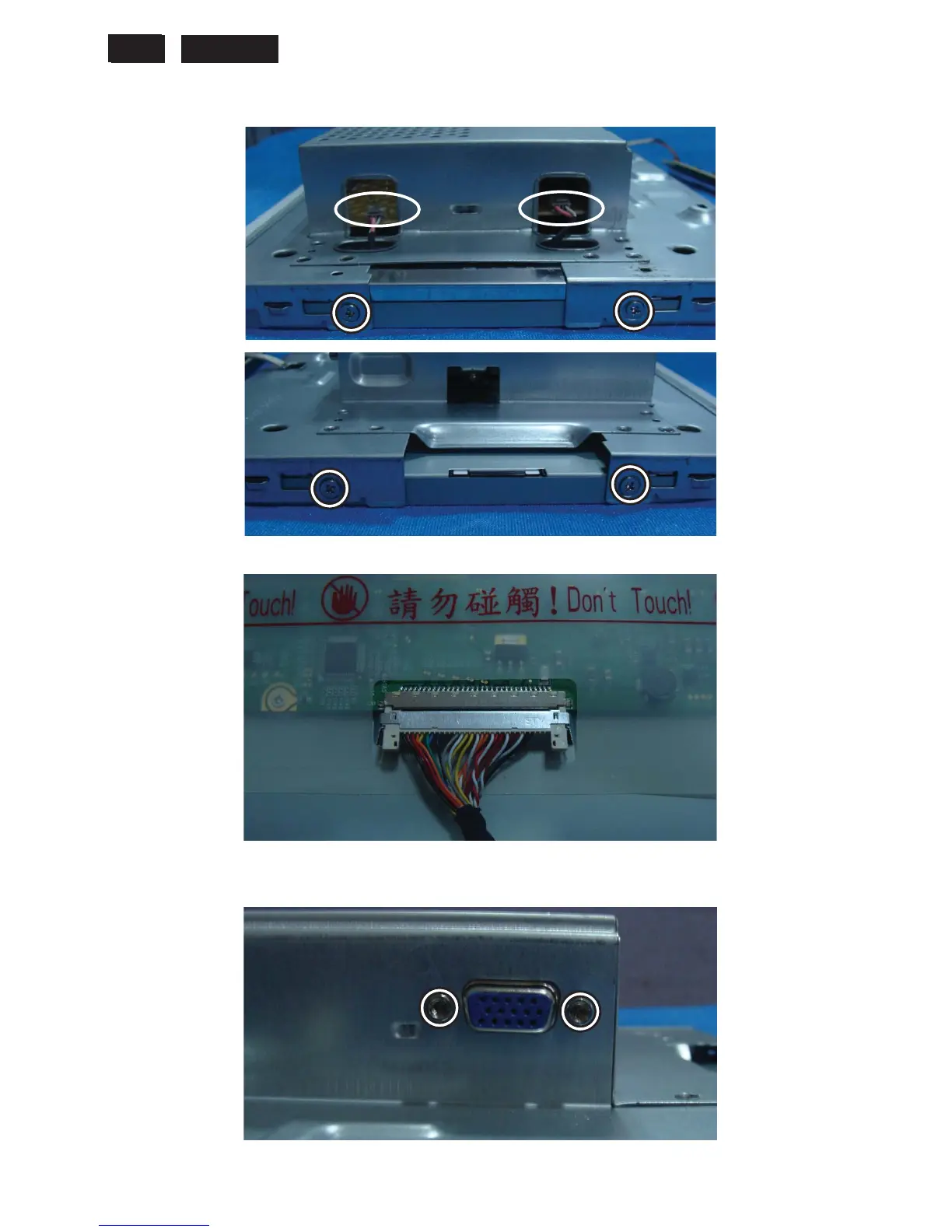

4. Remove main frame.
A. Disconnect two connectors and four screws.
B. Press to release left and right latches of LVDS cable, and then disconnect it.
5. Remove Power Board and Main Board.
A. Remove two screws.
