Technical Specs, Diversity, and Connections
EN 3TPM8.2E LA 2.
2011-Jun-01
2.3 Connections
19120_001_110511.eps
110524
11
10
3
4
7
9
1
2
5
6
8

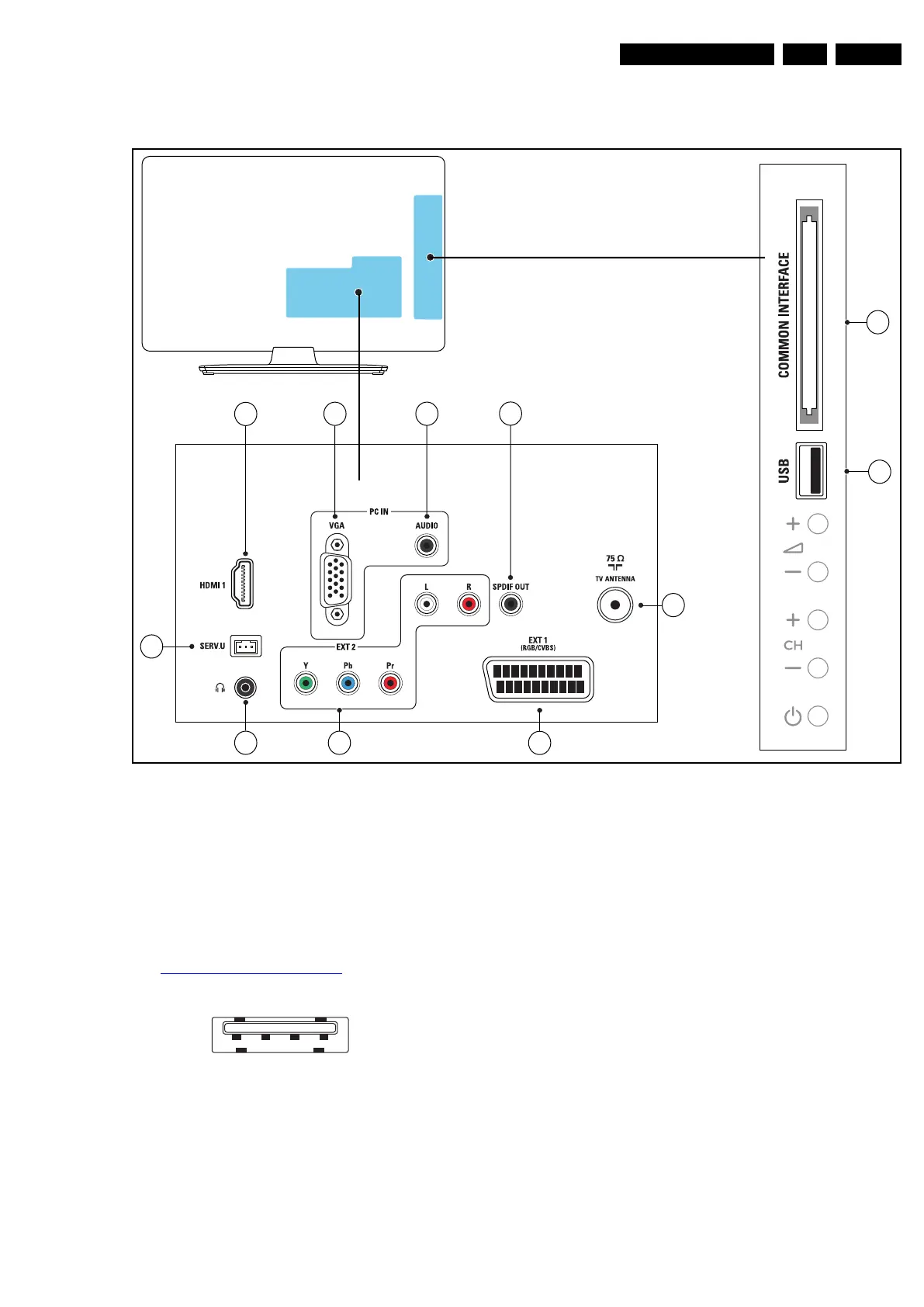

Figure 2-1 Connection overview
Note: The following connecto
r colour abbreviations are used
(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green,
Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.
2.3.1 Side Connections
1 - Common Interface
68p- See diagram
DVB-T+C_DEMOD MT5135 / CI. jk
2 - USB2.0
1 2 3 4
10000_022_090121.eps
090121
Figure 2-2 USB (type A)
1-+5V k
2-Data (-) jk
3-Data (+) jk
4-Ground Gnd H
2.3.2 Rear Connections
3 - TV ANTENNA - In
Signal input from an antenna, cable or satellite.
