Technical Specs, Diversity, and Connections
EN 4 TPM8.2E LA2.
2011-Jun-01
4 - EXT1: Video RGB/YC - In, CVBS - In/Out, Audio - In/Out
21
20
1
2
10000_001_090121.eps
090121

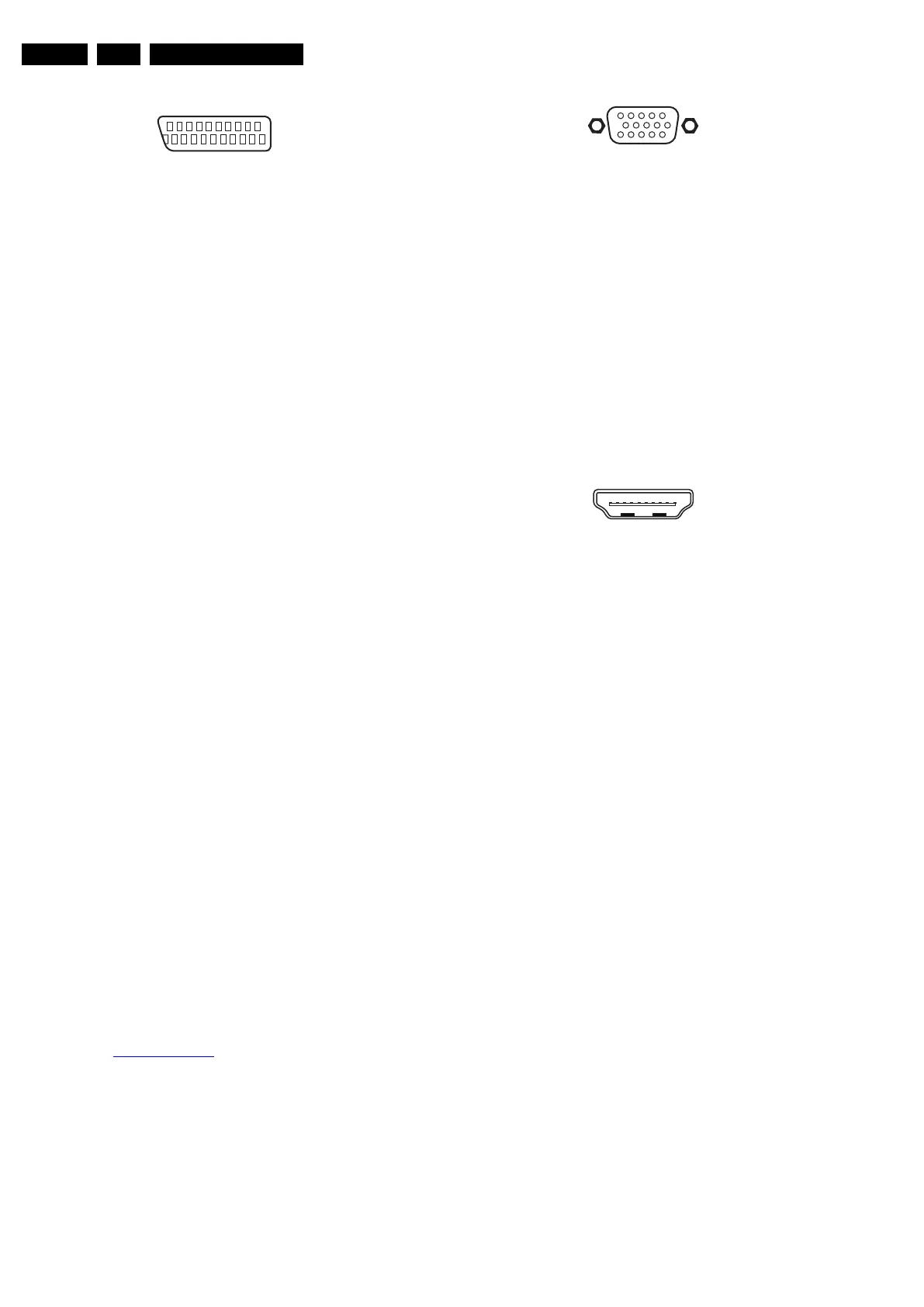

Figure 2-3 SCART connector
1-Audio R 0.5 V
RMS
/ 1 kΩ k
2-Audio R 0.5 V
RMS
/ 10 kΩ j
3-Audio L 0.5 V
RMS
/ 1 kΩ k
4-Ground Audio Gnd H
5-Ground Blue Gnd H
6-Audio L 0.5 V
RMS
/ 10 kΩ j
7-Video Blue/C-out 0.7 V
PP
/ 75 Ω jk
8-Function Select 0 - 2 V: INT
4.5 - 7 V: EXT 16:9
9.5 - 12 V: EXT 4:3 j
9-Ground Green Gnd H
10 -n.c.
11 -Video Green 0.7 V
PP
/ 75 Ω j
12 -n.c.
13 -Ground Red Gnd H
14 -Ground P50 Gnd H
15 -Video Red/C 0.7 V
PP
/ 75 Ω j
16 -Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 Ω j
17 -Ground Video Gnd H
18 -Ground FBL Gnd H
19 -Video CVBS 1 V
PP
/ 75 Ω k
20 -Video CVBS/Y 1 V
PP
/ 75 Ω j
21 -Shield Gnd H
5 - EXT2: Video YPbPr - In, Audio - In
Gn - Video - Y 1 V
PP
/ 75 Ω jq
Bu - Video - Pb 0.7 V
PP
/ 75 Ω jq
Rd -Video - Pr 0.7 V
PP
/ 75 Ω jq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ jq
Rd -Audio - R 0.5 V
RMS
/ 10 kΩ jq
6 - Head phone (Output)
Bk - Head phone 80 - 600 Ω / 10 mW ot
7 - Cinch: S/PDIF - Out
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 Ω kq
8 - Audio - In: Left / Right, VGA
Gn - Audio L/R in 0.5 V
RMS
/ 10 kΩ jq
9 - PC IN:VGA
1
6
10
11
5
15
10000_002_090121.eps
090127
Figure 2-4 VGA connector
1 - Video Red 0.7 V
PP
/ 75 Ω j
2-Video Green 0.7 V
PP
/ 75 Ω j
3-Video Blue 0.7 V
PP
/ 75 Ω j
4-n.c.
5-Ground Gnd H
6-Ground Red Gnd H
7-Ground Green Gnd H
8-Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 - Ground Red Gnd H
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
10 - HDMI: Digital Video, Digital Audio - In
10000_017_090121.eps
090428
19
1
18 2
Figure 2-5 HDMI (type A) connector
1-D2+ Data channel j
2-Shield Gnd H
3-D2- Data channel j
4-D1+ Data channel j
5-Shield Gnd H
6-D1- Data channel j
7-D0+ Data channel j
8-Shield Gnd H
9-D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 - +5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
11 - Service / UART
1-Ground Gnd H
2-UART_TX Transmit k
3-UART_RX Receive j
2.4 Chassis Overview
Refer to 9. Block Diagrams for PWB/CBA locations.
