222E2 LCD 33

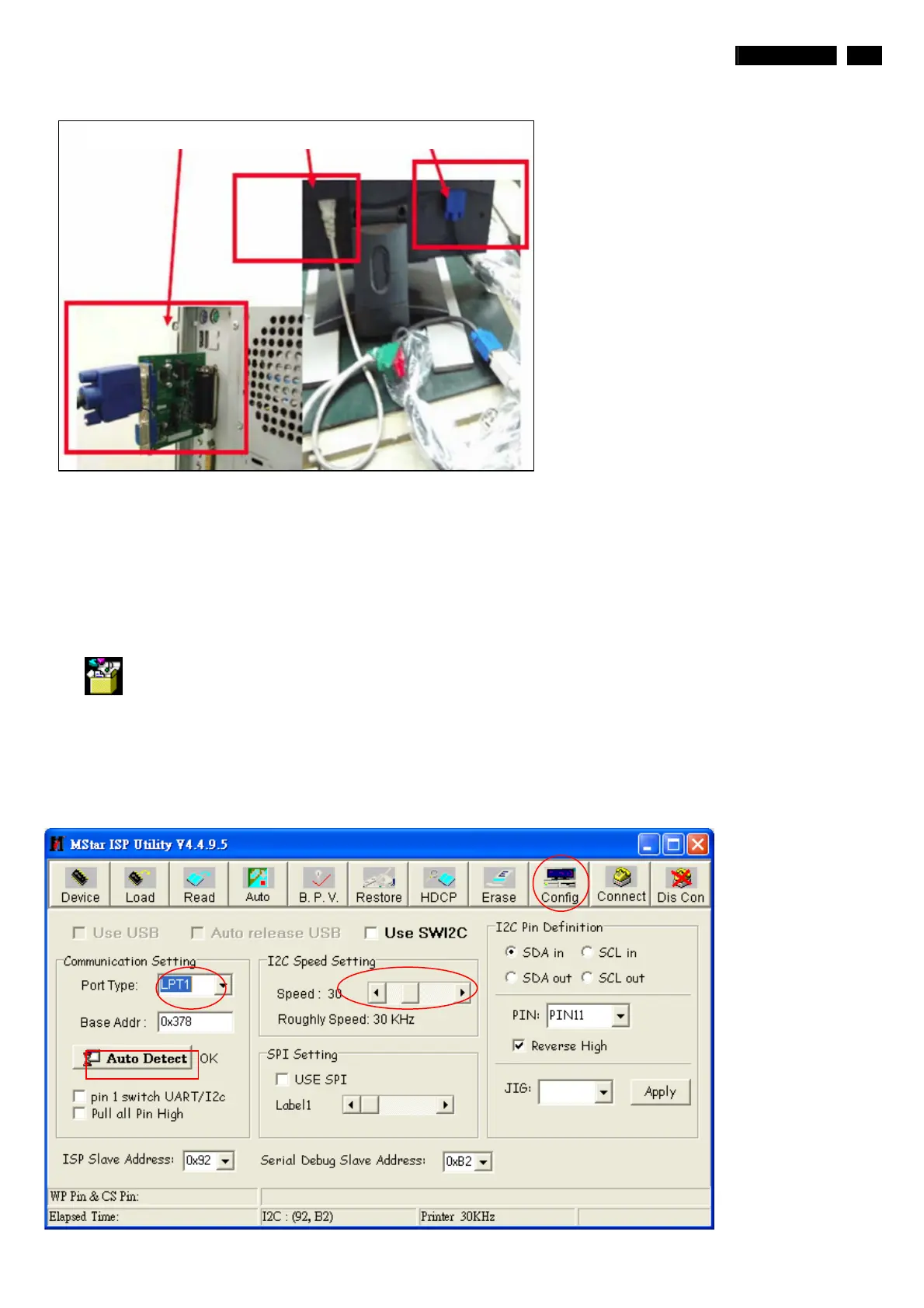

Firmware Upgrade for CPU
2. Software prepare
MStar ISP Utility V4.4.9.5
MSTAR
ISP Tool 4.4.9.5
DebugTool_V6.7_200
˗ˍ˯˧˿˯ˠ˦˧˔˥˯
˜˦ˣ˲˧˿ʳˇˁˇˁˌˁˈˁ˴
Step 1: Press MStar ISP Tool
Step 2: Choose Option “Config”, set Port type to “LPT1”; set I2C Speed Setting to 30 , Press “Auto Detect” till
the tool shows “ok”
Link “I2C BD, Power cable and Signal cable
