12 222E2 LCD
Mechanical Instruction
Preparation before disassemble
1.Clean the room for disassemble
2.Identify the area for monitor
3.Check the position that the monitors be placed and the quantity of the monitor ;prepare the area for material flow;
according to the actual condition plan the disassemble layout
4.Prepare the implement, equipments, materials as bellow:
1) Press-fixture
2) working table
3) Screw-driver
4) knife*1
5) glove
6) cleaning cloth
7) ESD protection

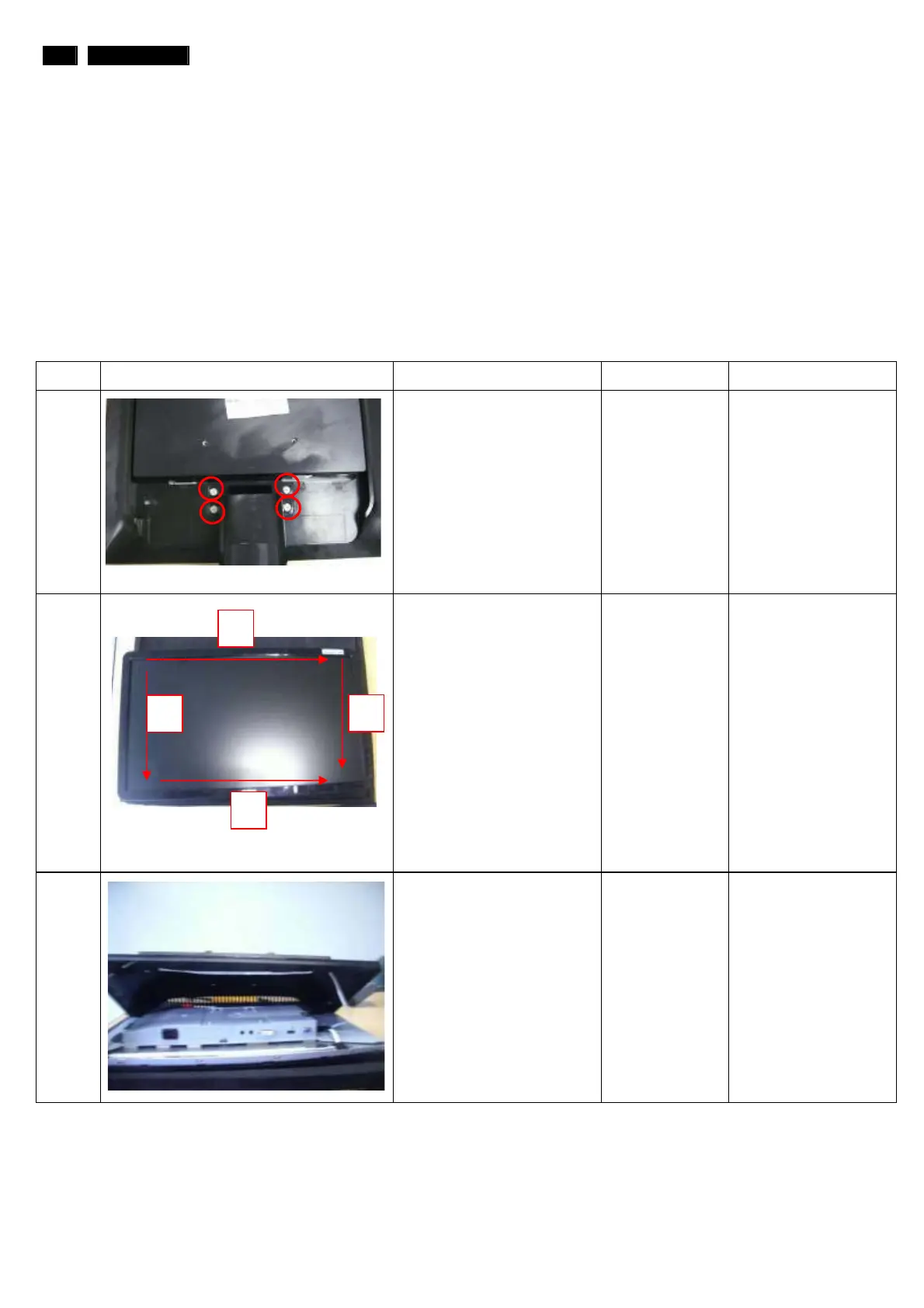

item picture Operation Tool Notes
1 Tear off four piece of
Mylar
Disassemble the stand
Æ 4 screws
Screw-driver
2 disassembly the bezel from
the monitor, notice the
disassembly order :
1.Top (1) parts of bezel
2.Left (2) parts of bezel
3.Bottom (3) parts of bezel
4. Right (4) parts of bezel
Don’t draw the BZL
When disassembly
the bezel ,
notice don’t bend the
C/B .
man must wear glove
The purpose is loose
the BZL
3 Turn over the monitor ,
Bring the Rear cover from
the monitor
1
2
3
4
To Next Page
