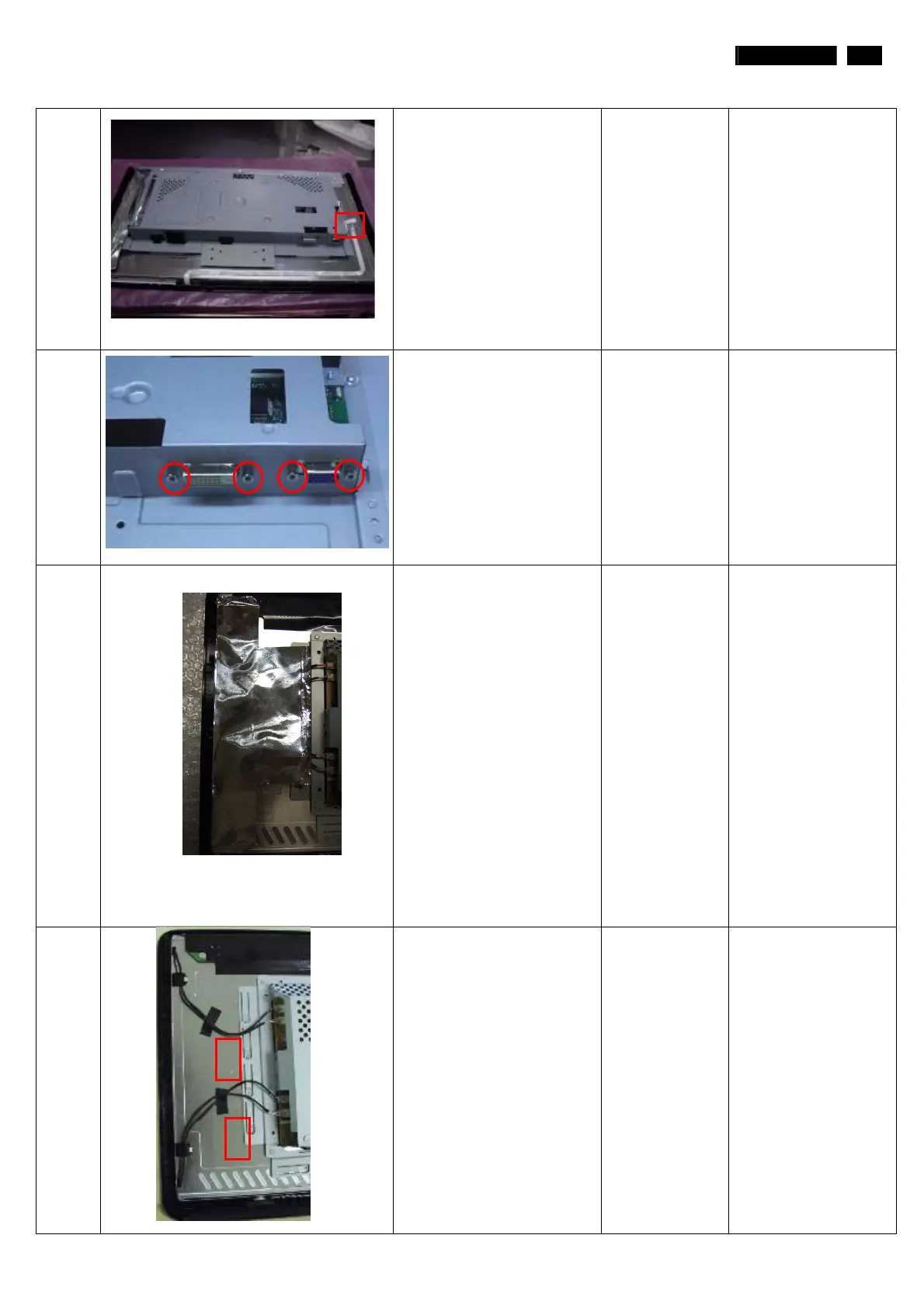

Mechanical Instruction
4 Draw the control board
cable
Take the entire internal
mechanism from Bezel and
then put it on the cushion
5 Disassembled the
Main-BKT : hexagonal
screw *4
Screw-driver
6 Tear off al foil on the left of
Main-BKT
7
For AUO panelΚTear off the
acetic tape
Pull out the lamp cables
Notes the below PIC
Then the designed
Main-BKT will help to
pull out the wires
Man can raise the
Lock of Lamp and
then Pull out the lamp
easily
