Mechanical Instruction

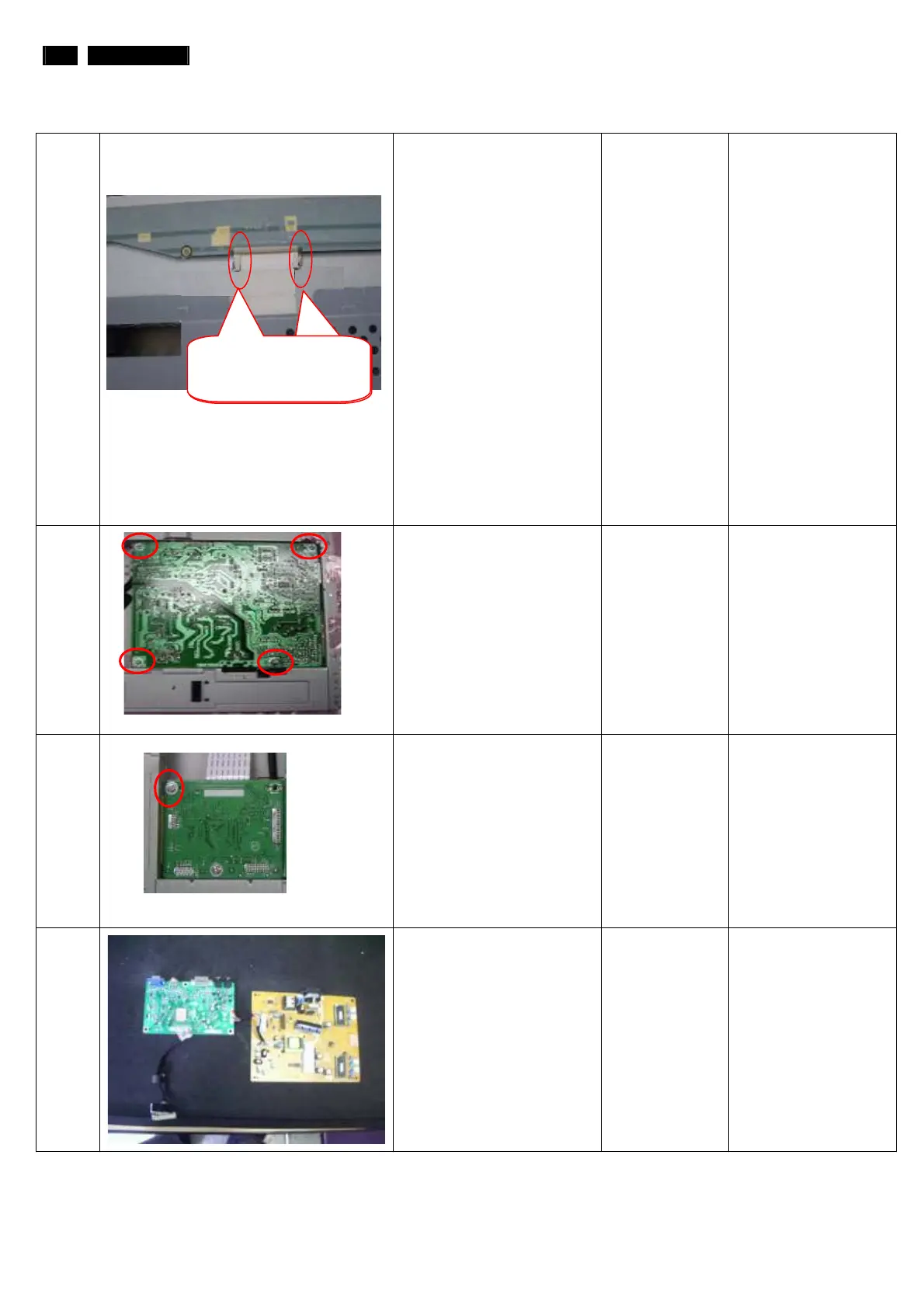

8 Unlock the FFC by using
two hands(see note).
Please carefully use
two hands(one hand
presses the
locking-latch of FFC
cable’s housing, and
at the same time
another hand pulls
out the FFC cable.)
for this step to avoid
from deforming the
terminals of
positive-locking type
FFC cable.
9 Disassemble the Power
board
Æ 4 screws
Screw-driver
10 Disassemble the ITF-board
Æ 1 screws
Screw-driver
11 Take the PCBA from
Main-BKT and then put it
on the cushion
The locking-latch
of LVDS cable’s
The locking-latch
of FFC cable’s
