Philips 226V3LSB/00 - Board Diagrams & Schematics; Block Diagrams

15
Meridian 3

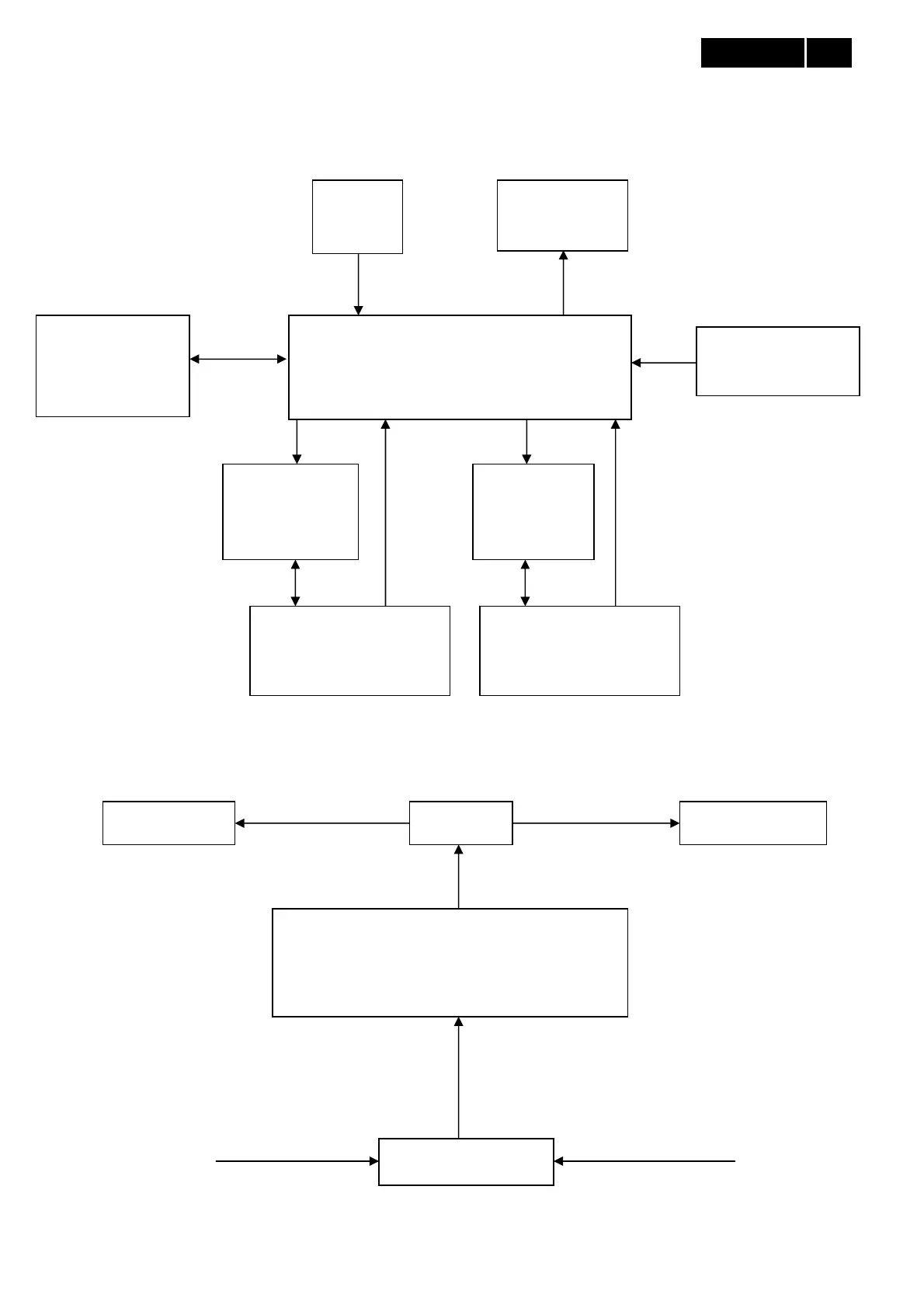

5. Block Diagram
5.1 Scaler Board
5.2 Audio board(For 226V3LA)
Key control Interface
(CN404)
Flash Memory
Pm25LD020C
(U402)
Panel Interface
(CN409)
12MHZ
(X401)
Scaler IC NT68660UFG
(Include MCU, ADC, OSD)
(U401)
H sync
V sync
RGB
D-Sub
Connector
(
CN101
)
EEPROM
CAT24C02WI
(U101)
DVI
Connector
(
CN102
)
EEPROM
CAT24C02WI
(U105)
Audio decoder
PAM8007NHR
(u601)
CN601
Power
supply=5v
Power
Board
Volume control
Scaler
board
CN604 Speaker (left) Speaker (right)
