7.4.7 Audio Mute circuit
This circuit will provide a “high-to-low” pulse when the +5 V
SSB power line goes low. This will trigger the related audio
mute circuit, preventing the audio circuit making uncontrolled
sounds.

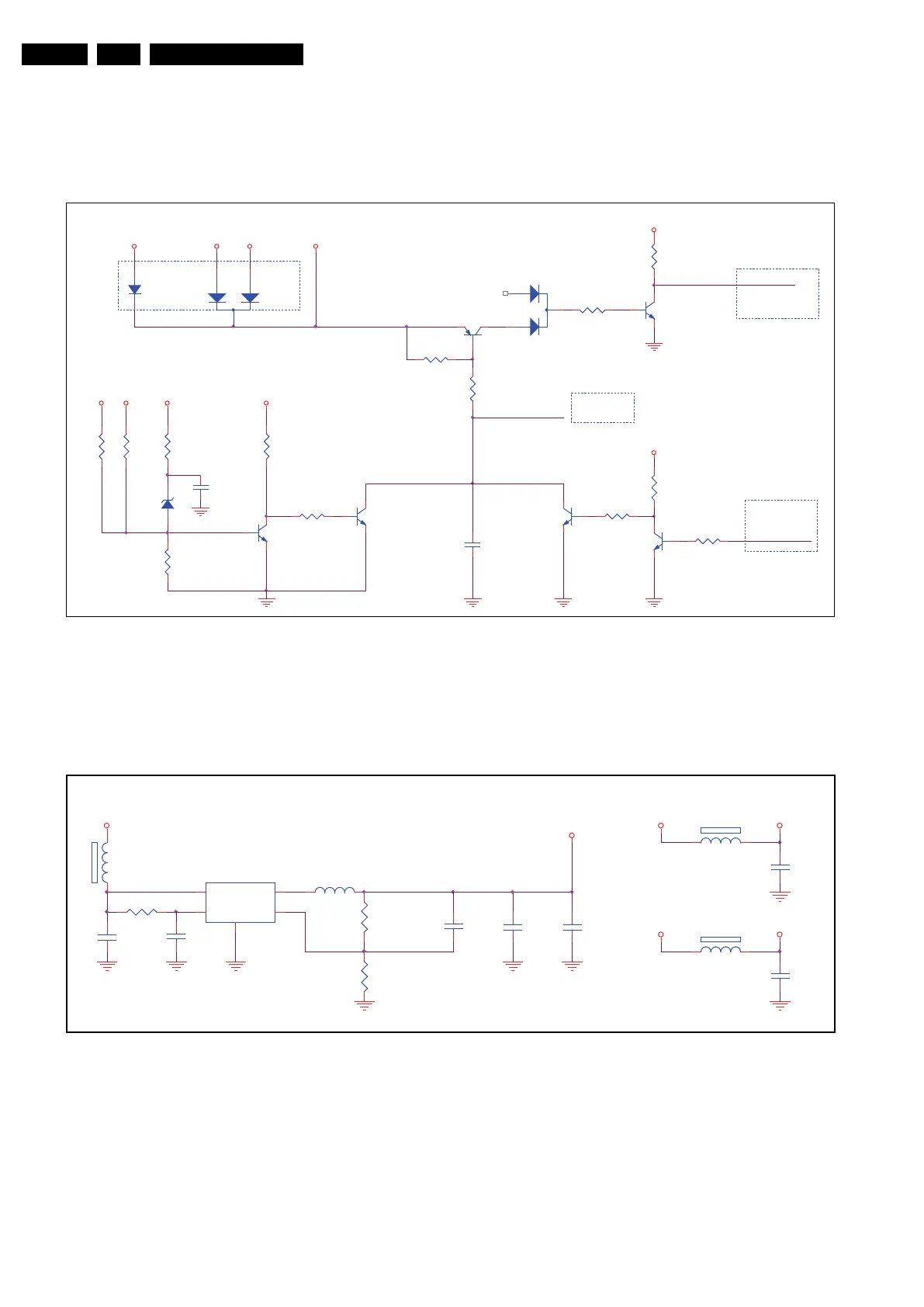

Figure 7-10 Audio Mute circuit
7.4.8 AV33 and DV33 (U701)
The circuit around U701 will provide the main 3.3 V power
supply to the SSB.
Figure 7-11 AV33 and DV33 (U701)
7.4.9 Tuner
The tuner covers as followed:
• VHF LOW BAND: from 49.75 MHz to 144.25 MHz.
• VHF HIGH BAND: from 156.25 MHz to 448.25 MHz.
• UHF BAND: from 456.25 MHz to 863.25 MHz.
