30
f SPDIF OUT
Digital audio output to home theatres
and other digital audio systems.
g HDMI 1
Digital audio and video input from high-
definition digital devices such as Blu-ray
players.
Connections via DVI or VGA require an
additional audio cable (see ‘Connect a
computer’ on page 33).
h SERV. U
For software update.
AUDIO
IN
SPDIF OUT

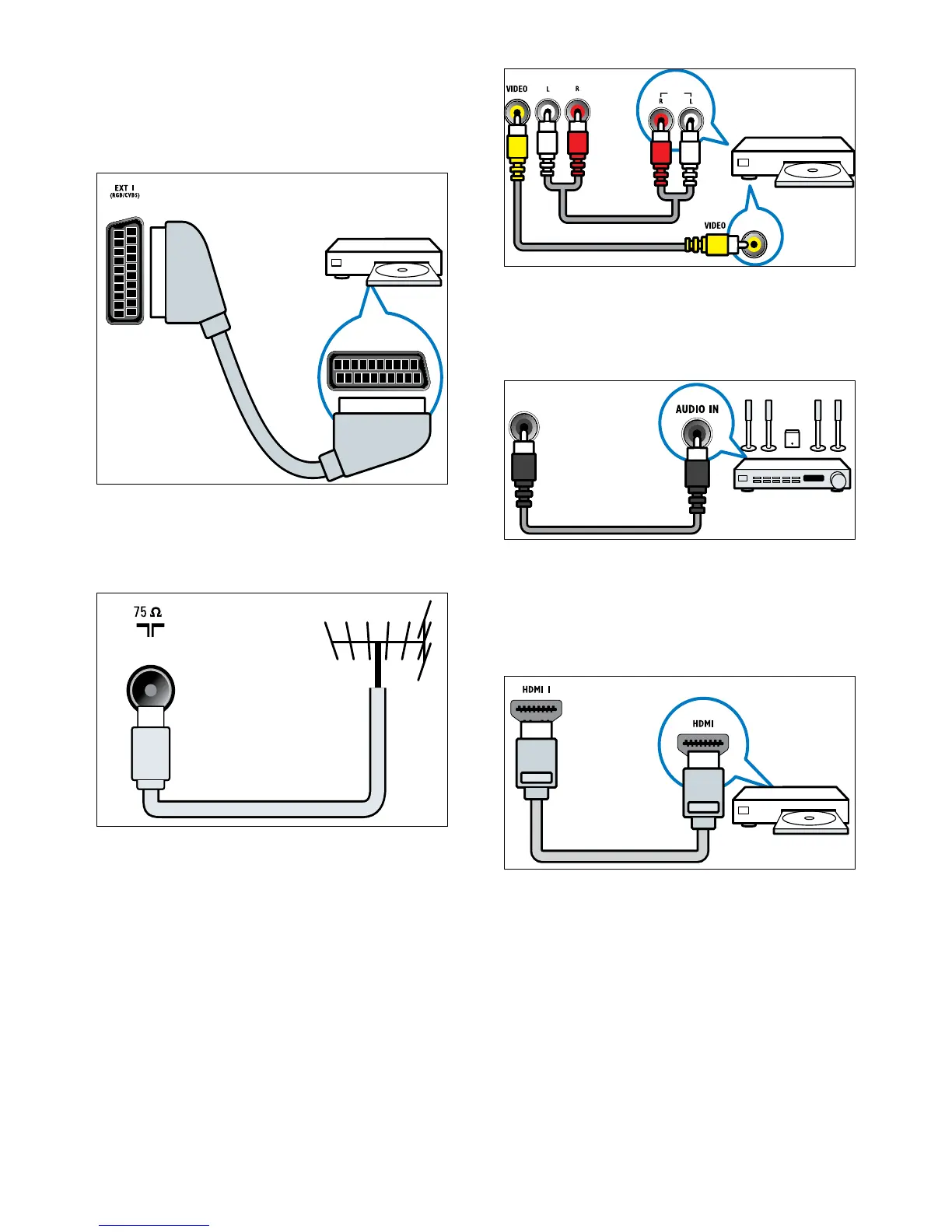

c EXT 1 (CVBS and RGB)
Analogue audio and video input from
analogue or digital devices such as DVD
players or game consoles.
d TV ANTENNA
Signal input from an antenna, cable or
satellite.
e AV OUT (VIDEO OUT and AUDIO
OUT L/R)
Audio and video output to analogue
devices such as another TV or a recording
device.
TV ANTENNA
EN
