Philips 22PFT5403/56 - Page 38

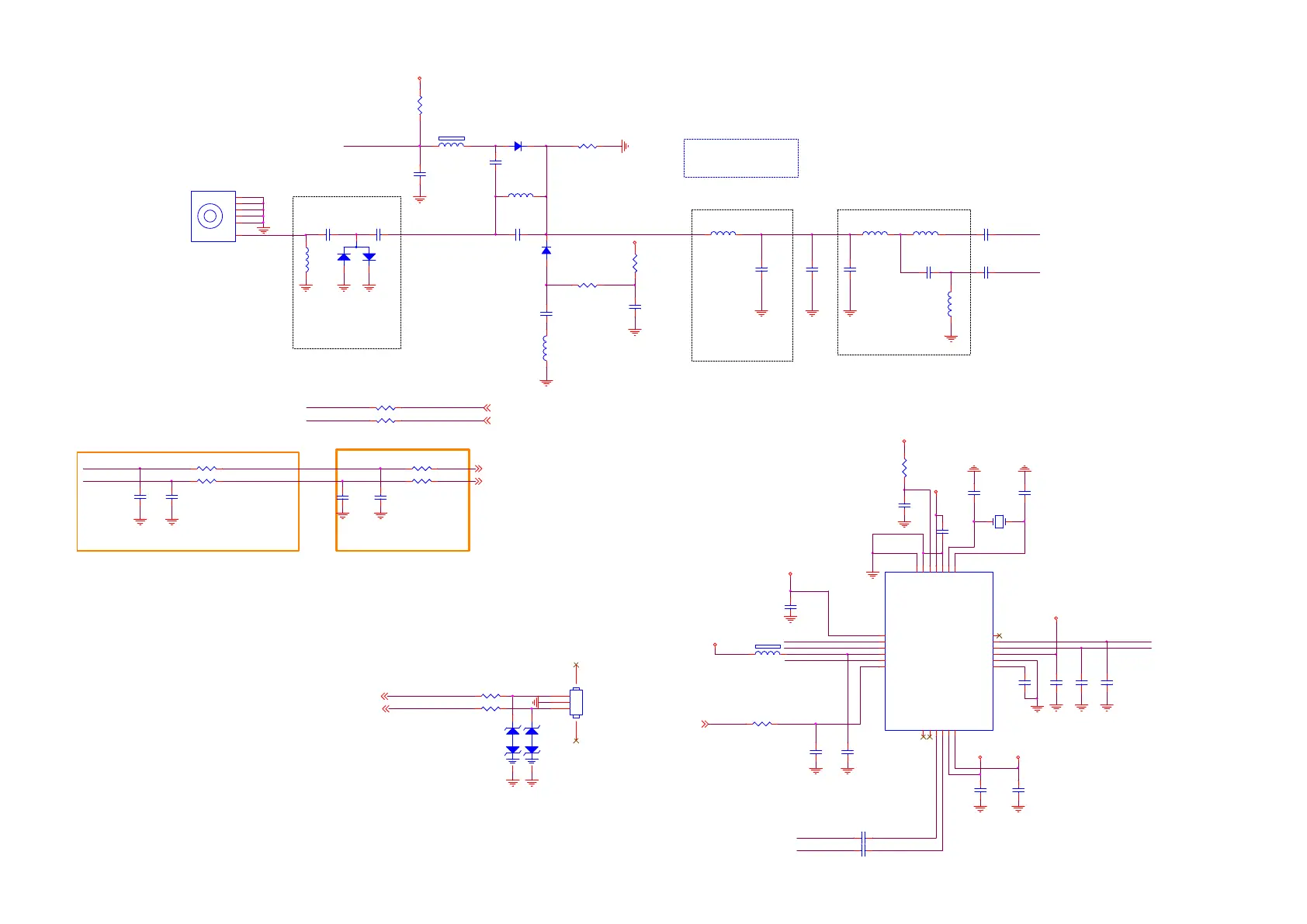

9-2-8 Tuner/Debug
LNA_INN
LNA_INP
UART-TX3,6
UART-RX3,6
For tuner sensitivity : 20170614
C137, L108

0
稼﹊
>
锣
BOM
穝
C137 33pF 50V
L108 3.3nH
LNA_INN
LNA_INP
Near Tuner Close to Scaler
RESET
T_SDA
T_SCL
IF_FAT_IN+
IF_FAT_IN-
UART-RX
R170 100R 1/16W 5%
R171 100R 1/16W 5%
ZD109
AZ5123-01H.R7G
12
ZD110
AZ5123-01H.R7G
12
UART-TX
10mil
033G3802 3 : high 6.0mm
311GW200G03BAL : high 11mm
CN402
CONN
1
2
3
45
E-PAD
MxL661
From Scaler
C123
1UF 10V
U102
MxL661-AG-R
VDD_3p3
1
LNA_INP
2
LNA_INN
3
VDD_1p8
4
AGC_2/GPO_3
5
AGC_1
6
IF_OUTP_2/GPO_1
7
IF_OUTN_2/GPO_2
8
IF_OUTP_1
9
IF_OUTN_1
10
VDD_3p3
11
VDD_1p8
12
VDD_1p2
13
GND_DIG
14
VDD_IO
15
SCL
16
SDA
17
CLK_OUT
18
XTAL_N
19
XTAL_P
20
GND_XTAL
21
VDD_1p8
22
RESET_N
23
AS
24
E-PAD
25
L106
8.2NH
FB101
1KOHM
1 2
FB108
NC 1000R
1 2
L102
NC 82nH
D104
BAV99
3
1 2
X102
16MHz
1 2
C144
1UF 10V
Optional components required for
ESD protection. It is highly
recommended that some form of
external ESD protection is
implemented.
C102
1NF
Optional components
of wifi filter
Part Value
L16 13nH
C101 2.7pF
C160
NC 33pF 50V
T_SDA
C137
33PF 50V
Optional components
of wifi filter
Part Value
L16 13nH
C101 2.7pF
T_SCL
RF CONN
TU101
ANT
1
2
2
3
3
4
4
5
5
6
6
C127
22PF 50V
C166
10N 50V
R124 100R 1/16W 5%
C197
NC 100NF 16V
R137 150 OHM 1% 1/16W
C176
NC/33PF 50V
C139
NC 10N 50V
C749
47PF 50V
R183
510K 1%
C163
100NF 16V
R101
NC 1K 1/16W 1%
L101
NC 2.2nH
C159
NC 100NF 16V
C173 4.7NF 50V
C750
47PF 50V
C140
NC 10N 50V
R127
NC 1.5K 1/16W
L104
NC 82nH
C167
100NF 16V
R126
100R 1/16W 5%
R129
NC 1K 1/16W 1%
C172
2.2nF 50V
C132
1NF
C751
NC
R148 0R05 1/16W
C126
22PF 50V
C752
NC
C169
5.6pF 50V
D102
NC BAR64-02V
R128 0R05 1/16W
C104
1pF 50V
C136
NC 1NF
C168 4.7NF 50V
D103
NC BAR64-02V
C171
100NF 16V
C135
100NF 16V
C134
1NF
C175
NC/33PF 50V
L103
27nH
C103
1NF
C170
100NF 16V
L108
3.3nH
R102
NC 1K 1/16W 1%
R121 100R 1/16W 5%
For 715G6689-M0A-001:
C1204,C1214-->NC,R1214,R1234-->0ohm,C129,C118,C175,C176-->NC,R128,R148-->0ohm
L107
27nH
R136 150 OHM 1% 1/16W
VDD_1P8
3V3T
VDD_1P8
3V3T
3V3T
3V3T
VDD_1P8
VDD_1P8
3V3T
MI2C-SCL 3,8
MI2C-SDA 3,8
DIFM 3
IFAGC_T3
DIFP 3
Notch_On1
MI2C-SCL
MI2C-SDA
E-PAD
Notch_On1
IF_FAT_IN+
IF_FAT_IN-
