Philips 237E4QSD/93 - Page 12

Meridian 4
12

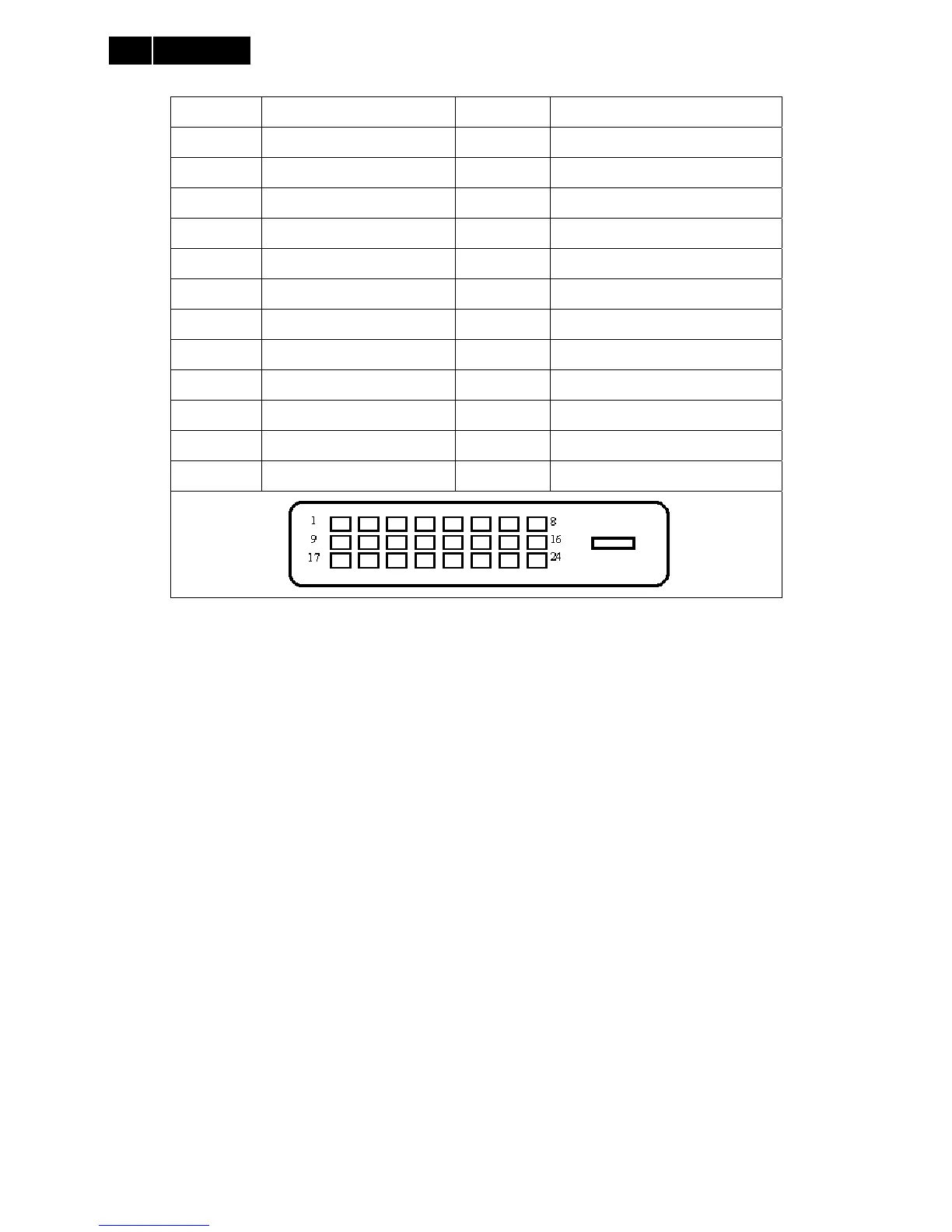

Digital Connectors (Option)
Pin No. Signal Name Pin No.
Signal Name
1
T. M . D. S . d a t a 2 -
13
No Connect
2
T. M . D. S . d a t a 2 +
14
+5V Power
3
T.M.D.S. data2 shield
15
Ground (for +5V)
4
No Connect
16
Hot plug detect
5
No Connect
17
T. M . D. S . d a t a 0 -
6
DDC clock
18
T. M . D. S . d a t a 0 +
7
DDC data
19
T.M.D.S. data0 shield
8
No Connect
20
No Connect
9
T. M . D. S . d a t a 1 -
21
No Connect
10
T. M . D. S . d a t a 1 +
22
T.M.D.S clock shield
11
T.M.D.S. data1 shield
23
T. M . D. S . c l o c k +
12
No Connect
24
T. M . D. S . c l o c k-
