12. ISP Instruction
When do the parts, need the tools as follow:
1. An i486 (or above) personal computer or compatible.
2. Microsoft operation system Windows 95/98/2000/XP.
3. USB port driver and ISP tool “EasyWrite V2011.0209.exe”
4. ISP JIG (715GT089-B/C) x1
5. Power cable x 2, VGA cable x1, USB cable x 1
6. The monitor and the new software

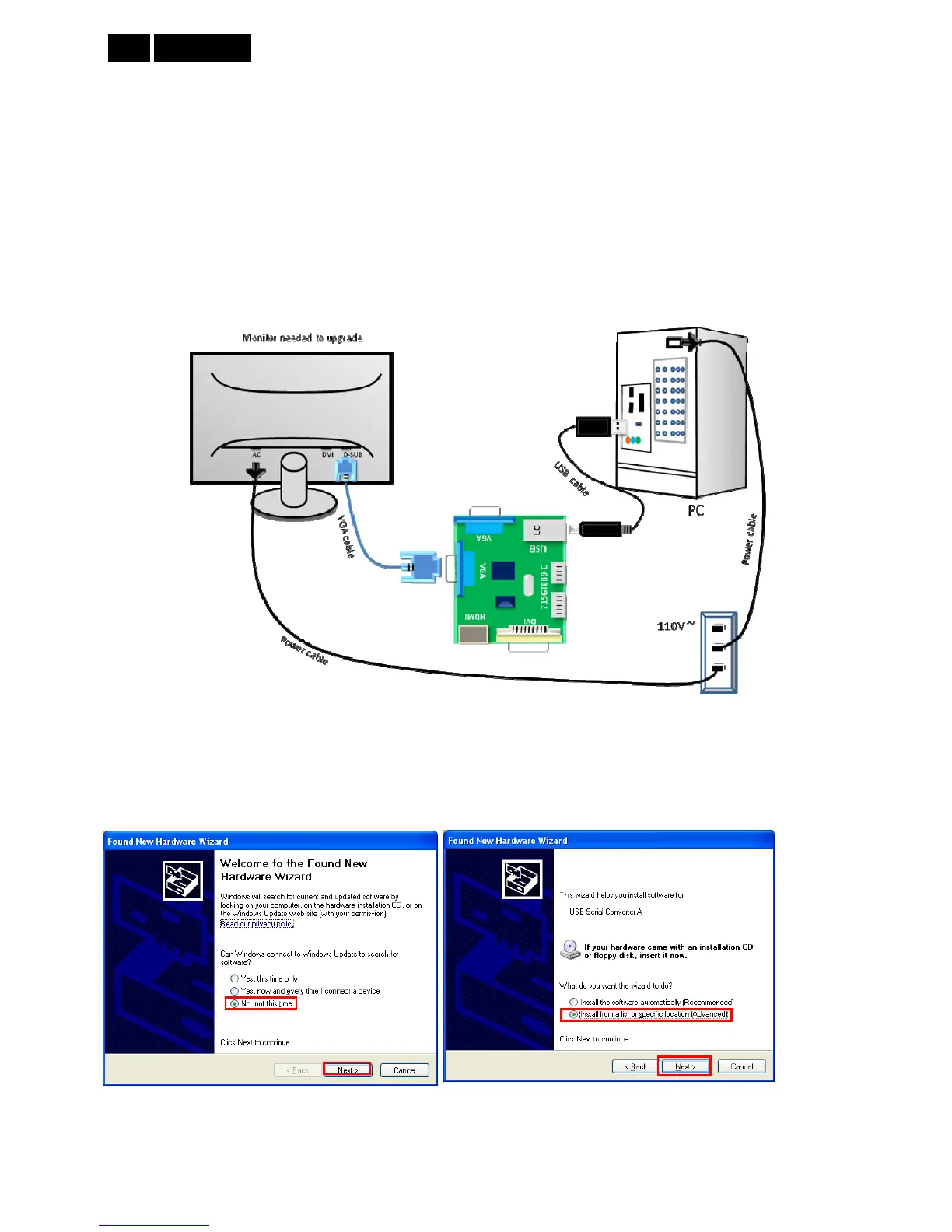

12.1 Connection
12.2 Install the USB driver
When insert the USB cable to PC USB port, will pop up a Hardware Wizard to help you install the USB driver if you
use this ISP board first time. You can install it successfully as the below instruction step by step.
Remark: The USB driver files path: D:\FTC100103(Mstar)\FTCUSB.INF
