Philips 237E4QSD/93 - Page 60

60

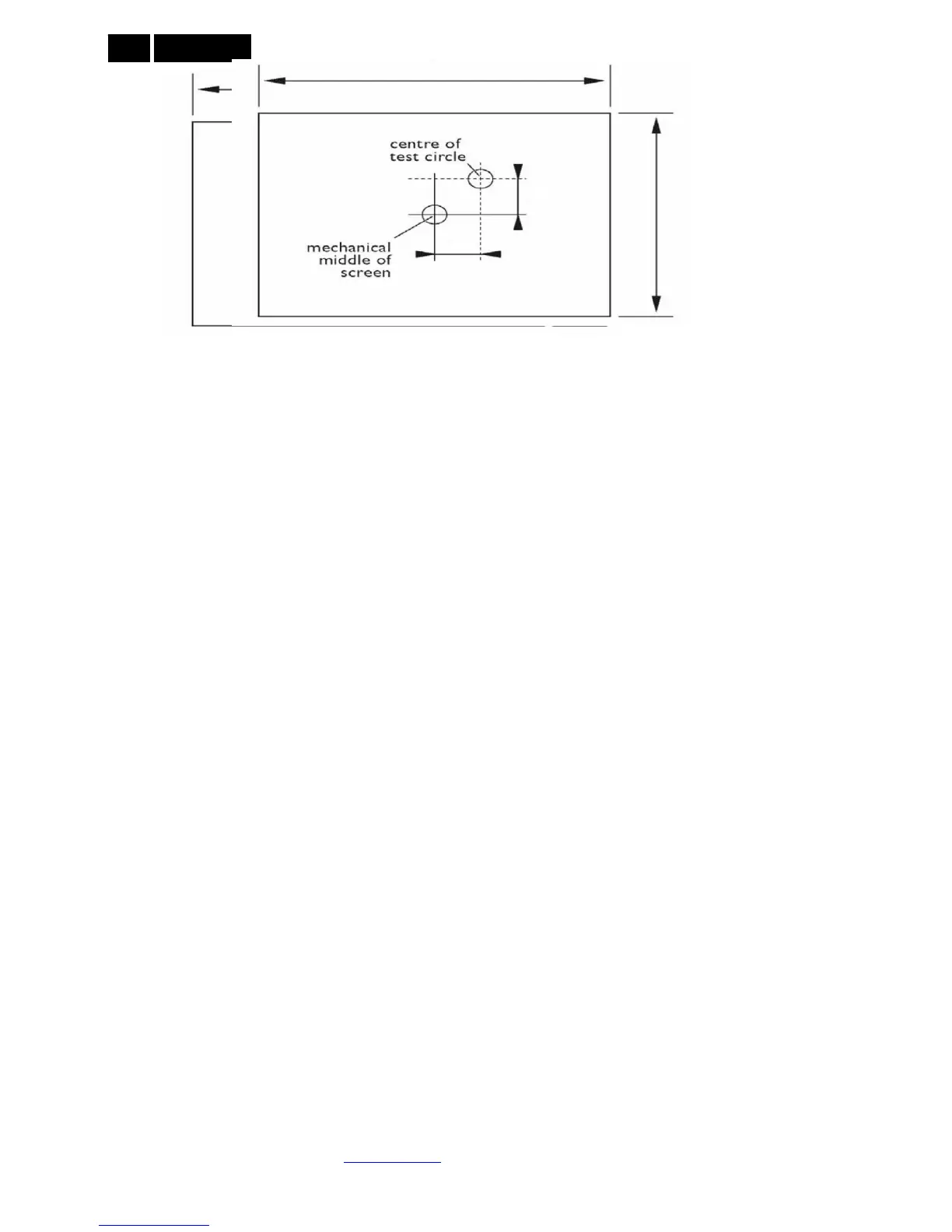

Meridian 4
Over Scan -
1. RGB signal : OFF (no this function)
2. YUV signal : (Video timming) ON (Be use and set ON/OFF)
(But only 1080p define is OFF )
PC timing: to follow PC timing table
TMDS/+5V/DDC/HPD/CEC Signals
(TMDS Signal)
Termination Supply Voltage AV
CC
: 3.3V±5%
Differential Voltage Level : 150mV – 1200mV
Common Mode Voltage : (AV
CC
– 300mV) – (AV
CC
– 37.5mV)
Differential Sensitivity : 150mVp-p
Maximum differential Voltage : 1560mVp-p
(+5V Power)
Power Supply Voltage : 4.7V – 5.3V
Maximum Current Consumption : 50mA
(DDC Signal)
Maximum Capacitance : 50pF
(HPD Signal)
High Voltage Level : 2.4V – 5.0V
Low Voltage Level : 0 – 0.4V
Output Resistance : 1KΩ±20%
(CEC Signal, not supported by this model)
Input Low Voltage : < 0.8V
Input High Voltage : > 2.0V
Output Low Voltage: 0 – 0.4V
Output High Voltage: 2.5V – 3.6V
Pull-up Resistor: 2.7KΩ±10%
Leakage Current in standby/off : < 1.8uA
Maximum Capacitance: 100pF
4). DisplayPort ( option , refer to Quick specification table)
Follow DisplayPort 1.1
specification.
