Circuit Descriptions
EN 23TPS14.1A LA 7.
2014-Oct-24
back to
div.table
7.1.3 SSB Cell Layout

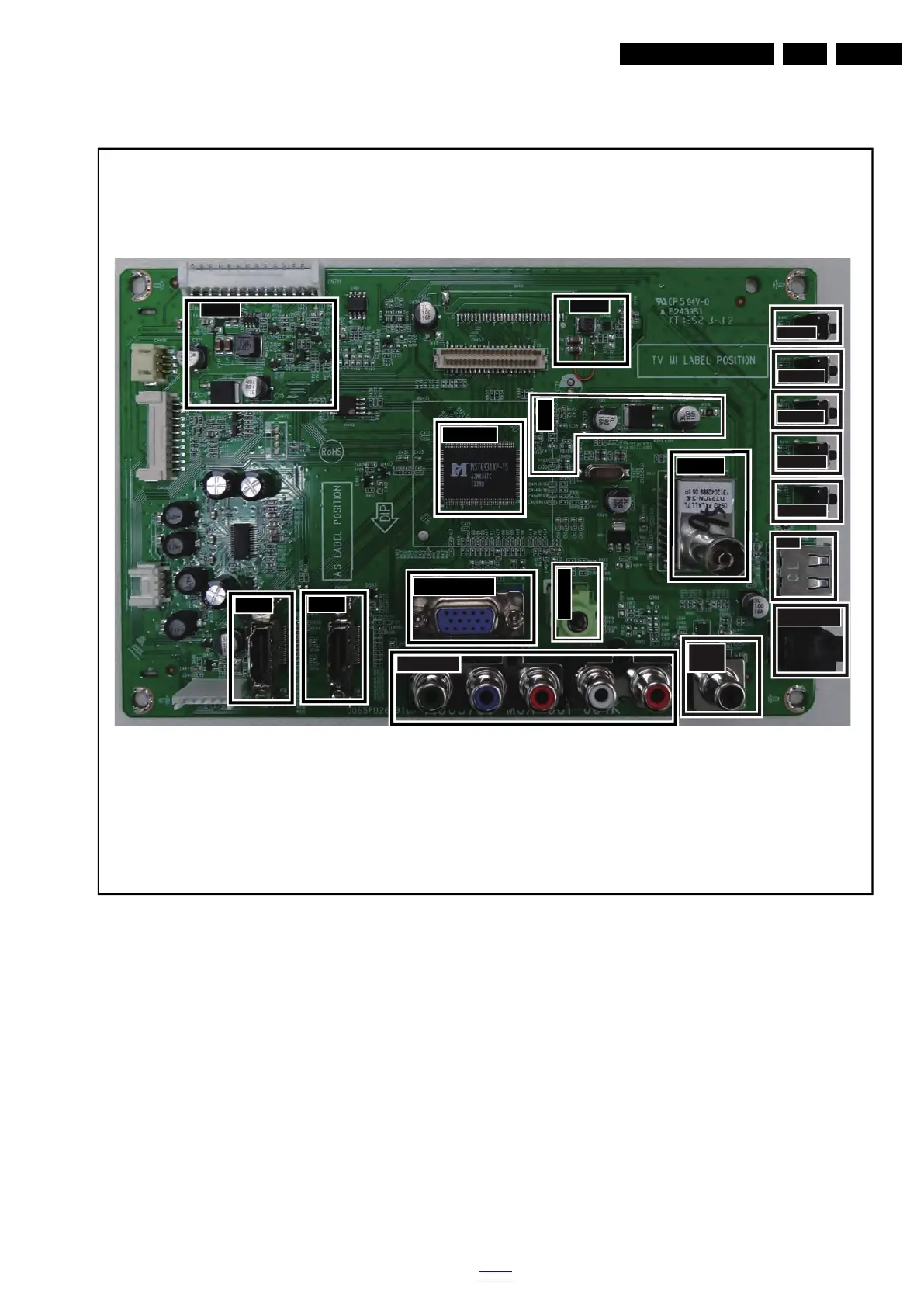

Figure 7-1 SSB layout cells (top view) (for 24PHA4x09)
19660_201.eps
Power Button
Channel down
Volume down
Channel up
Volume up
Analog Input
DDR
USB
Headphone
MST6931
ANALOG I/O
SPDIF
OUT
TUNER
HDMI
HDMI
Audio PC In
DC/DC
DC/DC
