7.1.4 SSB Cell Layout

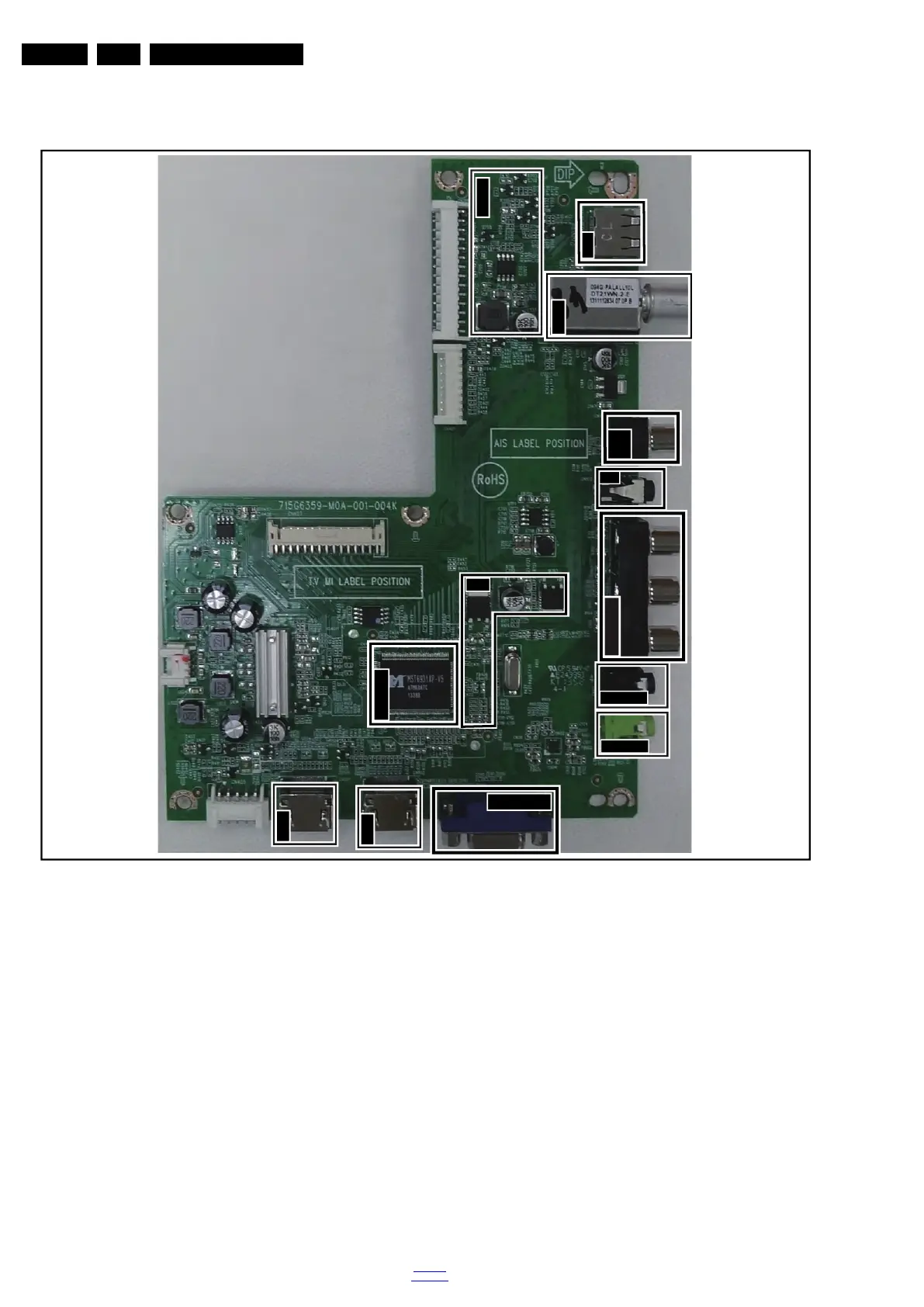

Figure 7-2 SSB layout cells (top view) (for 32"/40"/50"PxA4509)
19660_200.eps
DDR
MST6931
USB
TUNER
HDMI
HDMI
DC/DC
AV
Headphone
Audio PC In
SPDIF OUT
ANALOG I/O
Analog Input
