22
TPE1.0U LA

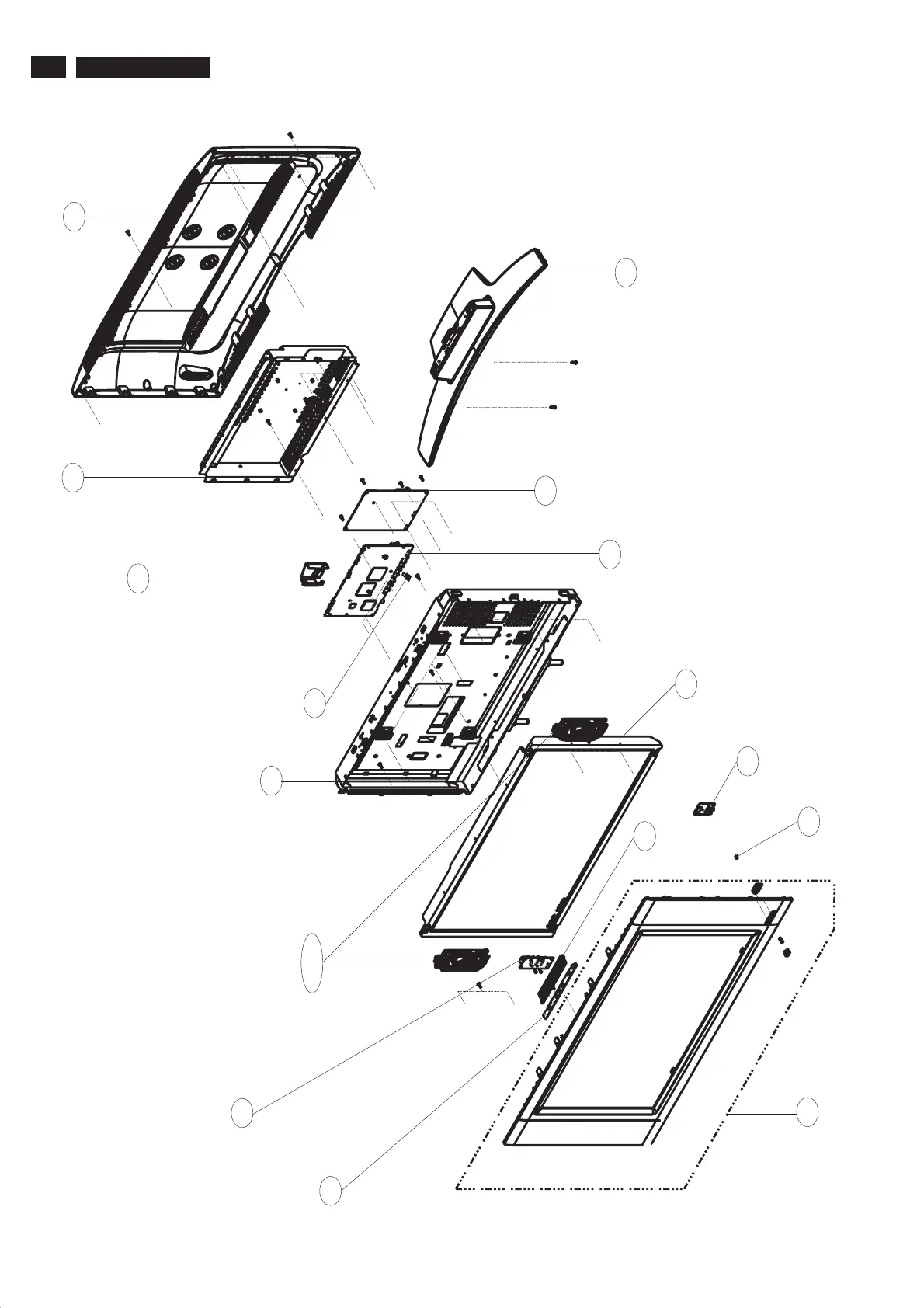

7.2 Exploded View
7. Circuit Diagrams and PWB Layouts
313815417421
BACK COVER
41
313815138041
MAIN SHIELD
90
313815758391
BASE ASSY
7
313815864901
POWER PCB ASSY- FL2 26"
1054
313815864951
SCALER PCB ASSY - Fl2 26"
1053
313815162031
BRACKET-AL
98
313815760751
MAIN FRAME ASSY
301
823827717541
LSP 8R 5W OPN FU1R O57X126Y
1185/1186
823827718991
TFT-LCD MOD QD26HL02 REV.02
1050
313815864921
IR PCB ASSY- FL2 26"
1056
313815417461
CAP
97
313815864911
SIDE AV PCB ASSY - FL2 26"
1055
313815414931
CONTROL BUTTON
91
313815864971
KEY BOARD ASSY - Fl2
1057
313815760741
FRONT BEZEL ASSY
30
313815866211
USB INTERFACE PCB ASSY
1058
