77
TPE1.0U LA
9. Trouble Shooting
9.2 Circuit Description
General Description
This LCD TV monitor using FL-2 platform. It can support TV signal. It's output resolution is up to 1366X768 75Hz for WXGA panel.
It can support NTSC from RF, AV0, AV1, AV2 (CVBS and Y/C), YPbPr and RGB, HDMI (DVI via HDMI) , and also have side I/O , support
CVBS/YC and Headphone for User easy used .
It can also support 640 x 480 @60p, 720 x 240 @60p, 720 x 480 @60i, 720 x 480 @60p, 800 x 600 @60p, 1280 x 720 @60p, 1024 x
768 @60p, 1920 x 1080 @60i format input.
This LCD monitor TV use MST51512 as Scaler engine, which has embedded Analog D-sub, digital DVI decoder, scaling input signal for
panel, OSD and simple 3D de-interlace. The extra SDRAM is to accomplish video frame rate conversion and PIP function.
System Description
System Description
- Signal Flows
1. Audio
2. Video
- Picture Improvement
- Power States

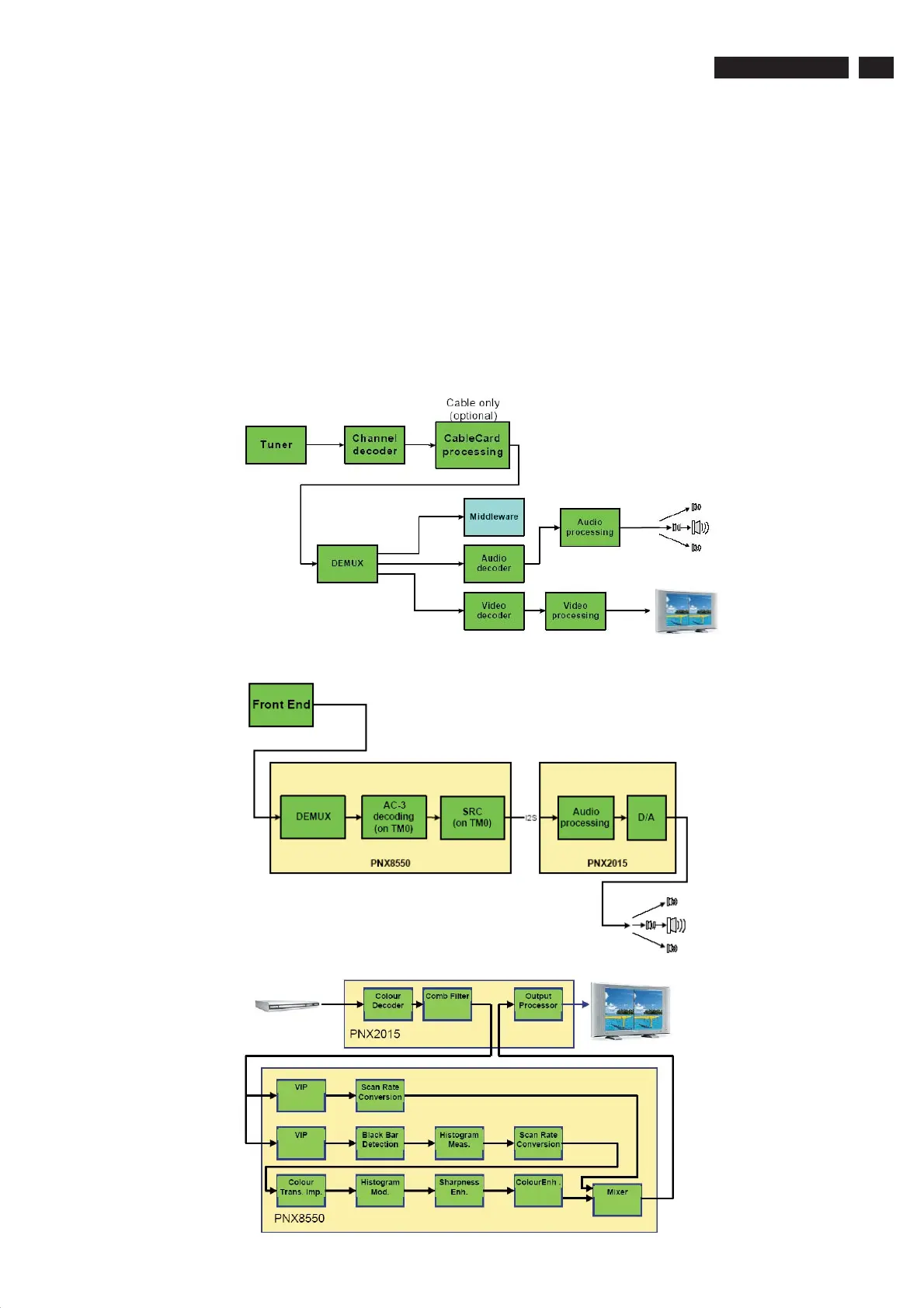

ATSC AV Decoding Path
ATSC Audio Decoding Path
ATSC Video Decoding Path(example)
