Philips 27PS60S321 - Connections Overview

Connections

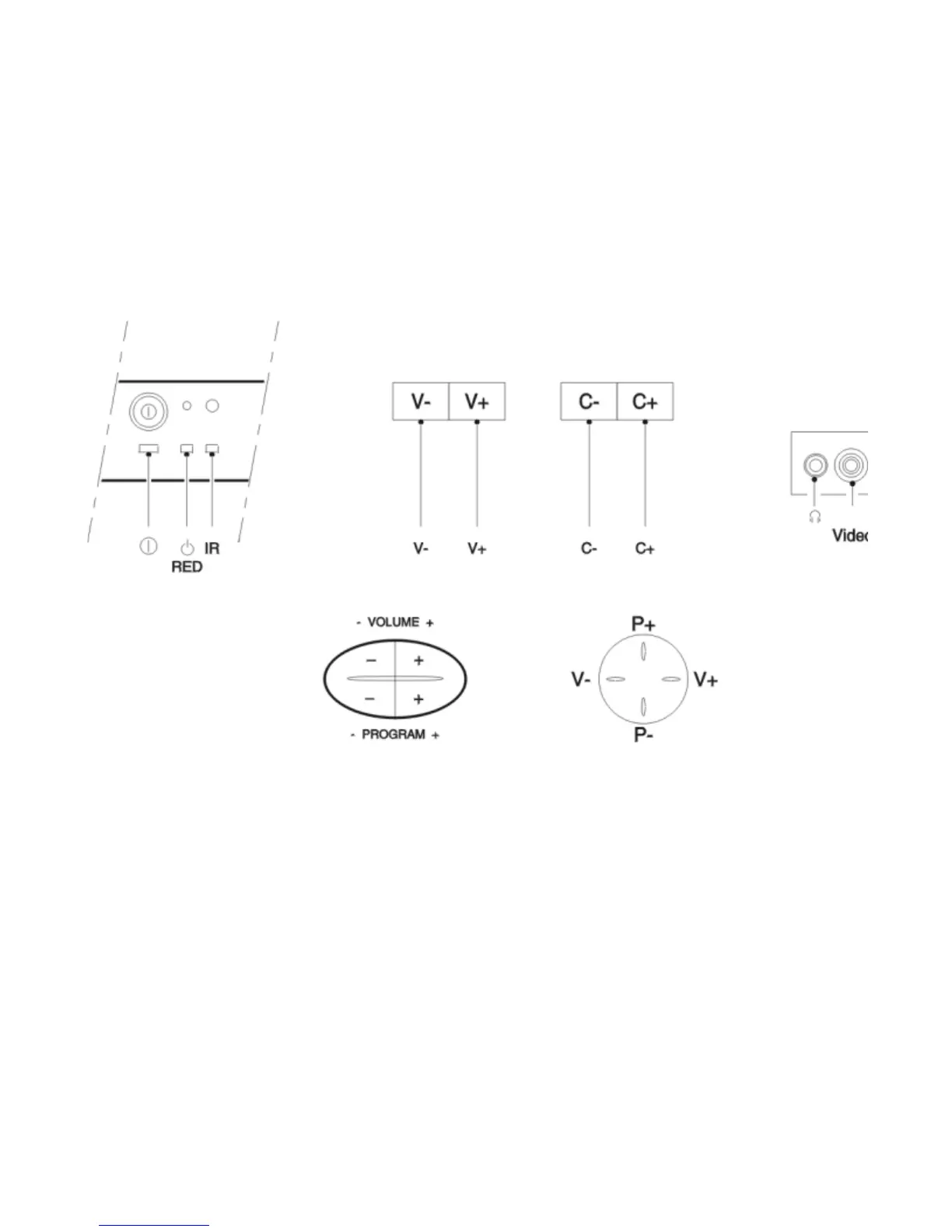

Front Or Top Control, Front Or Side Connections
Figure:
Audio / Video In
z
Standby Power consumption
:
< 3 W
Connector Kind Value Symbol
1
Video 1 Vpp / 75 Ω

2
Audio L (0.2 Vrms / 10 kΩ)

3
Audio R (0.2 Vrms / 10 kΩ)

4
Headphone (3.5
mm)
8 - 600 Ω / 4 mW
!
Pa
g
e 2 of 4SPMS
7/8/2004
