Figure:
Introduction
The microprocessor part of the UOC, has thecomplete control and teletext on board. User
menu, Service DefaultMode, Service Alignment Mode and Customer Service Mode are
generatedby the μP. Communication to other ICs is done via the I
2
C-bus.
I 2 C-Bus

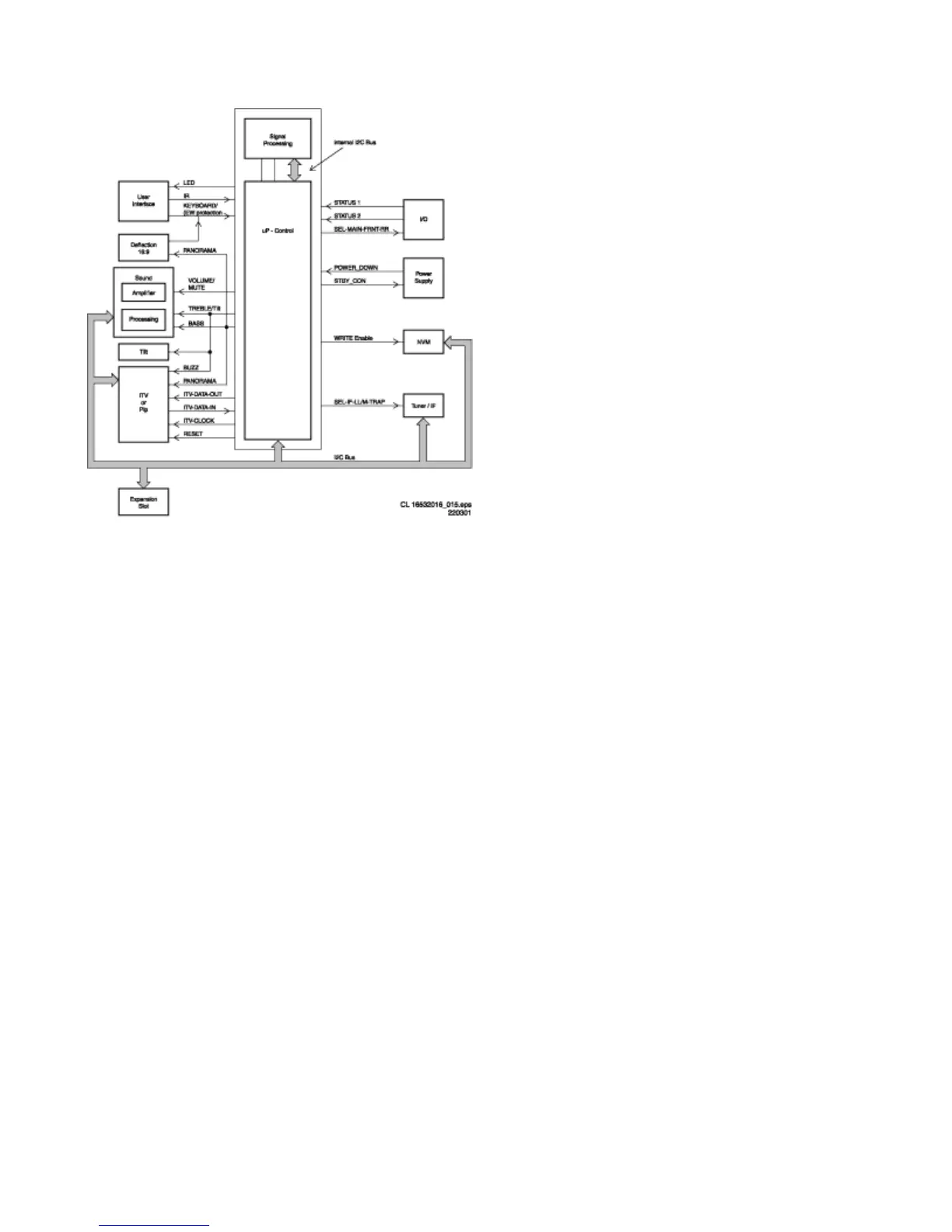

The main control system, which consists ofthe microprocessor part of the UOC (7200), is
linked to the externaldevices (tuner, NVM, MSP, etc) by means of the I
2
C-bus. An internalI
2
C-bus is usedto control other signal processing functions, like video processing,sound IF,
vision IF, synchronization, etc.
User Interface
The S8/T8 uses a remote control withRC5 protocol. The incoming signal is connected to pin 67
of theUOC.
The "Top Control" keyboard, connectedto UOC pin 80, can also control the set. Button
Pa
e 25 of 32SPMS
7/8/2004
