Philips 27PS60S321 - Rear Connections

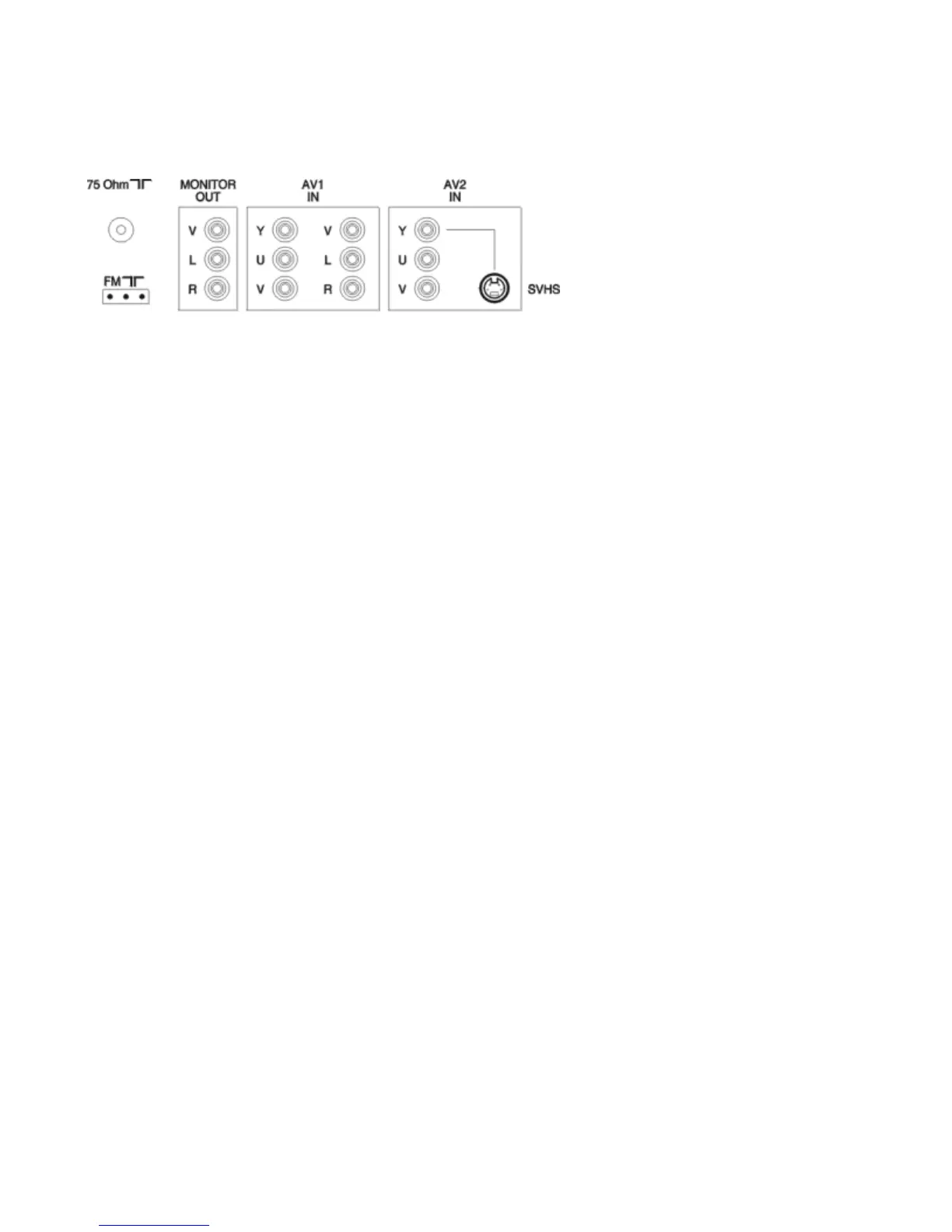

Rear Connections
Figure:
Monitor Out
YUV In
AV1 In
AV2 In
Connector Kind Value Symbol
1
Video 1 Vpp / 75 Ω

2
Audio L (0.5 Vrms / 1 kΩ)

3
Audio R (0.5 Vrms / 1 kΩ)

Connector Kind Value Symbol
1
Y 0.7 Vpp / 75 Ω

2
U 0.7 Vpp / 75 Ω

3
V 0.7 Vpp / 75 Ω

Connector Kind Value Symbol
4
Video 1 Vpp / 75 Ω

5
Audio L (0.5 Vrms / 10 kΩ)

6
Audio R (0.5 Vrms / 10 kΩ)

