Technical Specifications, Directions for Use, and Connections
EN 4 Q522.2HE LA2.
2010-Jun-30
16 - Status/FBL 0 - 0.4 V: INT
1 - 3 V: EXT / 75 Ω j
17 - Ground Video Gnd H
18 - Ground FBL Gnd H
19 - Video CVBS/Y 1 V
PP
/ 75 Ω k
20 - Video CVBS 1 V
PP
/ 75 Ω j
21 - Shield Gnd H
3 - EXT3: Cinch: Video YPbPr - In, Audio - In
Gn - Video Y 1 V
PP
/ 75 Ω jq
Bu - Video Pb 0.7 V
PP
/ 75 Ω jq
Rd - Video Pr 0.7 V
PP
/ 75 Ω jq
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ jq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ jq
4 - Cinch: S/PDIF - Out, Audio - Out (optional)
Bk - Coaxial 0.4 - 0.6V
PP
/ 75 Ω kq
Rd - Audio - R 0.5 V
RMS
/ 10 kΩ kq
Wh - Audio - L 0.5 V
RMS
/ 10 kΩ kq
5 - Service Connector (UART)
1 - Ground Gnd H
2 - UART_TX Transmit k
3 - UART_RX Receive j
6 - HDMI 1, 2, 3: Digital Video, Digital Audio - In

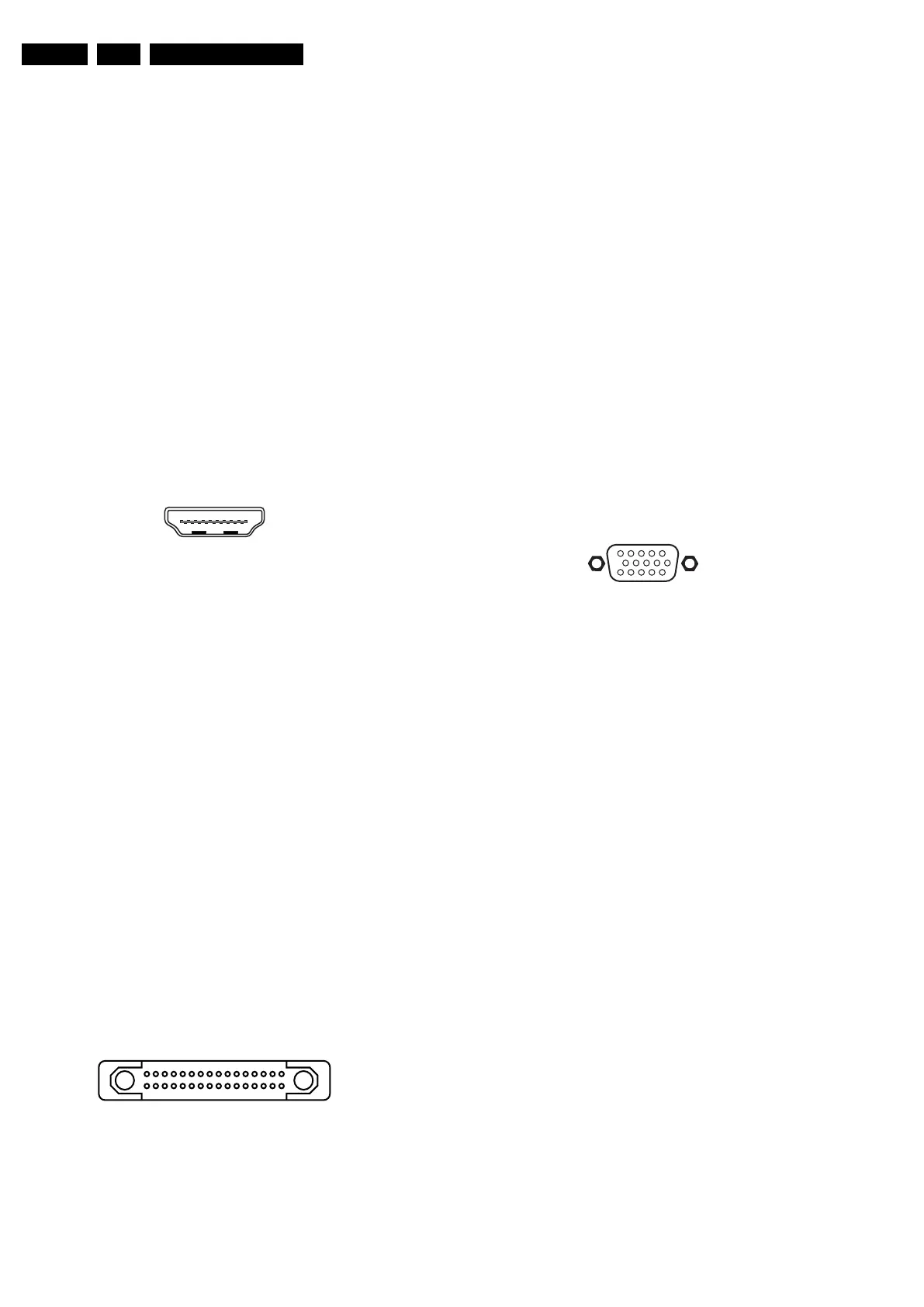

Figure 2-3 HDMI (type A) connector
1 - D2+ Data channel j
2 - Shield Gnd H
3 - D2- Data channel j
4 - D1+ Data channel j
5 - Shield Gnd H
6 - D1- Data channel j
7 - D0+ Data channel j
8 - Shield Gnd H
9 - D0- Data channel j
10 - CLK+ Data channel j
11 - Shield Gnd H
12 - CLK- Data channel j
13 - Easylink/CEC Control channel jk
14 - n.c.
15 - DDC_SCL DDC clock j
16 - DDC_SDA DDC data jk
17 - Ground Gnd H
18 -+5V j
19 - HPD Hot Plug Detect j
20 - Ground Gnd H
7 - Mini Jack: Audio - In
Bk - Audio 0.5 V
RMS
/ 10 kΩ jq
8 - Aerial - In
- - IEC-type (EU) Coax, 75 Ω D
9 - Smart-card Interface: Data Video - In/Out (optional)
Figure 2-4 Smart-card Connector
1 - 3V3 +3.3 V k
2 - Ground power Gnd H
3 - 12V +12 V j
4 - Ground I
2
C Gnd H
5 - IR data Data j
6 - POR Signal j
7 - TV Clock Clock Signal k
8 - Data in Data j
9 - Data out Data k
10 - +5V +5 V j
11 - H-sync Signal j
12 - V-sync Signal j
13 - Gnd CVBS in Gnd H
14 - SCL DDC clock j
15 - SDA DDC data j
16 - Reserve
17 - B in Blue in Signal j
18 - G in Green in Signal j
19 - R in Red in Signal j
20 - FBL in Signal j
21 - Gnd CVBS out Gnd H
22 - CVBS out 1 V
PP
/ 75 Ω j
23 - Pr_OUT 1 V
PP
/ 75 Ω k
24 - Pb_OUT 1 V
PP
/ 75 Ω k
25 - Y_OUT 1 V
PP
/ 75 Ω k
26 - Gnd Audio in Gnd H
27 - Audio R 0.5 V
RMS
/ 1 kΩ k
28 - Audio L 0.5 V
RMS
/ 1 kΩ k
29 - Audio R 0.5 V
RMS
/ 10 kΩ j
30 - Audio L/Mono in 0.5 V
RMS
/ 10 kΩ j
31 - Video CVBS/Yin 1 V
PP
/ 75 Ω j
32 - C in 0.7 V
PP
/ 75 Ω j
10 - VGA: Video RGB - In (optional)
Figure 2-5 VGA Connector
1 - Video Red 0.7 V
PP
/ 75 Ω j
2 - Video Green 0.7 V
PP
/ 75 Ω j
3 - Video Blue 0.7 V
PP
/ 75 Ω j
4-n.c.
5 - Ground Gnd H
6 - Ground Red Gnd H
7 - Ground Green Gnd H
8 - Ground Blue Gnd H
9-+5V
DC
+5 V j
10 - Ground Sync Gnd H
11 - n.c.
12 - DDC_SDA DDC data j
13 - H-sync 0 - 5 V j
14 - V-sync 0 - 5 V j
15 - DDC_SCL DDC clock j
11 - RJ12 DATA1 (HM-Link - In/Out) (optional)
1 - LED_in < 0.3 V, active low j
2 - IR_in < 0.3 V, active low j
3-MODE Vcc j
4 - TV Power Status 4.5 to 5 V: TV “On”
< 0.3 V: TV “Stdby”
High impedance: TV “Off” k
5 - Gnd Gnd H
6 - IR_out Signal k
12 - RJ45 DATA2 (Xpress Box - In/Out) (optional)
1 - +12V +12V/1W k
2 - Gnd Gnd H
3 - H-sync Signal k
4 - V-sync Signal k
5 - TXD232 Signal
6 - RXD232 Signal
7 - SDA3_IR-OUT Signal k
8 - DCM-POR Signal k
9 - CVBSterr Signal k
10 - Gnd CVBSterr Gnd H
10000_017_090121.eps
090428
19
1
18 2
1
17
16
32
10000_044_090121.eps
090121
1
6
10
11
5
15
10000_002_090121.eps
090127
To Next Page
