Technical Specifications, Directions for Use, and Connections
EN 5Q522.2HE LA 2.
2010-Jun-30
13 - Mini Jack: Bathroom speaker (Output) (optional)
Bk - Bathroom speaker 8 Ω / 1 W o
2.3.2 Side Connections
14 - Mini Jack: Headphone (Output) (sets with Smart Card
Interface)
Bk - Head phone 32 - 600 Ω / 10 mW ot
14 - Mini Jack: IRLink (In/Out) (sets without Smart Card
Interface)
1 - IR_in < 3.3 V, active low j
2 - IR_out Signal (output high when idle) k
3 - Gnd Gnd H
15 - Cinch: Audio - In
Rd - Audio R 0.5 V
RMS
/ 10 kΩ jq
Wh - Audio L 0.5 V
RMS
/ 10 kΩ jq
16 - Cinch: Video CVBS - In
Ye - Video CVBS 1 V
PP
/ 75 Ω jq
17 - S-Video (Hosiden): Video Y/C - In
1 - Ground Y Gnd H
2 - Ground C Gnd H
3 - Video Y 1 V
PP
/ 75 Ω j
4 - Video C 0.3 V
PP
/ 75 Ω j
18 - USB2.0

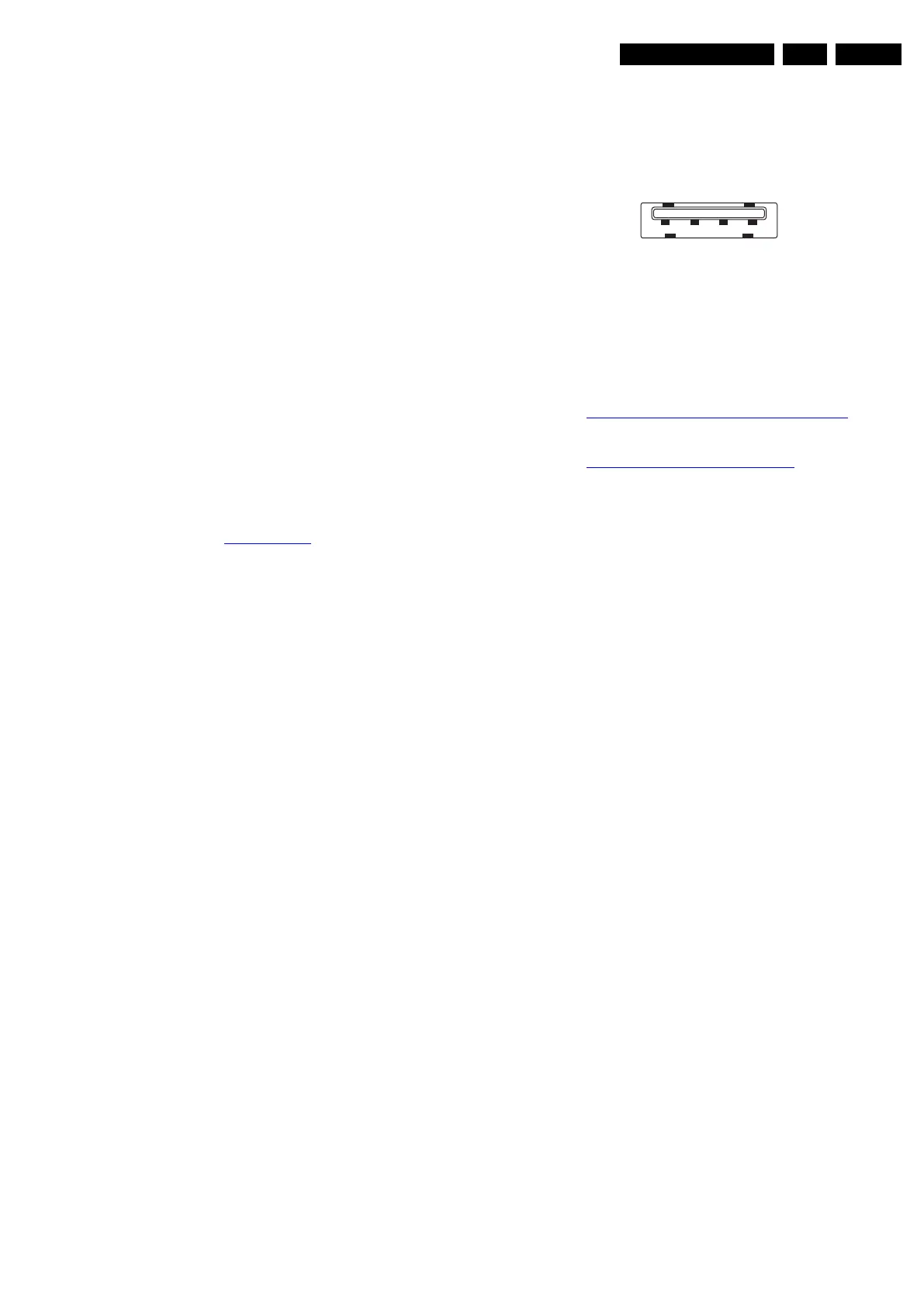

Figure 2-6 USB (type A)
1-+5V k
2 - Data (-) jk
3 - Data (+) jk
4 - Ground Gnd H
19 - HDMI: Digital Video, Digital Audio - In
See 6 - HDMI 1, 2, 3: Digital Video, Digital Audio - In
20 - Common Interface
See SSB: Digi IO: PCMCIA Interf. & Buffer
2.4 Chassis Overview
Refer to chapter Block Diagrams for PWB/CBA locations.
