Mechanical Instructions
EN 10 L11M1.1L LA4.
2011-Jun-24
back to
div. table
4. Mechanical Instructions
Index of this chapter:
4.1 Cable Dressing
4.2 Service Positions
4.3 Assy/Panel Removal (Thriller styling; xxPFL3x06D/xx)
4.4 Assy/Panel Removal (Berlinale styling; xxPFL5x06D/xx)
4.5 Set Re-assembly
Notes:
• Figures below can deviate slightly from the actual situation,
due to the different set executions.
4.1 Cable Dressing

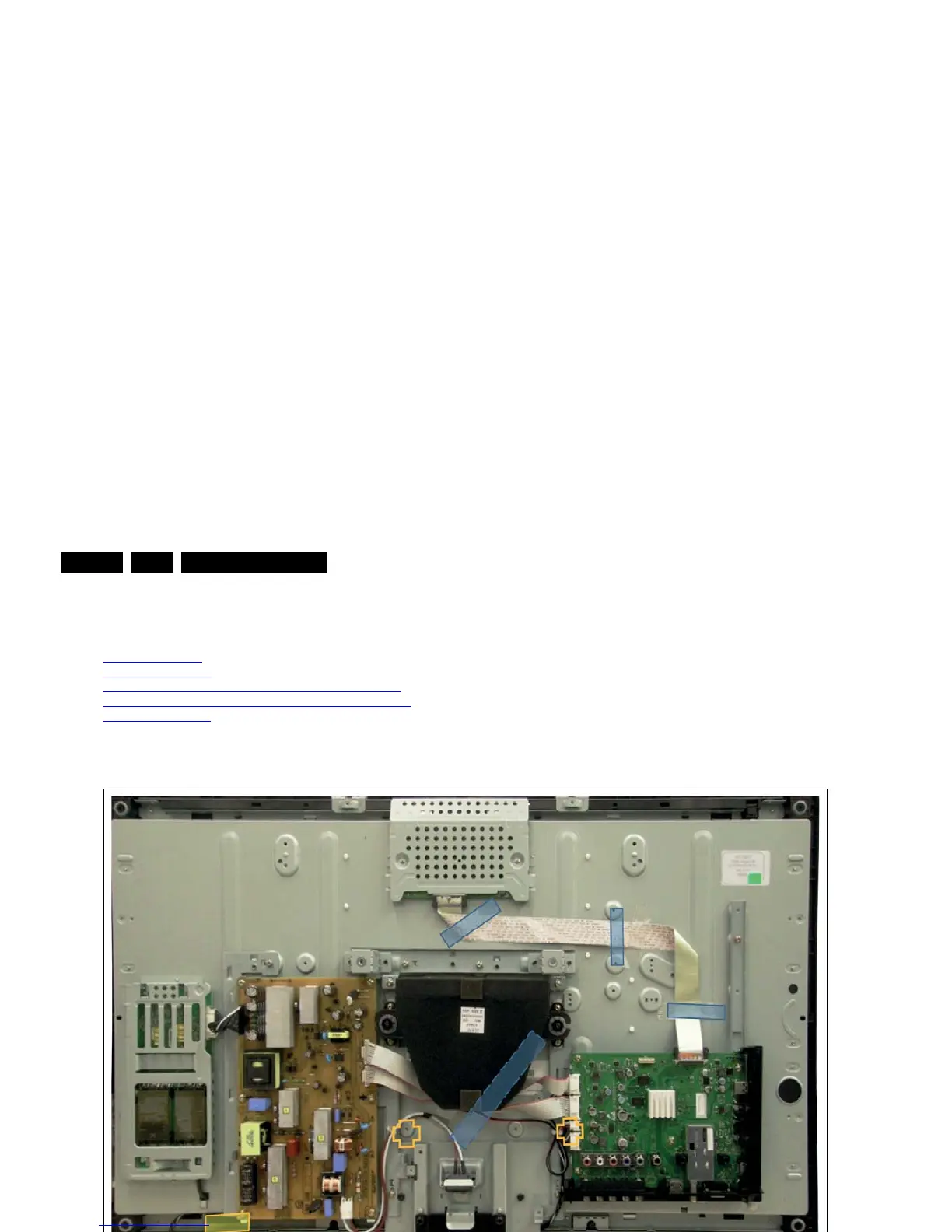

Figure 4-1 Cable dressing 32" Thriller (xxPFL3x06D/xx)
19130_002_110421.eps
110421
