Philips 32PFL3406D/78 - Wiring Diagram 32 (Berlinale)

Block Diagrams
EN 47L11M1.1L LA 9.
2011-Jun-24
back to
div. table

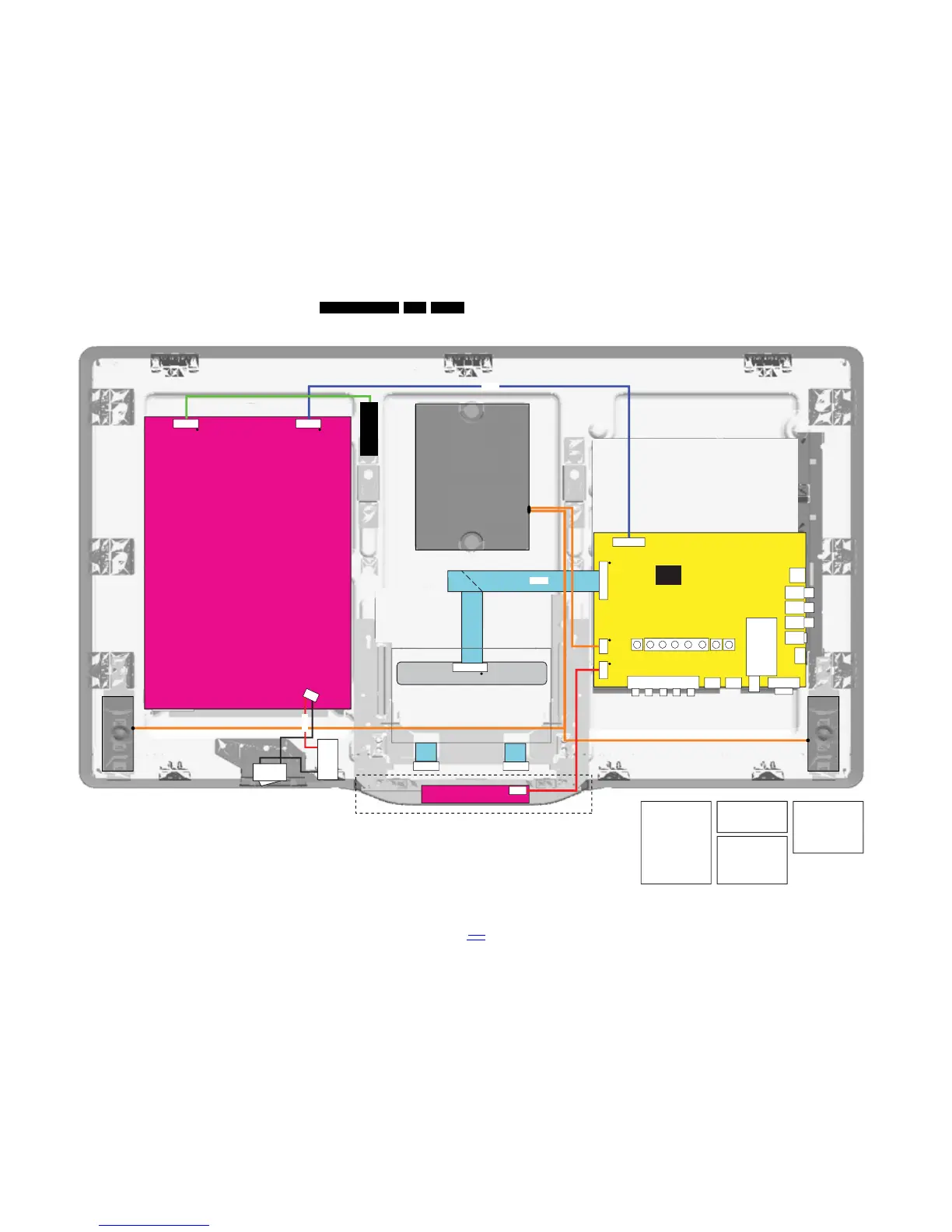

9-3 Wiring Diagram 32" (Berlinale)
LCD DISPLAY
(1004)
MAIN POWER SUPPLY
32
" PLDC-P015A
(1005)
LOUDSPEAKER
(5213)
LOUDSPEAKER
(5216)
LOUDSPEAKER
(5216)
1M20
8P
1D38
3P
1M95
14P
USB
HDMIHDMI
VGA
1316
10P
1M95
14P
MAINS
SWITCH
(8308)
INLET
8M95
19130_053_110616.eps
110616
TO DISPLAY
51P
C2 C1
IR/LED/CONTROL BOARD
(1108)
J1
8P
WIRING DIAGRAM 32" BERLINALE
1M20 (B04C)
1. LIGHT-SENSOR
2. GND
3. RC
4. LED-2
5. +3V3STBY
6. LED-1
7. KEYBOARD
8. +5V_SW
1735 (B03A)
1. LEFT-SPEAKER
2. GND-AUDIO
3. GND-AUDIO
4. RIGHT-SPEAKER
1D38 (B03)
1. LEFT_SPEAKER
2. GND-AUDIO
3. RIGHT_SPEAKER
1M95 (B01)
1. +3V3STBY
2. STANDBY
3. GND
4. GND
5. +12VS
6. +12VS
7. +24VAUDIO
8. GND
9. LAMP-ON
10. BACKLIGHT-PWM
11. BACKLIGHT-BOOST
12. POWER-OK
13. N. C.
14. GND
1G51 (B06B)
1. +VDISP-INT
2. +VDISP-INT
3. +VDISP-INT
4. +VDISP-INT
|
|
51. GND
TO DISPLAY
SUPPLY
8308
1G51
51P
2P
1308
TUNER
8G51
SSB
3139 123 6523.x
(1150)
B
LEADING EDGE
HDMI
