Circuit Descriptions
EN 29L11M1.1L LA 7.
2011-Jun-24
back to
div. table

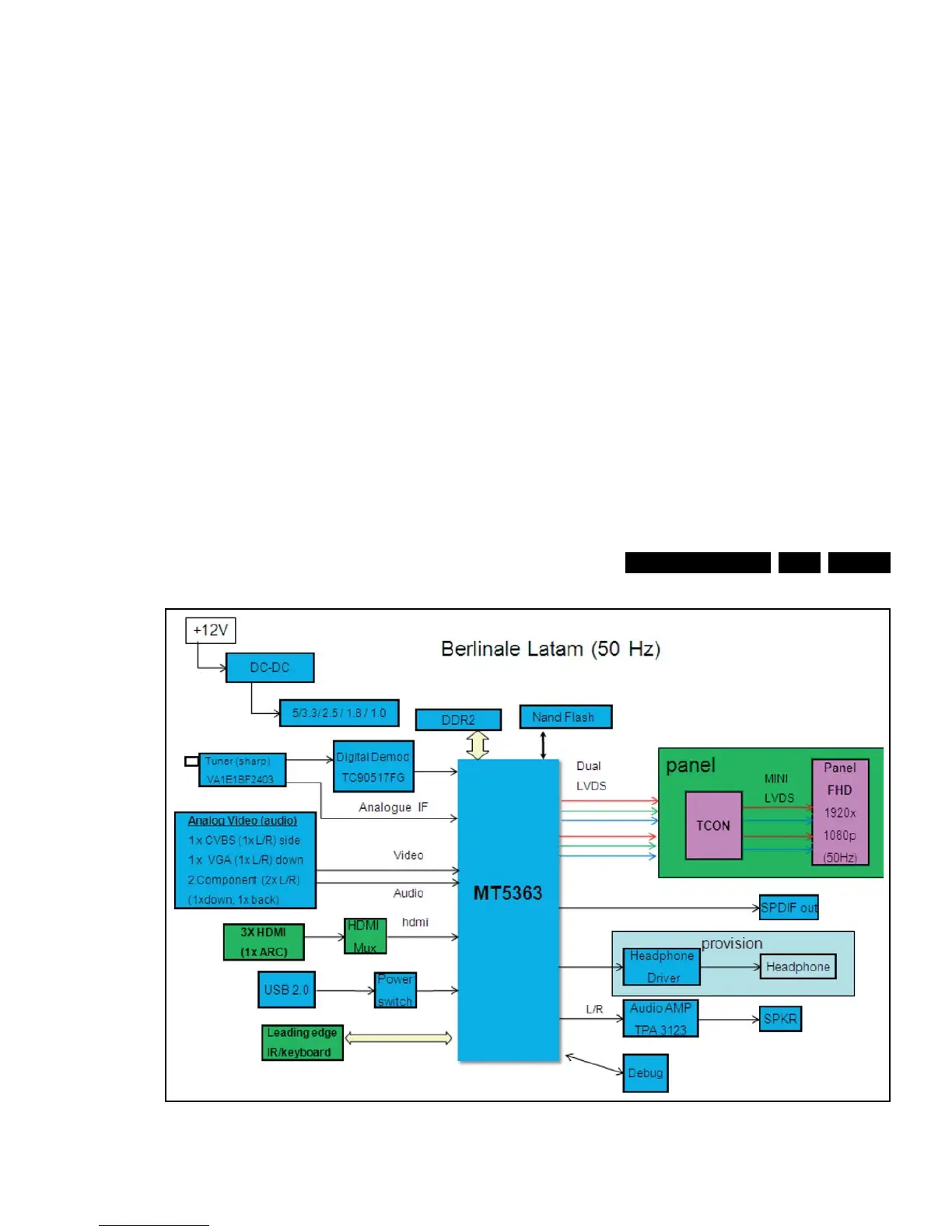

Figure 7-2 L11M1.1L LA Architecture Berlinale (xxPFL5x06D/xx)
19131_022_110623.eps
110623
